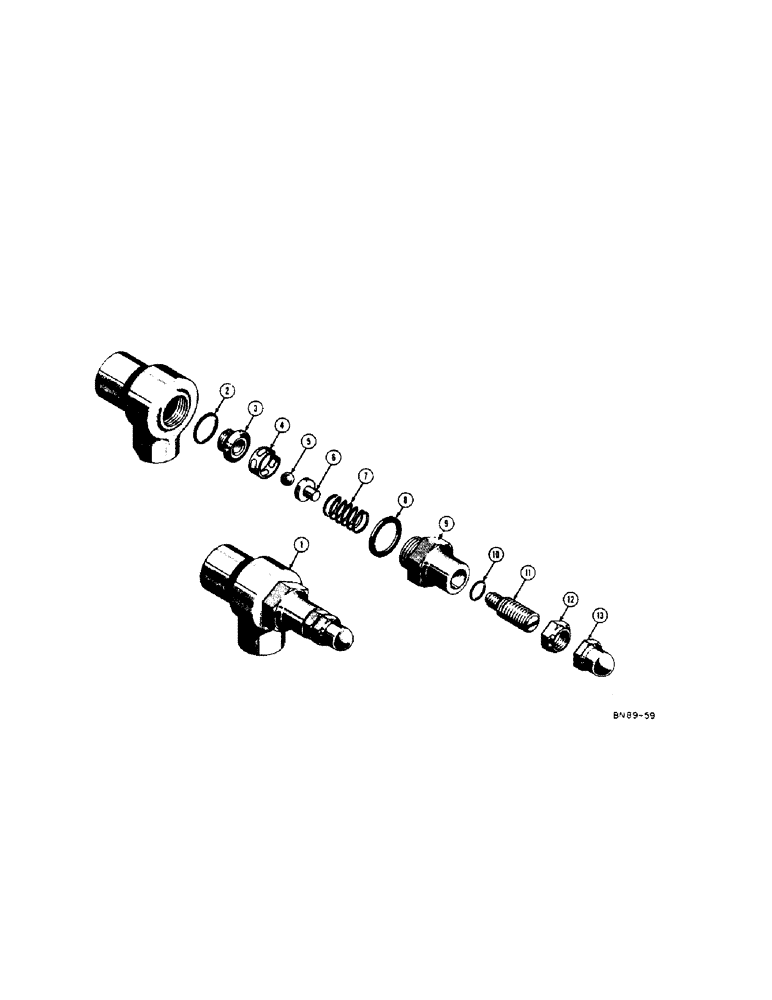

Запчасти Case 500 (288) - 33959 SPECIAL RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

NLS

NO LONGER SERVICED

VALVE - special relief

1шт.

2

A11027

GASKET

"O" RING - seal

1шт.

3

D24406

SEAT

- valve

1шт.

4

O7210AB

X

BALL - relief

1шт.

5

D24389

COLLAR - jam

1шт.

6

635785R1

SPACER

- spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

663029R1

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

"O" RING - seal

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex. jam

1шт.

13

34109

NUT - acorn

1шт.
