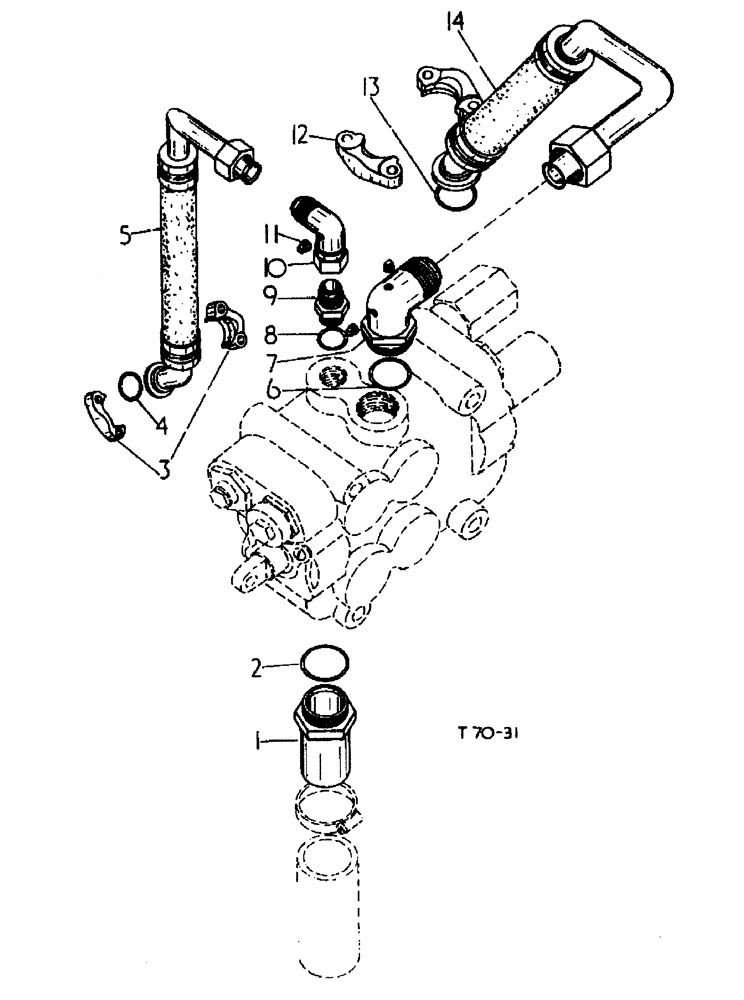

Запчасти Case 500 (07-016) - TRANSMISSION LINES -PUMP TO No Description

1

187004H2

FITTING, return line hydraulic valve

1шт.

2

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1.720 x .118 thick

1шт.

3

283172R1

TERMINAL CONNECTOR

CLAMP flange coupling, 3/4

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

4

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

5

3065518R92

HOSE

ASSY., small, pump valve, high pressure

1шт.

6

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1.475 x .118 thick

1шт.

7

3065513R1

ELBOW

adjustable, flared tube

1шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

.924 x .116 thick

1шт.

9

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

short swivel, 37 deg.

1шт.

10

3065516R91

ELBOW

swivel, flared tube, 90 deg.

1шт.

11

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

pipe, square head, 1/8 NPTF

3шт.

12

290045R1

FLANGE

flange coupling

2шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

hex head, 7/16 x 1-3/8

4шт.

103322

LOCK WASHER,7/16"

4шт.

13

343909R1

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1-1/2 x 1-3/4 x 1/8

1шт.

14

3065514R91

HOSE

ASSY., large, pump valve

1шт.
