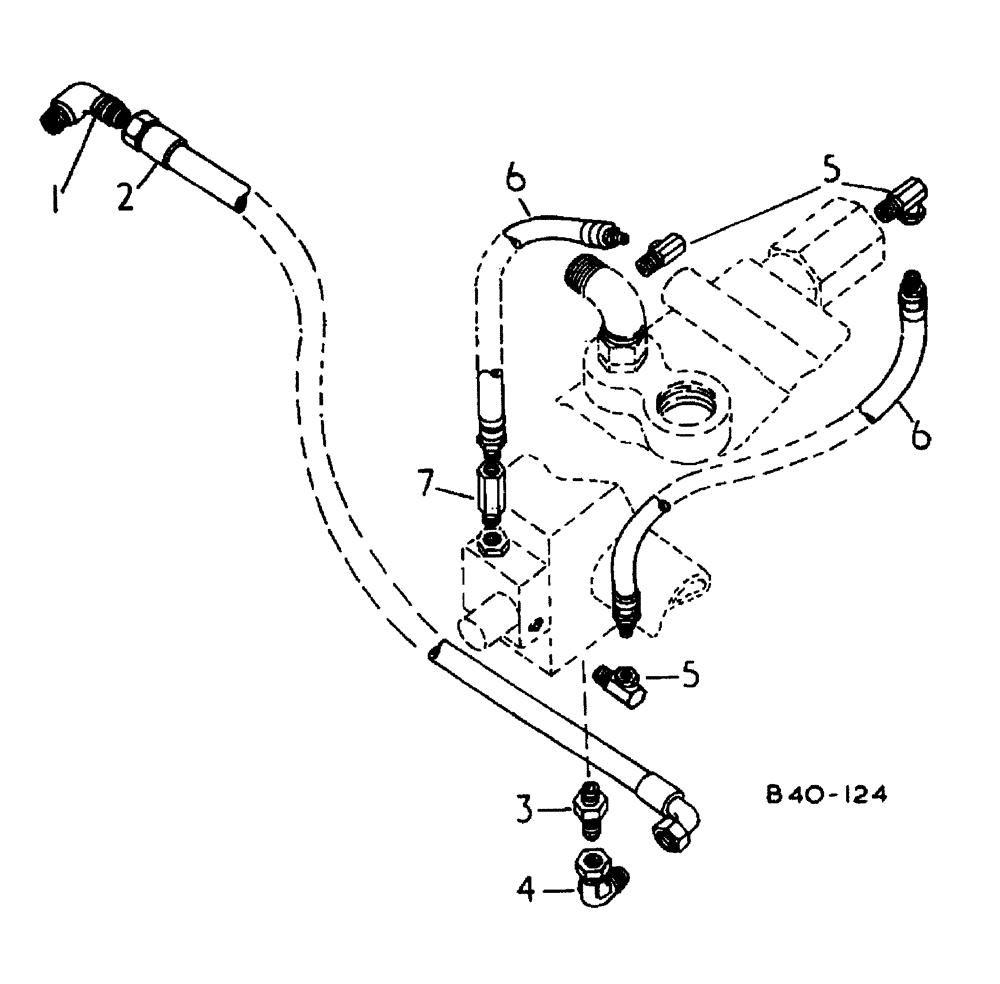

Запчасти Case 500 (07-014) - TRANSMISSION LINES - 500/1283 No Description

1

3120107R1

ELBOW

7/16 x 9/16-18 JIC

1шт.

2

3120647R91

VALVE

ASSY., rotary for components, see list of parts under detail

1шт.

61-32528

HEX SOC SCREW,1/4"-20 x 1 3/4"

2шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

4

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

1/4 BOSS x 9/16-18 JIC

1шт.

5

289862R1

STRAP cable lock

2шт.

6

3114576R1

SPARE PART CPTE.

1шт.

7

703952R2

SPACER

1шт.

8

3349887R1

CLAMP pipe

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

9

3120106R91

HOSE

ASSY.

1шт.

10

3120971R91

HOSE

ASSY.

1шт.

11

9411117

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

adjustable, 37 deg.

1шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

3/8 swivel, 37 deg.

1шт.

14

610082R1

SPARE PART CONNECTOR, 1/8 NPT x 9/16-18 JIC

1шт.

15

200076H1

FILTER

CPTE.

1шт.

16

3065517R91

HOSE

SPARE PART ASSY.

1шт.

17

3120108R91

HOSE

ASSY.

1шт.

18

613532R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

1/8 NPTx 9/16-18 JIC

1шт.

19

3065515R91

ADAPTER

1шт.

20

3120105R91

HOSE

ASSY.

1шт.

21

585649R1

ELBOW, 90 deg., 1/8 NPT 9/16-18 JIC

1шт.

22

3124531R1

GASKET

1шт.
