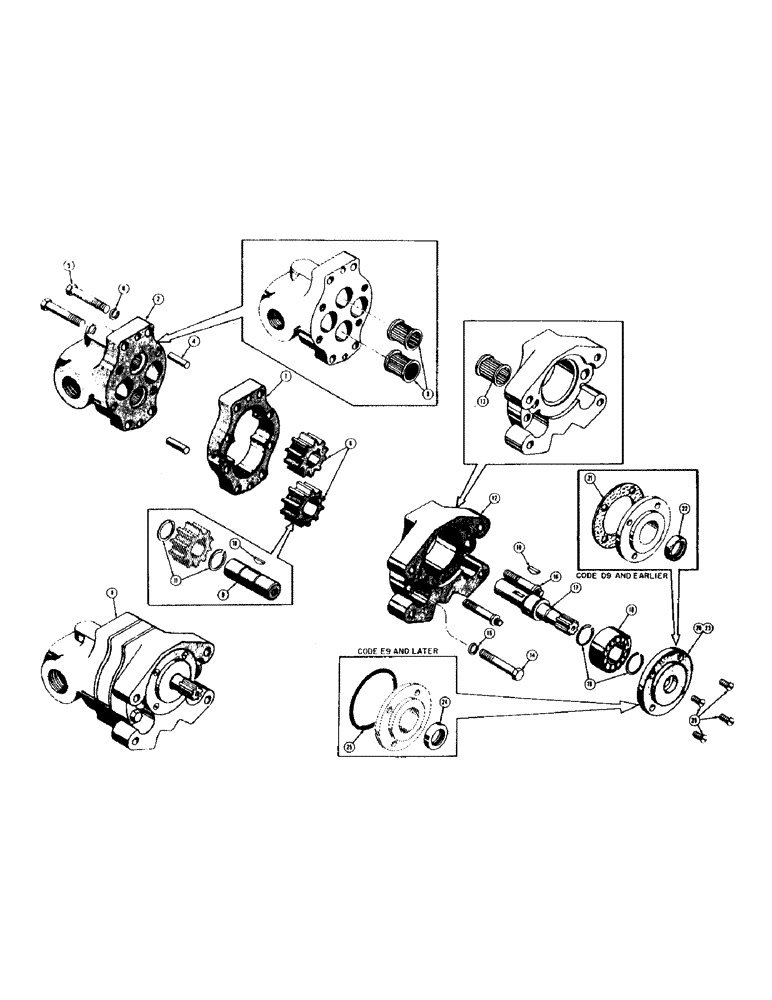

Запчасти Case 500 (186) - 31614 HYDRAULIC PUMP (19 G.P.M.) (07) - HYDRAULIC SYSTEM

1

31614

PUMP - hydraulic (Webster #2HES1-L)

1шт.

Service is provided on component parts only - for a replacement pump, use D21319 or D26066.

1шт.

2

34533

COVER - front

1шт.

3

F62086

NEEDLE BEARING,Needle, 25.4mm ID x 33.34mm OD x 25.4mm W

BEARING - needle

2шт.

4

34536

PIN - dowel, Serial Range: body-cover

2шт.

5

13-838

BOLT,Hex, 1/2" - 13 x 2-3/8", Gr 5

HHCS - 1/2 - 13 NC x 2-3/8

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

34534

CAM

PLATE - gear

1шт.

8

5446

GEAR-SET

GEARS - set of, drive and driven

1шт.

9

126623A1

TOOL ASSY.

SHAFT - driven gear

1шт.

10

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Drive and driven gears #9, 3/16" x 3/4"

2шт.

11

O4105CH

SNAP RING - driven gear

2шт.

12

34535

X

BODY - pump (Code D9 and earlier pumps only) (Use R16373, R16375, and D24053)

1шт.

13

F62086

NEEDLE BEARING,Needle, 25.4mm ID x 33.34mm OD x 25.4mm W

BEARING - needle

1шт.

12

R16373

BODY - pump (Code E9 and later pumps only)

1шт.

13

F62086

NEEDLE BEARING,Needle, 25.4mm ID x 33.34mm OD x 25.4mm W

BEARING - needle

1шт.

14

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2 - 13 NC x 2-1/2

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

34486

PIPE FITTING

SCREW - counterbore, special (1/2 - 13 NC x 2-3/4)

2шт.

17

NLS

NO LONGER SERVICED

SHAFT - pump drive

1шт.

18

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball, drive shaft

1шт.

19

34488

RING, SNAP

SNAP RING - bearing retaining

2шт.

20

34489

PLATE - pilot (Code D9 and earlier pumps only) (Use R16375)

1шт.

21

34490

SPRING

GASKET - pilot plate

1шт.

22

40642

RICE TOOTH

SEAL - oil, drive shaft

1шт.

23

R16375

PLATE - pilot (Code E9 an dlater pumps only)

1шт.

24

D24047

SEAL

- oil, drive shaft

1шт.

25

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

Seal, pilot plate (Code E9 and later pumps only) -143, 90 Duro, 2.425" ID x .103" Thk

1шт.

26

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- machine, flat head (1/4 - 20 NC x 1-1/2)

4шт.
