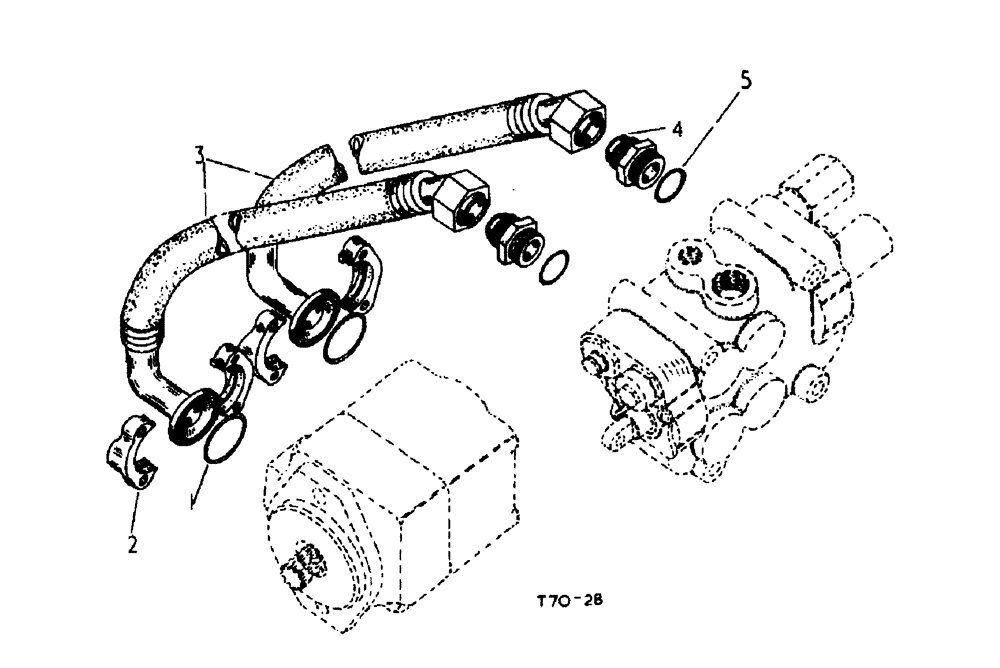

Запчасти Case 500 (07-008) - TRANSMISSION LINES - VALVE TO No Description

1

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8

2шт.

2

215014H1

SPARE PART

CLAMP flange coupling

4шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

103323

LOCK WASHER,1/2"

8шт.

3

3114559R1

SPARE PART

HOSE ASSY., Serial Range: valve-motors

2шт.

4

570180

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

short swivel, 37 deg.

2шт.

5

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1.475 x .118 thick

2шт.
