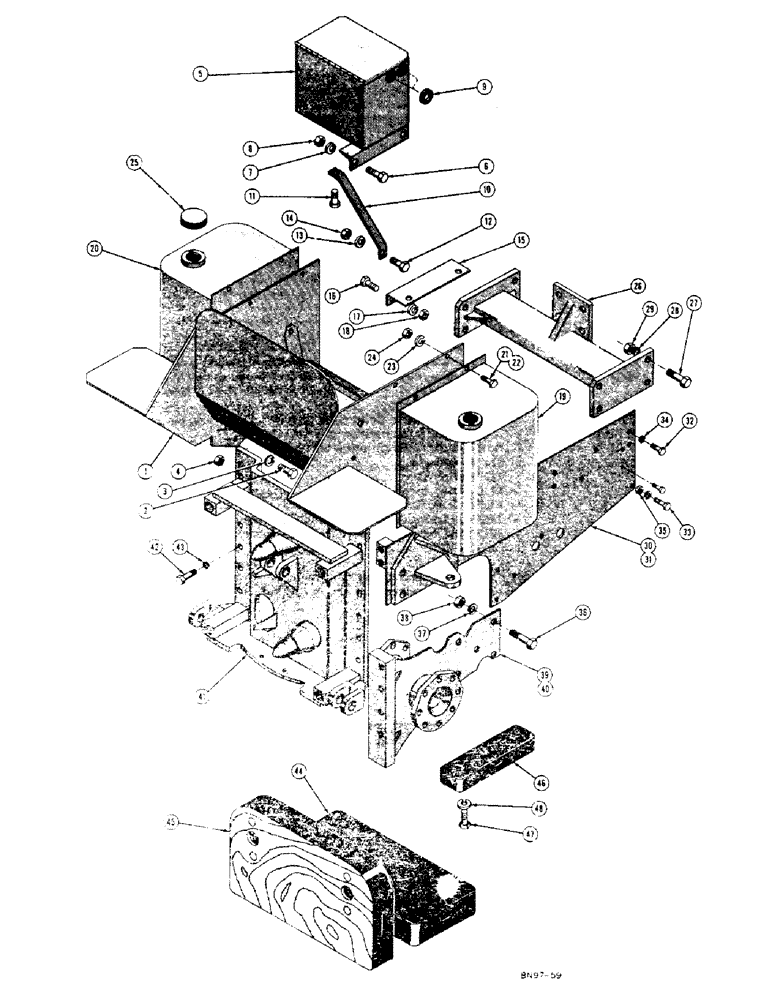

Запчасти Case 500 (260) - TRACTOR MODIFICATION PARTS (05) - UPPERSTRUCTURE CHASSIS

1

NLS

NO LONGER SERVICED

SEAT - backhoe tractor

1шт.

2

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

129-125

NUT,1/2"-20, G5

3шт.

5

37577

DEFLECTOR

BOX - battery, L.H.

1шт.

37580

BOX - battery, R.H.

1шт.

6

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

129-125

NUT,1/2"-20, G5

4шт.

9

49567

GROMMET

- rubber

2-4шт.

10

35670

O-RING,37.85mm ID x 5.28mm Width

BRACE - box, battery

1-2шт.

11

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

1-2шт.

12

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

HHCS - 3/8 - 24 NF x 1-1/4

1-2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2-4шт.

14

129-123

NUT,3/8"-24, G5

2-4шт.

15

35358

BRACKET - arm rest

2шт.

16

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

129-123

NUT,3/8"-24, G5

4шт.

19

34806

GUIDE

TANK - fuel, R.H.

1шт.

20

34807

TANK - fuel, L.H.

1шт.

21

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

8шт.

22

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

24

129-123

NUT,3/8"-24, G5

10шт.

25

CASE10731

FILLER CAP

CAP - filler, fuel tank

2шт.

26

36243

RIVET

STIFFENER - fender side plate (400 models only)

1шт.

34914

STIFFENER - fender side plate (500 models only)

1шт.

27

114-715

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

Hex, 3/4"-16 x 2 1/2", G5

8шт.

28

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

29

425-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

8шт.

30

35001

PLATE - fender side, R.H.

1шт.

31

35002

PLATE - fender side, L.H.

1шт.

32

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

3шт.

33

414-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

1шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

35

129-125

NUT,1/2"-20, G5

4шт.

36

414-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

HHCS - 5/8 - 18 NF x 2

4шт.

37

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

38

425-1110

NUT,5/8"-18, G5

4шт.

39

34918

SPACER - final drive, R.H.

1шт.

40

34919

SPACER - final drive, L.H.

1шт.

41

34753

PLATE - mounting, backhoe

1шт.

42

414-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

HHCS - 5/8 - 18 NF x 2-1/4

12шт.

43

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

44

D36612

CUSHION

- seat

1шт.

45

NLS

NO LONGER SERVICED

CUSHION - back

1шт.

46

D27693

ARMREST

CUSHION - arm rest

2шт.

47

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
