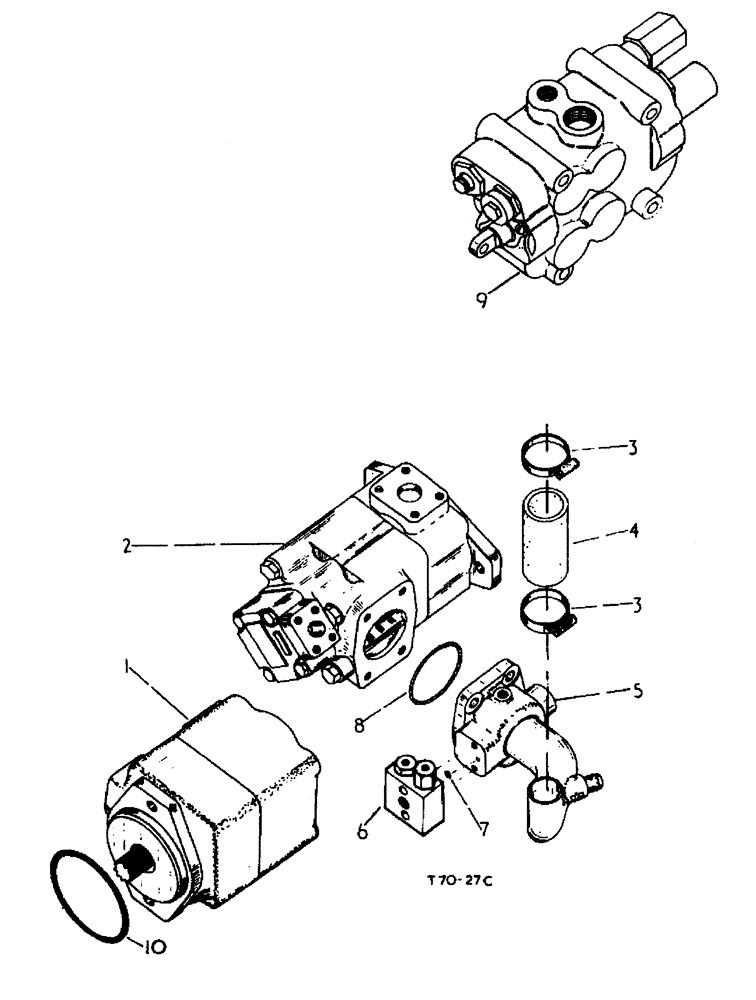

Запчасти Case 500 (07-002) - TRANSMISSION No Description

1

875494C92

MOTOR, HYDRAULIC

for components, see list of parts under details of transmission hydraulic motor

1шт.

426-1030

BOLT,Hex, 5/8" - 11 x 1-7/8", Gr 8

hex head, 5/8 UNF x 1-1/2

2шт.

2

187019H4

PUMP

hydraulic, for components, see list of parts under details of transmission hydraulic pump

1шт.

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

hex head, 5/8 UNF x 1-1/2

2шт.

3

3025291R91

CLIP

worm drive, for 2-1/2 O.D. hose

2шт.

4

187005H2

HOSE

return line

1шт.

5

3067392R11

MANIFOLD

ASSY.

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

hex head, 5/8 x 1-1/2

4шт.

492-11062

BEARING WASHER,5/8"

4шт.

6

3068412R93

SWITCH

VALVE ASSY., solenoid for components , see list of parts under details solenoid

1шт.

21110R1

HEX SOC SCREW,5/16"-18 x 1 3/4"

5/16 x 1-3/4 socket head, up to 500/1282

2шт.

6

928725C92

REGULATOR ASSY., flow and disonnect, for components, see list of parts under details regulator flow and disconnect

1шт.

21040R1

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16 x 1-1/4 socket head, 500/1283 up

2шт.

7

375271R1

O-RING,0.426" ID x 0.07" Width

.426 x .070, up to 500/1282

1шт.

7

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 x 3/32, 500/1283 up

1шт.

8

285724R1

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

3-3/8 x 3-5/8 O.D., class 5

1шт.

9

187039H7

SPARE PART

VALVE transmission control, for components, see list of parts under details transmission control valve

1шт.

113-1092

hex head, 5/8 UNF x 5-3/4

3шт.

10

3042934R1

O-RING,0.275" Thk x 5" ID, -429, Cl 5, 70 Duro

1шт.
