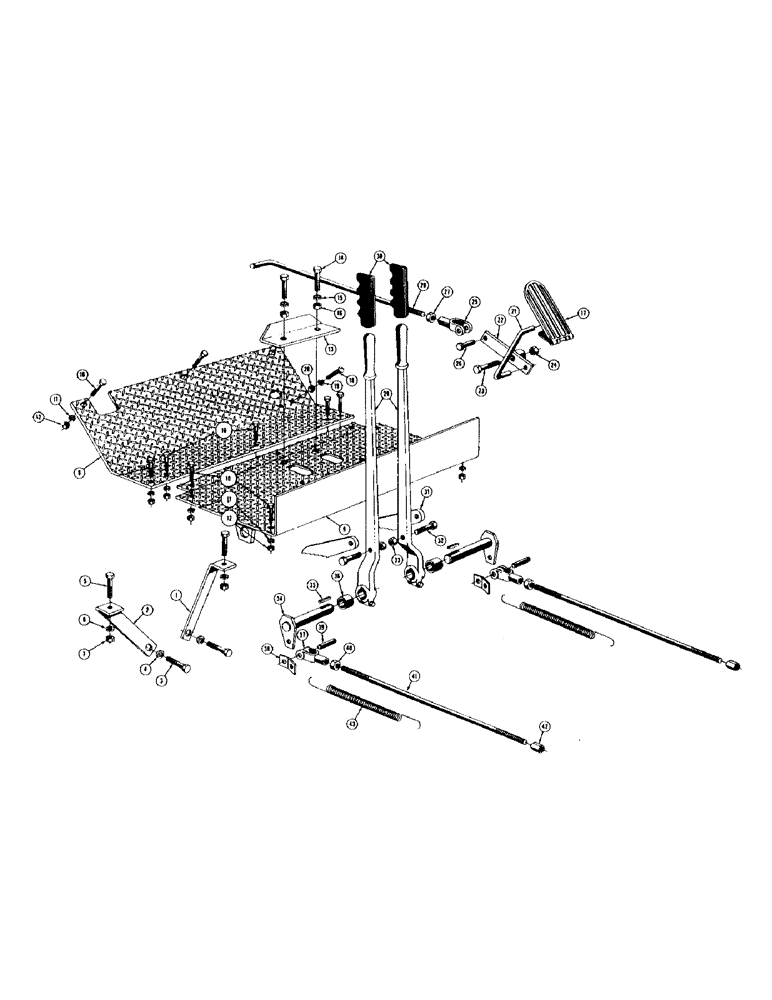

Запчасти Case 500 (140) - FLOOR PLATE, STEERING LEVERS & LINKAGE, (500 MODELS ONLY - USED UP TO S/N 3000180) (05) - UPPERSTRUCTURE CHASSIS

1

33605

EXHAUST MANIFOLD

BRACE - floor plate R.H.

1шт.

2

33606

BRACE - floor plate L.H.

1шт.

3

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

HHCS - 5/8 - 11NC x 1-1/4

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

129-123

NUT,3/8"-24, G5

2шт.

8

31057

PLATE - floor, front

1шт.

9

31067

PLATE - floor, rear

1шт.

10

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

12шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

12

129-123

NUT,3/8"-24, G5

12шт.

13

33598

PLATE - ratchet

1шт.

14

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20NF x 1-1/4

2шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16

129-125

NUT,1/2"-20, G5

2шт.

17

31267

PEDAL - accelerator (Used on all 1956 models and later)

1шт.

18

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

RHMS - #10 - 24NC x 3/4

2шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

225-14110

NUT,#10-24

2шт.

21

32226

DECAL

ROD - connecting (Used on all 1956 models and later)

1шт.

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), (Not shown) 3/32" x 3/4"

2шт.

22

32774

CRANK - reversing (Used on all 1956 models up to serial #3003033)

1шт.

23

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24NF x 1-1/2

1шт.

24

129-123

NUT,3/8"-24, G5

1шт.

25

VR2695

X

YOKE - adjustable

1шт.

26

A7824

X

PIN - yoke

1шт.

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), (Not shown) 3/32" x 3/4"

1шт.

27

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

1шт.

28

31421

SHAFT - connecting (Used on all 500 gas models up to serial #3003033)

1шт.

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), (Not shown) 3/32" x 3/4"

1шт.

29

31387

LEVER - brake, complete

2шт.

30

31400

CLAMP

GRIP - rubber, brake lever

2шт.

31

33604

RATCHET

- brake lever

2шт.

32

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24NF x 1-1/2

2шт.

33

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam (3/8 - 24NF)

2шт.

34

A33600

DECAL

SHAFT - brake lever

2шт.

35

48816

KEY - square

2шт.

36

33603

FLEXIBLE HOSE

SPACER - brake lever shaft

2шт.

37

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

2шт.

38

30620

RETAINER - spring

2шт.

39

1337984C1

FORK

PIN - yoke

2шт.

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

40

129-123

NUT,3/8"-24, G5

2шт.

41

31386

ROD - steering

2шт.

42

11471

NUT

- steering rod

2шт.

43

R33370

SPRING

2шт.
