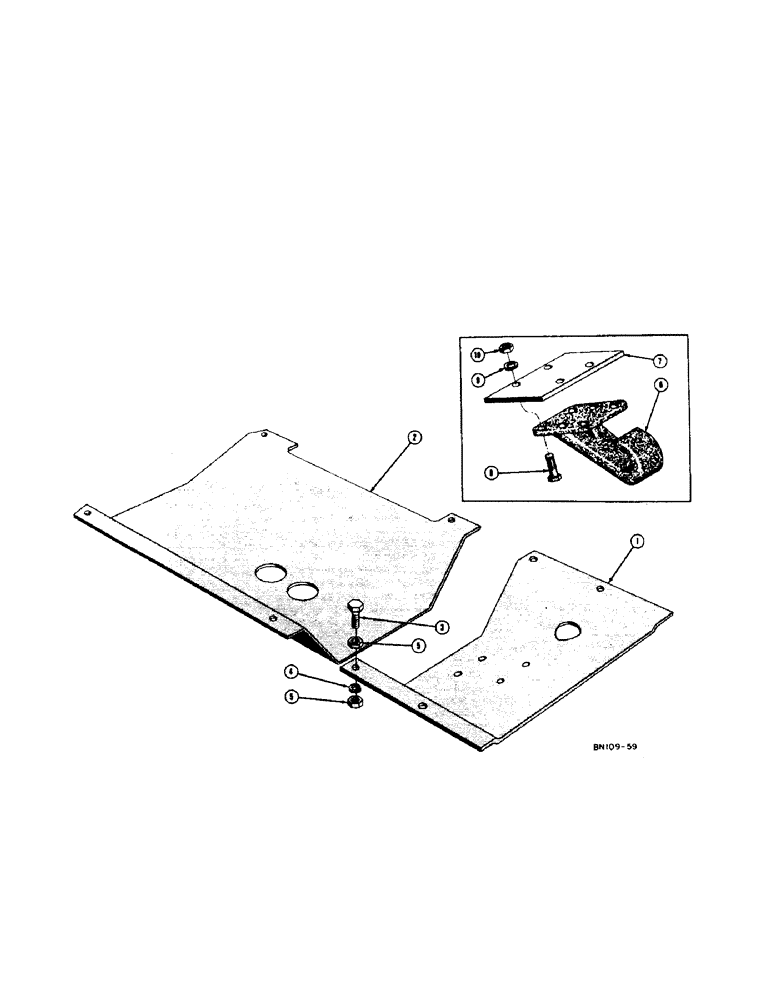

Запчасти Case 500 (168[1]) - PULL HOOK AND CRANKCASE GUARD (04) - UNDERCARRIAGE

1

31290

PIPE

GUARD - crankcase, front

1шт.

2

31294

TOGGLE

GUARD - crankcase, rear

1шт.

3

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20NF x 1-1/2

8шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

5

129-125

NUT,1/2"-20, G5

16шт.

6

R50469

HOOK

- pull

1шт.

7

36123

PLATE - doubler

1шт.

8

414-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20NF x 1-3/4

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

129-125

NUT,1/2"-20, G5

4шт.
