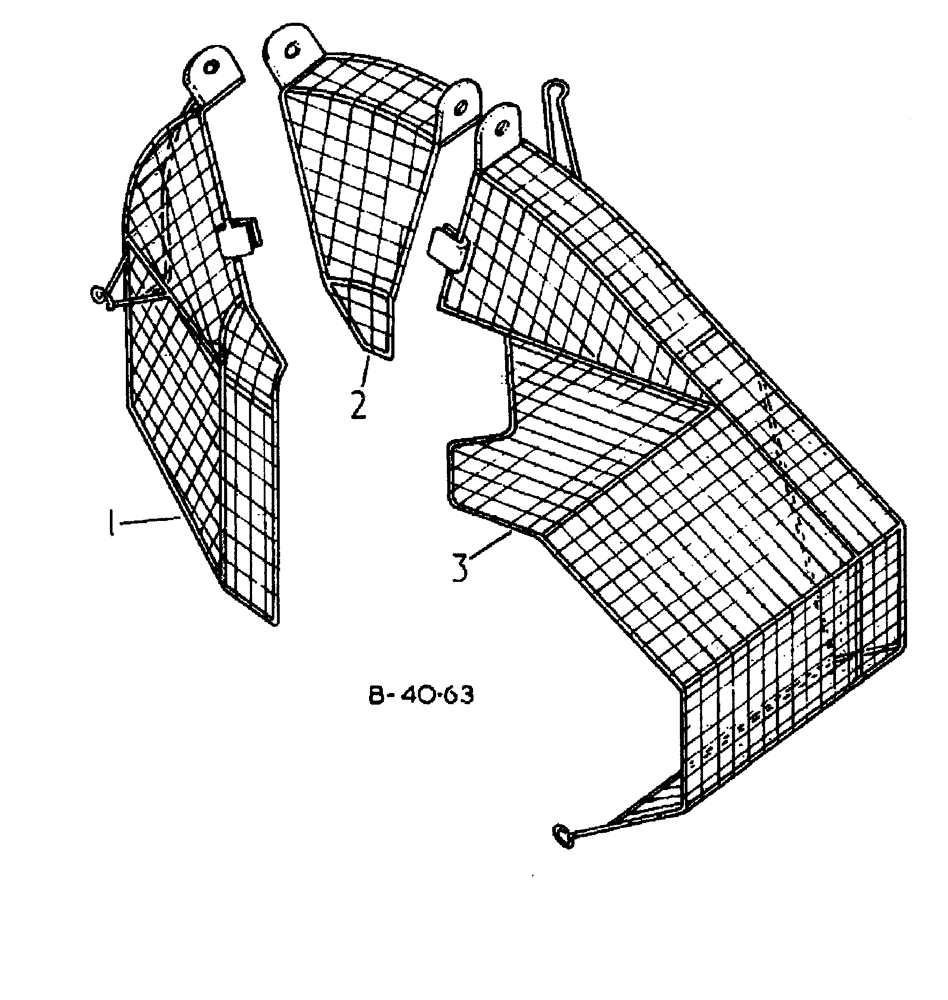

Запчасти Case 500 (06-012) - FAN AND GENERATOR GUARD No Description

3111727R92

SPARE PART

GUARD fan and generator, CPTE.

1шт.

1

3111729R1

GUARD

L.H.

1шт.

2

3111730R1

GUARD

upper

1шт.

3

3111728R2

GUARD

R.H.

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

95-11034

WASHER,1/4"

plain, fan guard to timing case cover, 11/32 x 11/16 x .065

1шт.
