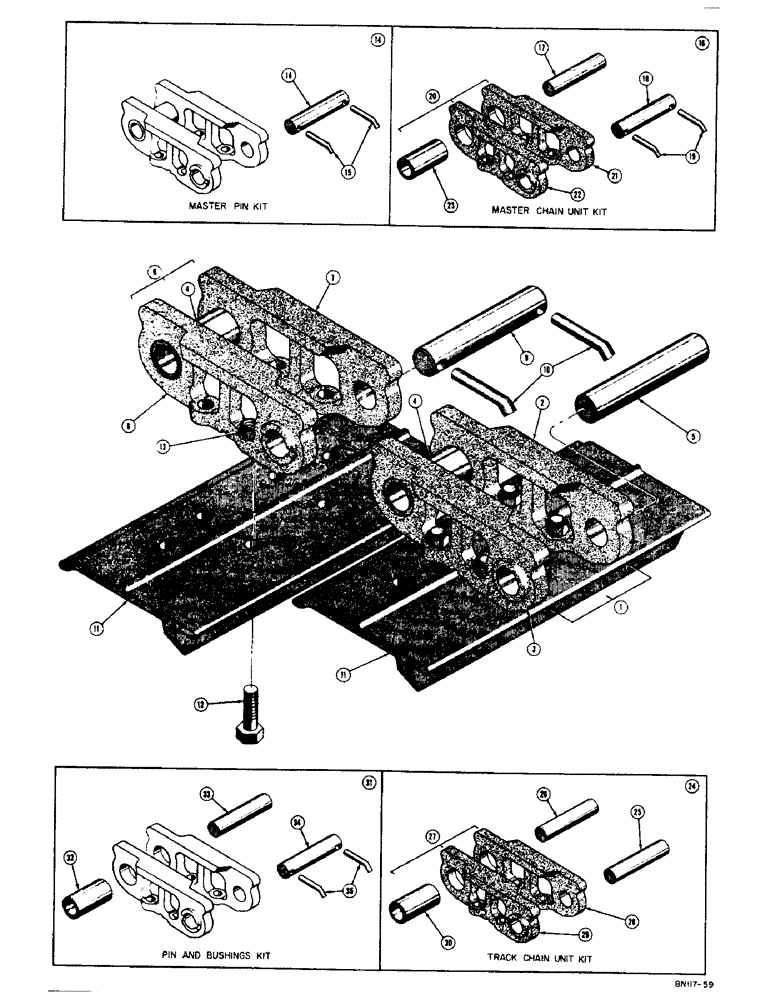

Запчасти Case 500 (164) - TRACK CHAIN (04) - UNDERCARRIAGE

NLS

NO LONGER SERVICED

CHAIN - 15 unit, complete

2шт.

5482

CHAIN - 16 unit, complete

2шт.

1

34571

KIT

UNIT ASS'Y - track (See D21014)

15шт.

2

30638

X

LINK - track, R.H. (See D21014)

15шт.

3

311164C1

CLAMP

- track, L.H. (See D21014)

15шт.

4

32830

BUSHING

- link (See D21013, 14, 15)

15шт.

5

32831

PIN

- track, standard (See D21014, also items #17 and #33)

15шт.

6

34589

X

UNIT ASS'Y - master (See D21013)

1шт.

7

R41050

LINK

- master, R.H. (See D21013)

1шт.

8

33286

LINK

- master, L.H. (See D21013)

1шт.

4

NLS

NO LONGER SERVICED

- link (See D21013, 14, 15)

1шт.

9

D21012

PIN

- master (See item #14)

1шт.

10

CASCASCASCAS32995

PIN - lock, master pin

2шт.

11

32884

PLATE - track (See figure 166 for standard and optional track plates)

62шт.

12

D41490

BOLT

HHCS - special (7/16 - 20NF x 1-1/2)

248шт.

13

25-277

NUT - hex., special (7/16 - 20NF)

248шт.

14

D21012

PIN

KIT - master pin

4шт.

15

CASCASCASCAS32995

PIN - lock, master pin, kit

2шт.

16

R43396

DRAG LINK

KIT - track master unit, chain

4шт.

17

32836

PIN

- track, service (.003" oversize), master chain unit kit

1шт.

18

D21012

PIN

- master, chain unit kit

1шт.

19

CASCASCASCAS32995

PIN - lock, master pin, chain unit kit

2шт.

20

34589

X

UNIT ASS'Y - master, chain kit

1шт.

21

R41050

LINK

- master, R.H., chain unit kit

1шт.

22

33286

LINK

- master, L.H., chain unit kit

1шт.

23

32830

BUSHING

- link, master chain unit kit

1шт.

24

R43170

CHAIN (AG)

KIT - track chain unit

58шт.

25

32831

PIN

- track, standard, chain unit kit

1шт.

26

32836

PIN

- track, service (.003" oversize), chain unit kit

1шт.

27

34571

KIT

UNIT ASS'Y - track, chain kit

1шт.

28

30638

X

LINK - track, R.H., chain unit kit

1шт.

29

30639

LINK

- track, L.H., chain unit kit

1шт.

30

NLS

NO LONGER SERVICED

- link, track chain unit kit

1шт.

31

D21015

KIT - pins and bushings

1шт.

32

32830

BUSHING

- link, pins kit

64шт.

33

32836

PIN

- track, service (.003" oversize), bushings kit

60шт.

34

D21012

PIN

- master, bushings kit

4шт.

35

CASCASCASCAS32995

PIN - lock, master pin, bushings kit

2шт.
