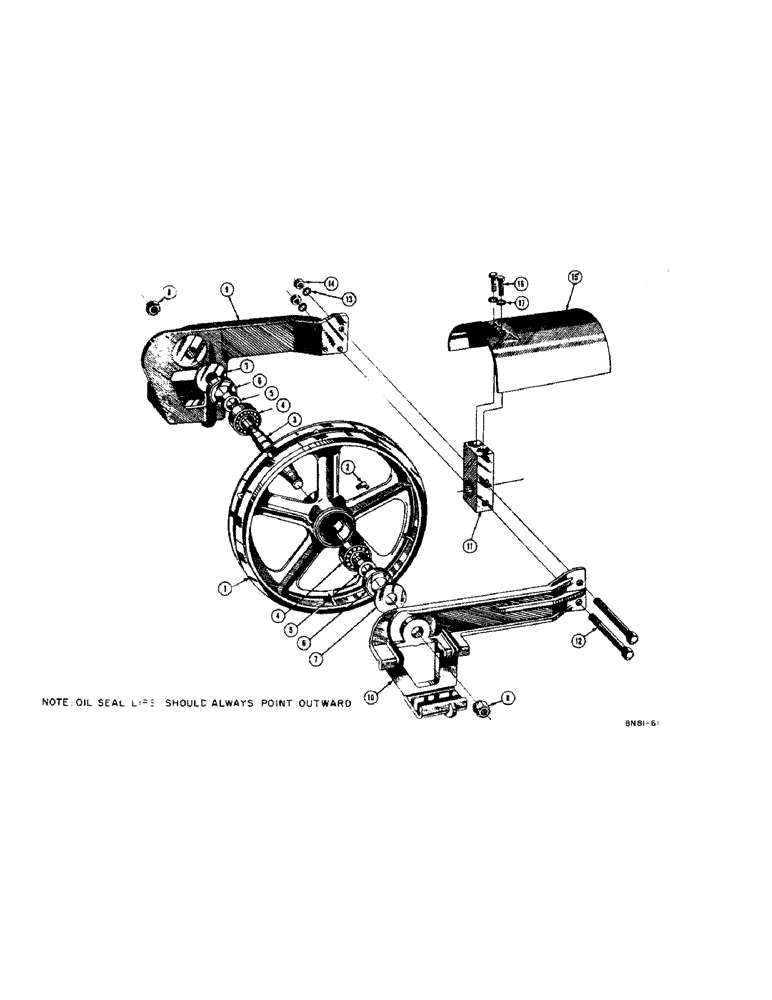

Запчасти Case 500 (162) - IDLER WHEEL, (USED UP TO SERIAL #4-16-55) (04) - UNDERCARRIAGE

1

32065

FRONT IDLER

HUB - idler wheel

2шт.

5926

X

KIT - idler wheel

2шт.

2

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - 67-1/2 degree grease, 1/4 NPT (Lincoln #5350)

1шт.

3

32068

SHAFT

- idler wheel

1шт.

4

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - ball

2шт.

5

32051

SPACER

- idler wheel

2шт.

6

40633

PLATE

SEAL - oil, idler wheel

2шт.

7

30704

BEARING COVER

- idler wheel

2шт.

8

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14NF)

2шт.

9

32066

BRACKET - idler wheel, R.H.

2шт.

10

32067

BRACKET - idler wheel, L.H.

2шт.

11

32069

BLOCK - spacer

1шт.

12

414-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

HHCS - 1/2 - 20NF x 3-1/2

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

129-125

NUT,1/2"-20, G5

4шт.

15

D26698

SHIELD

- sliding, R.H.

1шт.

D26697

SHIELD

- sliding, L.H.

1шт.

16

14-68T1

SEAL

HHCS - 3/8 - 24 NF x 1/2

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
