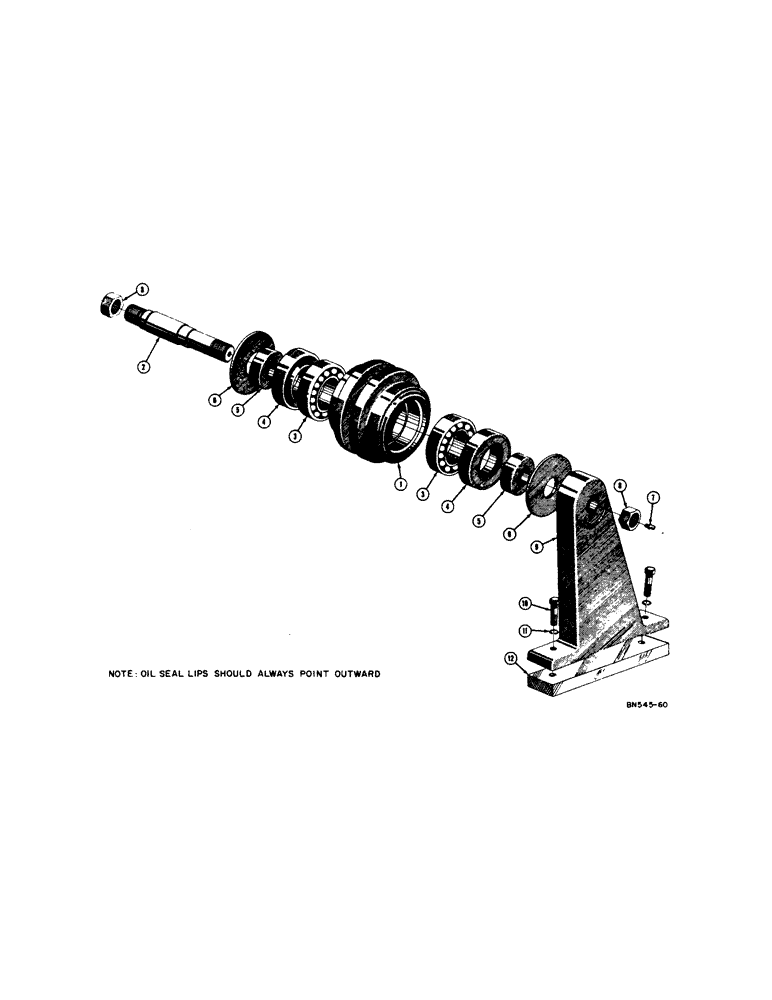

Запчасти Case 500 (160) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

NLS

NO LONGER SERVICED

KIT - track carrier roller (Optional)

2шт.

1

R54370

ROLLER

HUB - track carrier roller

1шт.

D10793

X

KIT - track carrier roller

1шт.

2

30707

SHAFT

- track carrier roller

1шт.

3

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball

2шт.

4

40633

PLATE

SEAL - oil

2шт.

5

32051

SPACER

- track carrier roller

2шт.

6

30704

BEARING COVER

- track carrier roller

2шт.

7

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Lincoln #5000) 1/8"-27 x .66 lg

1шт.

8

230-46116

LOCK NUT,1"-14, GA

NUT - lock (1 - 14NF)

2шт.

9

30718

BRACKET

- track carrier roller

1шт.

10

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

HHCS - 5/8 - 18NF x 1-3/4

4шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

D27036

SPACER - bracket (If used)

2шт.
