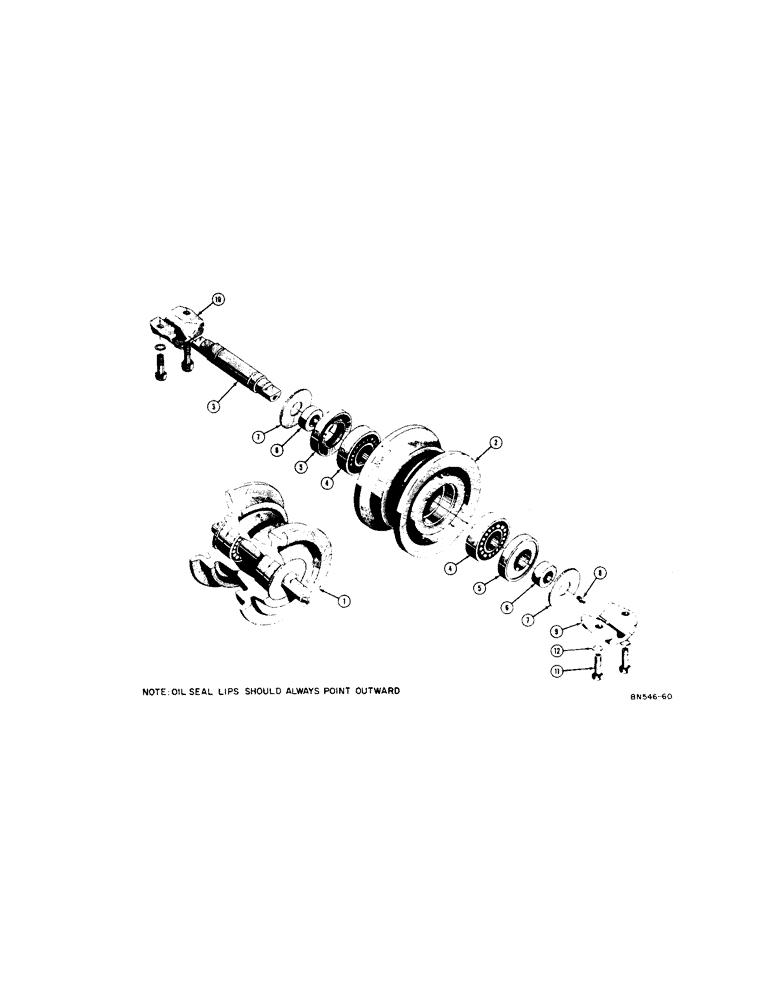

Запчасти Case 500 (160[1]) - TRACK ROLLER (04) - UNDERCARRIAGE

1

32032

X

ROLLER - track, complete

8шт.

2

R36470

ROLLER ASSY.

HUB - track roller

1шт.

5923

KIT - track roller

1шт.

3

32056

SHAFT

- track roller

1шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball

2шт.

5

D29138

OIL SEAL

SEAL - oil

2шт.

6

32051

SPACER

2шт.

7

30704

BEARING COVER

- track roller

2шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Lincoln #5000) 1/8"-27 x .66 lg

1шт.

9

32055

BOX

- track roller, outer

8шт.

10

51200225

CAP

BOX - track roller, inner

8шт.

11

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

32шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

32шт.
