Запчасти Case 500 (158) - TRACK FRAME AND RECOIL SPRING (04) - UNDERCARRIAGE

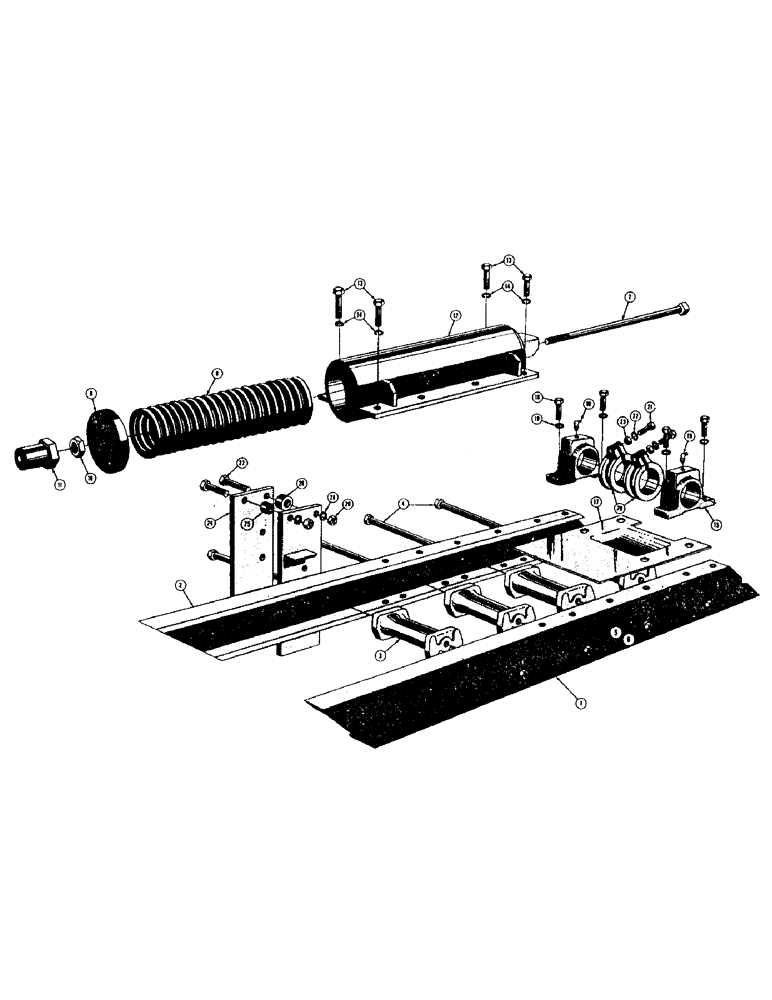

Схема запчастей Case 500 - (158) - TRACK FRAME AND RECOIL SPRING (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

31832

CHANNEL - track, outer, R.H. (Used on all models from serial #4-16-55)

1шт.

32174

SOCKET

CHANNEL - track, outer, R.H. (Used on all 400 models up to serial #4-16-55)

1шт.

32176

HUB

CHANNEL - track, outer, R.H. (Used on all 500 models up to serial #4-16-55)

1шт.

31833

CHANNEL - track, outer, L.H. (Used on all models from serial #4-16-55)

1шт.

32175

PIPE FITTING

CHANNEL - track, outer, L.H. (Used on all 400 models up to serial #4-16-55)

1шт.

32177

CHANNEL - track, outer, L.H. (Used on all 500 models up to serial #4-16-55)

1шт.

2

33945

CHANNEL - track, inner, R.H. (Used on all models from serial #4-16-55)

1шт.

32186

CHANNEL - track, inner, R.H. (Used on all 400 models up to serial #4-16-55)

1шт.

32188

CHANNEL - track, inner, R.H. (Used on all 500 models up to serial #4-16-55)

1шт.

33946

COVER PLATE

CHANNEL - track, inner, L.H. (Used on all models from serial #4-16-55)

1шт.

32187

CHANNEL - track, inner, L.H. (Used on all 400 models up to serial #4-16-55)

1шт.

32189

HANDLE

CHANNEL - track, inner, L.H. (Used on all 500 models up to serial #4-16-55)

1шт.

3

51200219

NUT

SPACER - track channel

8шт.

4

16-12174

HHCS - 3/4 - 16NF x 10-7/8

8шт.

5

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

6

425-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16NF)

8шт.

30478

SPRING - recoil, R.H., complete

1шт.

7

32094

BOLT,1" - 14 x 24 1/2", Steel

- track adjusting

1шт.

8

D39498

SPRING

- recoil

1шт.

9

32096

NUT - tension adjusting

1шт.

10

129-170

JAM NUT,Jam, 1"-14, G5

1шт.

11

51200219

NUT

- track adjusting

1шт.

12

32140

HOUSING - recoil spring, R.H.

1шт.

30479

DECAL

SPRING - recoil, L.H., complete

1шт.

7

32094

BOLT,1" - 14 x 24 1/2", Steel

- track adjusting

1шт.

8

D39498

SPRING

- recoil

1шт.

9

32096

NUT - tension adjusting

1шт.

10

129-170

JAM NUT,Jam, 1"-14, G5

1шт.

11

51200219

NUT

- track adjusting

1шт.

12

32141

FITTING

HOUSING - recoil spring, L.H.

1шт.

13

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

12шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

15

D27536

BLOCK

- pivot

4шт.

16

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - 67-1/2 degree grease, 1/4 NPT (Lincoln #5350)

4шт.

17

32542

PAN - mud (Used on all models from serial #4-16-55)

2шт.

18

414-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4 - 16NF x 1-3/4

8шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

20

15101

CLAMP - track frame mounting

4шт.

21

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

Clamp Hex, 5/8"-18 x 3", G5

4шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

23

425-1110

NUT,5/8"-18, G5

4шт.

24

32181

PLATE - forward support

2шт.

25

32182

SPACER

6шт.

26

32332

SPACER

2шт.

27

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

Support plate Hex, 5/8"-18 x 3", G5

8шт.

28

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

29

425-1110

NUT,5/8"-18, G5

8шт.

Выбрано товаров: 47
