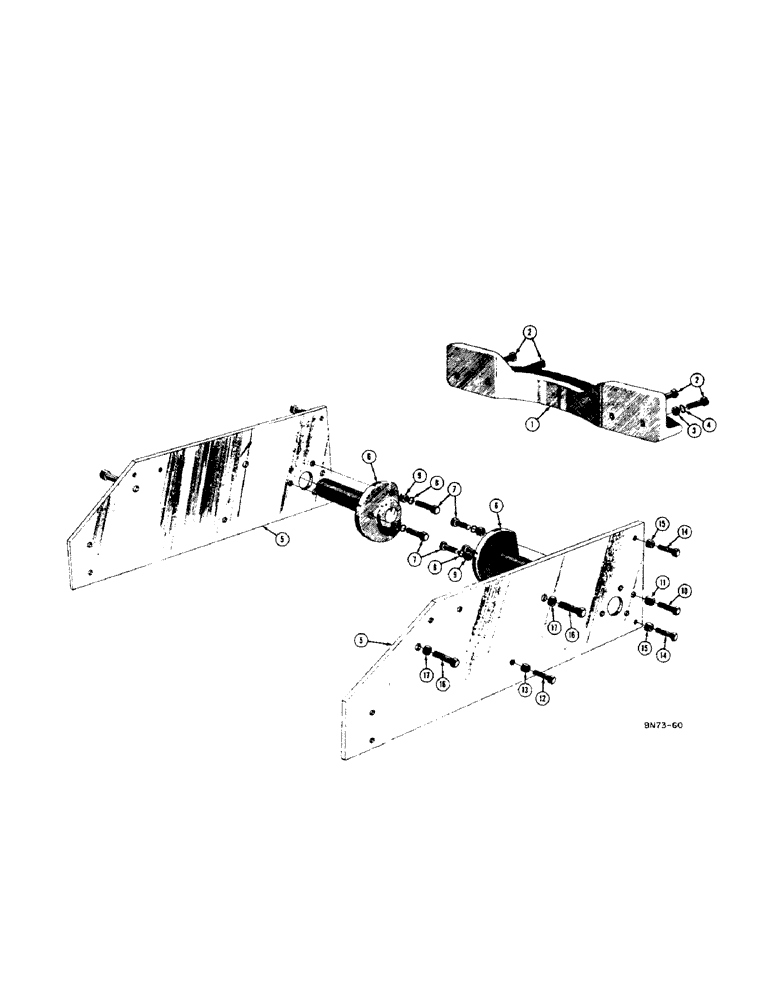

Запчасти Case 500 (156[1]) - SIDE PLATE, PIVOT BAR, AND DRAWBAR GUIDE (04) - UNDERCARRIAGE

1

13103

GUIDE - drawbar

1шт.

2

414-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

HHCS - 5/8 - 18NF x 2

4шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

425-1110

NUT,5/8"-18, G5

4шт.

5

33112

WASHER

PLATE - side (Used on 500 gas and diesel, 1955 models)

2шт.

33111

PLATE - side (Used on all 400 gas and diesel models and all 500 gas and diesel models after 1955)

2шт.

6

33067

BELT

BAR - pivot

2шт.

7

114-715

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

Hex, 3/4"-16 x 2 1/2", G5

6шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

9

425-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16NF)

6шт.

10

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - 5/8 - 18NF x 2-1/2

2шт.

11

129-498

NUT - lock (5/8 - 18NF) NASP

2шт.

12

414-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16NF x 2-3/4

2шт.

13

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16NF)

2шт.

14

33046

BOLT - body fit (5/8 - 18NF x 2-1/2)

4шт.

15

129-498

NUT - lock (5/8 - 18NF) NASP

4шт.

16

33047

BOLT,Hex, 1" - 14 x 3 3/32"

- body fit (1 - 14NF x 3-3/32)

4шт.

17

232-46116

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

4шт.
