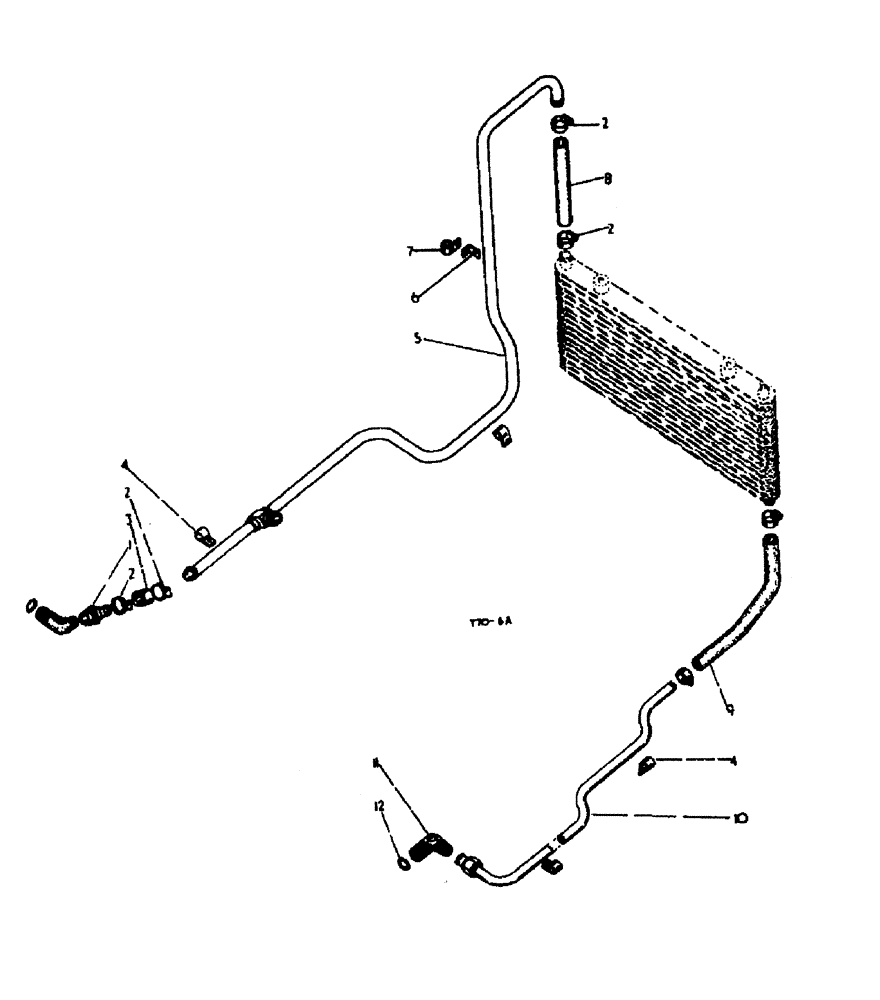

Запчасти Case 500 (06-008) - OIL COOLER LINES No Description

1

3065238R91

PIPE

and NUT ASSY.

1шт.

2

3065216R91

CLIP

worm drive

6шт.

3

3106781R1

HOSE,0.75" ID Bulk, SAE 100R3

bulk, order length required

1шт.

4

3065245R1

CLIP

pipe

4шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

4шт.

895516H1

SPACER

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

5

3110839R11

BRACKET

PIPE inlet, OIL COOLER ASSY.

1шт.

6

3065246R1

BRACKET

pipe clip mounting

1шт.

181332

BOLT,Hex, 5/16" - 24 x 9/16", Gr 5, Full Thd

1шт.

425-115

NUT,5/16"-24, G5

1шт.

103320

LOCK WASHER,5/16"

1шт.

7

3065245R1

CLIP

pipe

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

hex head, 1/4 UNF x 5/8

1шт.

25-114

NUT,1/4"-28, G5

hex, 1/4 UNF

1шт.

103319

LOCK WASHER,1/4"

1шт.

8

3106781R1

HOSE,0.75" ID Bulk, SAE 100R3

bulk, order length required

1шт.

9

3106781R1

HOSE,0.75" ID Bulk, SAE 100R3

bulk, order length required

1шт.

10

3065249R91

SPARE PART

PIPE outlet, oil cooler CPTE.

1шт.

11

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

ADAPTOR adjustable, 90 deg.

2шт.

12

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for use w/ 3/4 O.D. tube

2шт.
