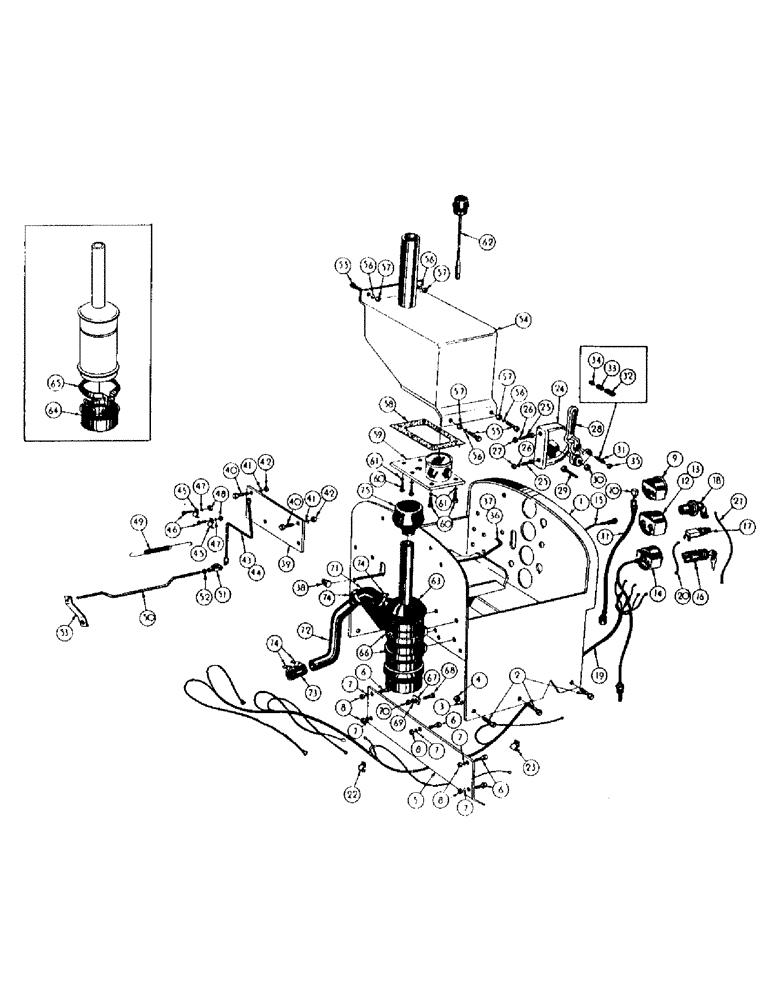

Запчасти Case 500 (104) - COWL, DASH, AIR CLEANER, & THROTTLE CONTROL, USED ON ALL 500 GAS MODELS FROM S/N 6-6-55 TO 3000502 (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
43751DB
LATCH, PEDALS
COWL AND DASH
1шт.
3
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
4
129-123
NUT,3/8"-24, G5
6шт.
5
31055
PLATE - center, cowl and dash
1шт.
7
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
5шт.
8
129-123
NUT,3/8"-24, G5
5шт.
9
NLS
NO LONGER SERVICED
GAUGE - oil pressure
1шт.
10
222-851
ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT, Fem
- 90 degree female (1/8 NPT x 1/4 JIC)
1шт.
11
D20271
HOSE - oil pressure
1шт.
12
R18748
AMMETER
GAUGE - ammeter
1шт.
13
10859
TAB SPRING
WASHER - insulation
2шт.
14
239759A1
GAUGE
- temperature
1шт.
15
10856
CONTROL - carburetor choke
1шт.
10858
LOOM - protective, choke control (Not shown)
1шт.
16
10868
LOCKSWITCH - ignition
1шт.
17
D23216
SWITCH
- push button starter
1шт.
48549
WASHER - plain, starter switch (#8 brass) (Not shown)
3шт.
48081
PIPE
NUT - hex., starter switch (#8 brass) (Not shown)
3шт.
18
10855
X
SWITCH - light
1шт.
19
30866
CABLE - main wiring
1шт.
20
30863
WIRE - jumper
1шт.
22
515-2348
CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type
- wiring
4шт.
23
49852
PTO SHAFT
- wiring
2шт.
24
30915
PROTRACTOR - throttle
1шт.
25
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd
HHCS - protractor (3/8 - 24 NF x 1-1/4)
2шт.
26
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
27
129-123
NUT,3/8"-24, G5
2шт.
28
30916
LEVER - throttle control
1шт.
29
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
Control lever Hex, 3/8"-16 x 2 1/4", G5
1шт.
30
25-106
NUT,3/8"-16, G5
- hex. (3/8 - 16 NC)
1шт.
31
NSS
NOT SOLD SEPARAT
POPPET ASS'Y
1шт.
32
30917
CONTAINER - poppet
1шт.
33
30918
NUT
SPRING - poppet
1шт.
34
30919
POPPET
1шт.
35
425-158
JAM NUT,Jam, 1/2"-20, G5
Poppet adjusting Jam, 1/2"-20, G5
1шт.
36
32788
HINGE
ROD - throttle slide
1шт.
37
432-812
COTTER PIN,3/4" OAL x 1/8" W
PIN, SPLIT (COTTER), , Slide rod 1/8" x 3/4"
2шт.
38
32794
PIN
SWIVEL - throttle
1шт.
39
31821
SUPPORT - accelerator
1шт.
40
414-516
BOLT,Hex, 5/16" - 24 x 1", Gr 5
HHCS - accelerator support (5/16 - 24 NF x 1)
2шт.
41
92-5
LOCK WASHER,5/16"
2шт.
43
D20047
SHAFT - pivot, throttle
1шт.
44
432-612
COTTER PIN,3/32" x 3/4"
PIN , SPLIT (COTTER), , Pivot shaft 3/32" x 3/4"
1шт.
45
49788
WINDGUARD
CLAMP - pivot shaft
2шт.
46
414-412
BOLT,Hex, 1/4" - 28 x 3/4", Gr 5
HHCS - clamp (1/4 - 28 NF x 3/4)
2шт.
47
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
48
425-114
NUT,1/4"-28, G5
2шт.
49
R33370
SPRING
- throttle return
1шт.
50
32600
ROD - connecting, throttle (Pivot, Serial Range: shaft-governor)
1шт.
51
VR2695
X
YOKE - adjustable
1шт.
427-4077
CLEVIS PIN,1/4" x .770"
PIN, CLEVIS, , Yoke (Not shown) 1/4" x .770"
1шт.
132-328
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), , Yoke pin, not shown 1/16" x 1/2"
1шт.
53
60659
GUIDE - throttle
1шт.
54
31071
TANK - sump, torque converter oil
1шт.
55
414-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
Sump tank Hex, 3/8"-24 x 3/4", G5, Full Thd
4шт.
56
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
57
129-123
NUT,3/8"-24, G5
4шт.
58
31078
GASKET - cover
1шт.
59
31072
SCREEN AND COVER - sump tank
1шт.
60
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- Cover Hex, 5/16"-18 x 1", G5, Full Thd
6шт.
61
48552
WASHER - copper (11/32" I.D. x 5/8" O.D.)
6шт.
62
31076
CAP AND GAUGE - filler, sump tank
1шт.
63
34346
CLEANER - air
1шт.
64
D25396
CUP - oil, air cleaner
1шт.
65
277719R91
CLAMP
- oil cup retaining
1шт.
66
NLS
NO LONGER SERVICED
BAND - bracket, air cleaner
2шт.
67
34294
SPACER - air cleaner to cowl and dash
4шт.
68
414-516
BOLT,Hex, 5/16" - 24 x 1", Gr 5
HHCS - air cleaner to cowl and dash (5/16 - 24 NF x 1)
4шт.
69
92-5
LOCK WASHER,5/16"
4шт.
71
33315
BOLT
ELBOW - hose, air, Serial Range: cleaner-tube
1шт.
72
33314
SUPPORT
TUBE - air cleaner
1шт.
73
32530
LOCTITE
HOSE -, Serial Range: tube-carburetor
1шт.
74
214-1444
HOSE CLAMP,58.6mm - 82.5mm
CLAMP - hose
4шт.
75
34386
CONNECTING LINK
CAP - air cleaner inlet
1шт.
Выбрано товаров: 80
