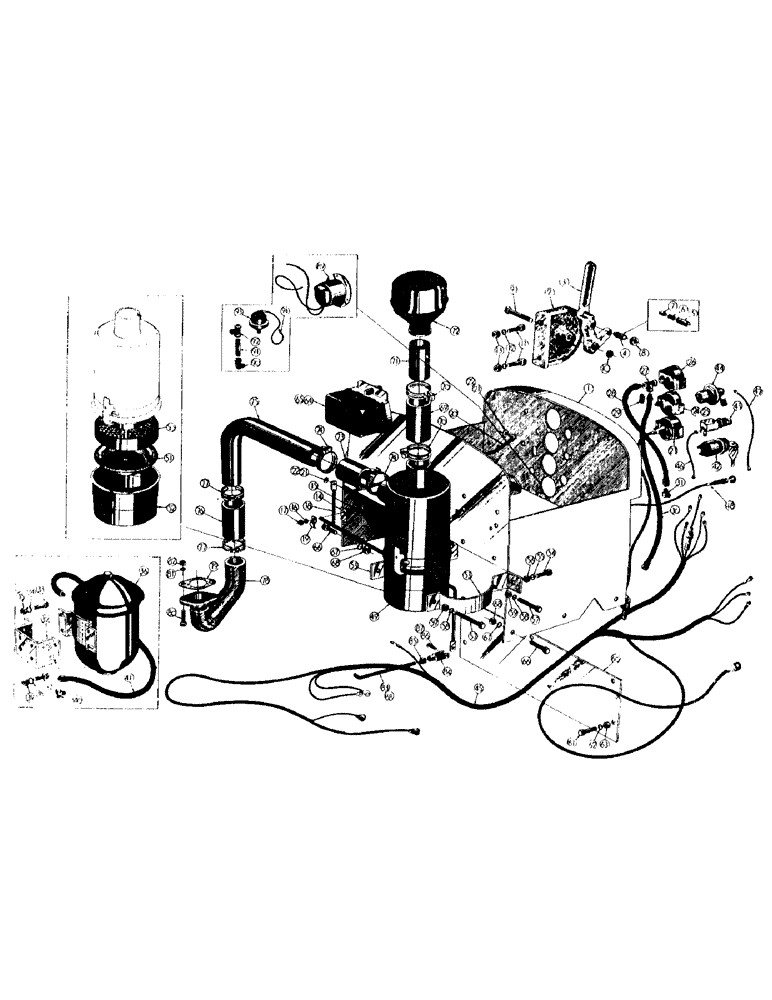

Запчасти Case 500 (096) - COWL, DASH, AIR CLEANER, AND THROTTLE CONTROL (01) - ENGINE

1

33670

COWL AND DASH

1шт.

2

30915

PROTRACTOR

1шт.

3

30916

LEVER - throttle control

1шт.

4

NSS

NOT SOLD SEPARAT

POPPET - complete

1шт.

5

30917

CONTAINER - poppet

1шт.

6

30918

NUT

SPRING - poppet

1шт.

7

30919

POPPET

1шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

9

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Protractor to throttle lever Hex, 3/8"-16 x 2 1/4", G5

1шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

11

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Protractor to cowl and dash

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-123

NUT,3/8"-24, G5

2шт.

14

30936

PLATE - support, throttle crank clamp

2шт.

15

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

HHCS - support plate (1/4 - 28 NF x 3/4)

2шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

425-114

NUT,1/4"-28, G5

2шт.

18

30944

BOLT,Hex Flg, 1/2" - 13 x 1"

CRANK - throttle

1шт.

19

49784

CLAMP - open

2шт.

20

30937

ROD -, Serial Range: throttle-crank

1шт.

21

495-21031

WASHER,1/4"

- plain (5/16" I.D. x 3/4" O.D. x 1/16" thick)

2шт.

22

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

23

239759A1

GAUGE

- temperature

1шт.

24

R18748

AMMETER

1шт.

25

10859

TAB SPRING

WASHER - insulation

2шт.

26

NLS

NO LONGER SERVICED

GAUGE - oil pressure

1шт.

27

221-1421

TEE,Pipe, 1/8" NPT

- pipe, 1/8 NPT

1шт.

28

D20272

HOSE

- oil pressure

1шт.

29

31-250

ELBOW

- 90 degree male, 1/8 NPT x 1/4 JIC

1шт.

30

51040-26

HOSE - oil pressure

1шт.

31

31-250

ELBOW

- 90 degree male, 1/8 NPT x 1/4 JIC

1шт.

32

33680

HOOK

BRACKET - mounting, oil filter

1шт.

33

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Oil filter mounting bracket Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

34

92-5

LOCK WASHER,5/16"

4шт.

35

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

4шт.

36

G11068

O-RING

FILTER - oil (See figure 56 for breakdown)

1шт.

37

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Oil filter mounting bracket Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

38

92-5

LOCK WASHER,5/16"

4шт.

39

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

4шт.

40

31-250

ELBOW

- 90 degree male, 1/8 NPT x 1/4 JIC

1шт.

41

51040-26

HOSE - oil pressure

1шт.

42

A10868

DECAL

LOCKSWITCH - electrical

1шт.

43

D23216

SWITCH

- push button starter

1шт.

44

10855

X

SWITCH - light

1шт.

45

30868

HARNESS - wiring

1шт.

46

30863

WIRE - jumper, Serial Range: lockswitch-starter

1шт.

47

30864

WIRE - jumoer, lockswitch to light switch

1шт.

48

10856

CONTROL - engine shut off

1шт.

10858

LOOM - engine shut off control (Not shown)

1шт.

49

30829

CLEANER - air

1шт.

50

30562

SCREEN - air cleaner

1шт.

51

30563

SEPARATOR - air cleaner

1шт.

52

30564

CUP - oil, air cleaner

1шт.

53

30824

SUPPORT - air cleaner

2шт.

54

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Support to cowl and dash Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

55

92-5

LOCK WASHER,5/16"

2шт.

56

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

57

114-219

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

HHCS - 3/8 - 24 NF x 2-1/2

2шт.

58

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

59

129-123

NUT,3/8"-24, G5

2шт.

60

33672

BALL JOINT HEAD

PLATE - center, cowl and dash

1шт.

61

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

5шт.

62

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

63

129-123

NUT,3/8"-24, G5

5шт.

64

30679

REGULATOR - voltage

1шт.

65

49700

SCREW - sheet metal

1шт.

66

414-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

5шт.

75-612

RHMS - 3/8 - 16 NC x 3/4

1шт.

67

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

68

129-123

NUT,3/8"-24, G5

5шт.

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

69

30428

RETAINER

HOSE - low pressure

1шт.

70

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

71

30411

TUBE - air cleaner

1шт.

72

D22685

CAP

CAP - air cleaner inlet

1шт.

73

30374

HOSE - low pressure

1шт.

74

49756

PANEL

CLAMP - hose

2шт.

75

E20256

PLUG

ELBOW - air cleaner

1шт.

76

30374

HOSE - low pressure

1шт.

77

49756

PANEL

CLAMP - hose

2шт.

78

30822

ELBOW - air inlet

1шт.

79

30160

GASKET

GASKET - air inlet elbow

1шт.

80

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2

2шт.

81

92-5

LOCK WASHER,5/16"

2шт.

82

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

83

30939

ROD - throttle adjusting

1шт.

84

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - adjustable

1шт.

85

425-114

NUT,1/4"-28, G5

1шт.

86

VT2105

X

PIN - yoke

1шт.

87

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

88

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

89

33267

CHAIN

METER - engine hour (6 volt) (Optional equipment)

1шт.

90

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- 90 degree street, 1/8 NPT

1шт.

91

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe (1/8 NPT x 1-1/2)

1шт.

92

221-1421

TEE,Pipe, 1/8" NPT

- pipe, 1/8 NPT

1шт.

93

A27312

SWITCH

- pressure

1шт.

94

49876

BUMPER

TERMINAL - pressure switch ground wire

1шт.

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wiring harness (Not shown)

4шт.

49788

WINDGUARD

CLAMP - wiring harness (Not shown)

2шт.
