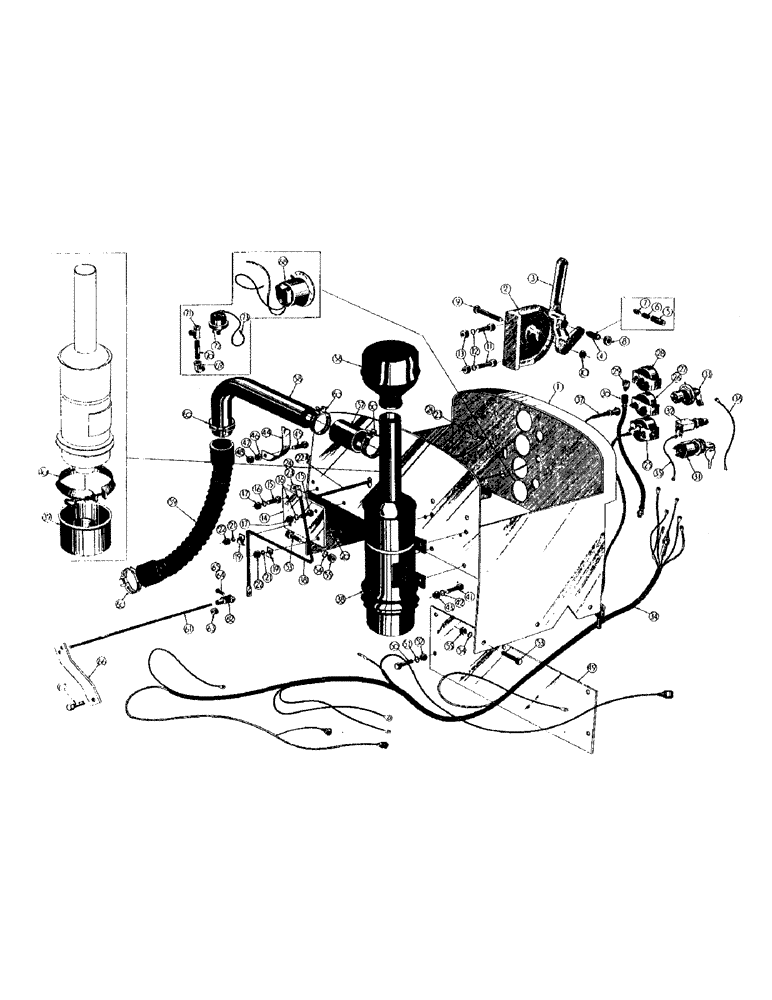

Запчасти Case 500 (088) - COWL, DASH, AIR CLEANER, AND THROTTLE CONTROL (01) - ENGINE

1

D20049

COWL AND DASH - (Used on all 400 gas models up to serial #3000150) (Used on all 500 gas models up to serial #6-6-55)

1шт.

2

30915

PROTRACTOR

1шт.

3

30916

LEVER - throttle control

1шт.

4

NSS

NOT SOLD SEPARAT

POPPET - complete

1шт.

5

30917

CONTAINER - poppet

1шт.

6

30918

NUT

SPRING - poppet

1шт.

7

30919

POPPET

1шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

9

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Protractor to throttle lever Hex, 3/8"-16 x 2 1/4", G5

1шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

11

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Protractor to cowl and dash

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-123

NUT,3/8"-24, G5

2шт.

14

30938

PLATE - throttle support

1шт.

15

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

HHCS - throttle support plate (1/4 - 28 NF x 3/4)

2шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

425-114

NUT,1/4"-28, G5

2шт.

18

30935

CRANK - throttle

1шт.

19

F43611

CLIP

CLAMP - open (Throttle crank pivot)

2шт.

20

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

HHCS - 1/4 - 28 NF x 3/4

2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

425-114

NUT,1/4"-28, G5

2шт.

22a

30937

ROD -, Serial Range: throttle-crank

1шт.

23

495-21031

WASHER,1/4"

- plain (5/16" I.D. x 3/4" O.D. x 1/16" thick)

3шт.

24

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

3шт.

25

239759A1

GAUGE

- temperature

1шт.

26

R18748

AMMETER

1шт.

27

10859

TAB SPRING

WASHER - insulation, ammeter

2шт.

28

NLS

NO LONGER SERVICED

GAUGE - oil pressure

1шт.

29

222-851

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT, Fem

- 90 degree female, 1/8 NPT x 1/4 JIC

1шт.

30

D20271

HOSE - oil pressure

1шт.

31

10868

LOCKSWITCH - ignition

1шт.

32

D23216

SWITCH

- push button starter

1шт.

33

10855

X

SWITCH - light

1шт.

34

30866

HARNESS - wiring

1шт.

35

30863

WIRE - jumper, ignition lockswitch to starter switch

1шт.

36

30864

WIRE - jumper, ignition lockswitch to light switch

1шт.

37

10856

CONTROL - carburetor choke

1шт.

10858

LOOM - protective, choke control (Not shown)

1шт.

38

10800

CLEANER - air

1шт.

39

10810

RETAINER COLLAR

CUP - oil

1шт.

40

10811

STUD

CLAMP - retaining, oil cup

1шт.

41

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Air cleaner to cowl and dash Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

42

92-5

LOCK WASHER,5/16"

4шт.

43

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

4шт.

44

34815

TRACK SHOE

BRACKET - support, air cleaner tube

1шт.

45

353501X1

SCREW

HHCS - 1/4 - 28 NF x 1/2

1шт.

46

495-21031

WASHER,1/4"

- plain (5/16" I.D. x 3/4" O.D. x 1/16" thick)

1шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

425-114

NUT,1/4"-28, G5

1шт.

49

33672

BALL JOINT HEAD

PLATE - center, cowl and dash

1шт.

50

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

Center plate Hex, 3/8"-24 x 3/4", G5, Full Thd

5шт.

51

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

52

129-123

NUT,3/8"-24, G5

5шт.

53

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

HHCS - cowl and dash (3/8 - 24 NF x 1-1/4)

5шт.

75-612

RHMS - cowl and dash (3/8 - 16 NC x 3/4)

1шт.

54

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

55

129-123

NUT,3/8"-24, G5

5шт.

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

56

A30532

CAP

- air cleaner inlet

1шт.

57

R43916

HOSE

- air cleaner to air cleaner tube

1шт.

58

10825

PIN

TUBE - air, Serial Range: cleaner-carburetor

1шт.

59

60253

HOSE - air cleaner, Serial Range: tube-carburetor

1шт.

60

49755

RIGID TUBE

CLAMP - air cleaner hose

4шт.

61

30934

ROD - throttle control

1шт.

62

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - adjustable

1шт.

63

425-114

NUT,1/4"-28, G5

1шт.

64

VT2105

X

PIN - yoke

1шт.

65

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

66

60659

GUIDE - throttle control rod

1шт.

67

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Throttle guide Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

68

33267

CHAIN

METER - engine hour (6 volt) (Optional equipment)

1шт.

69

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- 90 degree street, 1/8 NPT

1шт.

70

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe (1/8 NPT x 1-1/2)

1шт.

71

221-1421

TEE,Pipe, 1/8" NPT

- pipe, 1/8 NPT

1шт.

72

A27312

SWITCH

- pressure, hour meter

1шт.

73

49786

DISC

TERMINAL - pressure switch ground wire

1шт.

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wiring harness (Not shown)

4шт.

49778

CLAMP

- wiring harness (Not shown)

2шт.
