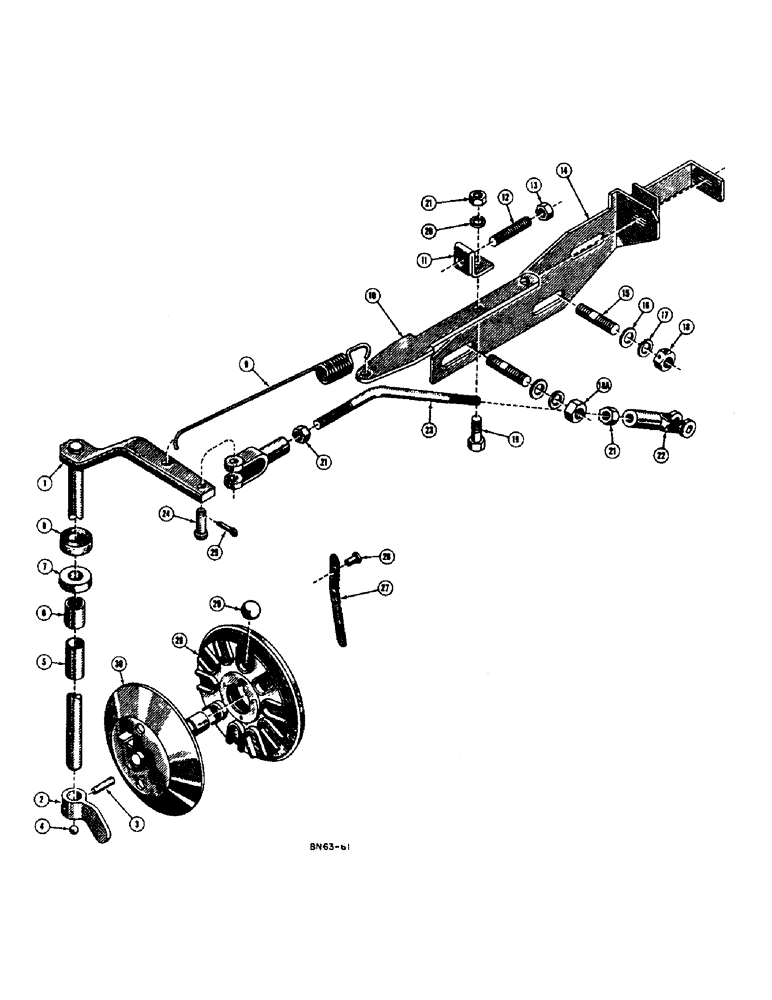

Запчасти Case 500 (058) - GOVERNOR - DIESEL (01) - ENGINE

R13390

LEVER AND SHAFT ASS'Y - governor control

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER AND SHAFT - governor control

1шт.

2

30398

ARM - governor rocker

1шт.

3

30399

PIN - taper

1шт.

4

211-7

BALL,1/4" Dia

- governor rocker arm thrust bearing 1/4" Dia

1шт.

5

30397

SPACER - rocker shaft

1шт.

6

O8089AB

BEARING - neddle

1шт.

7

30595

SEAL - oil

1шт.

8

30594

SEAL - dust

1шт.

9

33690

SPRING - governor control

1шт.

10

33689

SPADE - governor control

1шт.

11

30592

CLIP - idler stop adjusting

1шт.

12

30591

SCREW - headless set

1шт.

13

10491

GENERAL TOOL

NUT - hex. jam (1/4 - 28 NF)

1шт.

14

30424

STOP BRACKET AND SUPPORT ASS'Y - governor (Used on all diesel models, Serial Range: up-1956)

1шт.

11280

STOP BRACKET AND SUPPORT ASS'Y - governor (Used on all diesel models 1956 and later)

1шт.

15

30425

CONNECTOR, ELEC

STUD - 3/8 - 16 NC x 1-1/2

2шт.

16

195-25

WASHER,3/8"

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

30426

NUT - hex., special (Drilled) (3/8 - 16 NC)

1шт.

18a

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

19

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

425-114

NUT,1/4"-28, G5

3шт.

22

30419

END - rod, governor control

2шт.

23

30418

ROD - governor control

1шт.

24

30421

PIN - control rod end

2шт.

25

30420

TENSION SPRING

PIN - cotter

2шт.

26

30585

RIVET - governor bumper spring (1/8 x 7/16)

2шт.

27

30586

SPRING - governor bumper

1шт.

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

GOVERNOR ASS'Y - complete

1шт.

28

30588

DRIVER - governor

1шт.

29

O8296AB

X

BALL - governor driver (5/8" dia.)

10шт.

30

30589

SHAFT AND RACE - governor

1шт.

30417

SCREW - nylock, governor bumper spring adjusting (1/4 - 20 NC x 5/8) Not shown

1шт.
