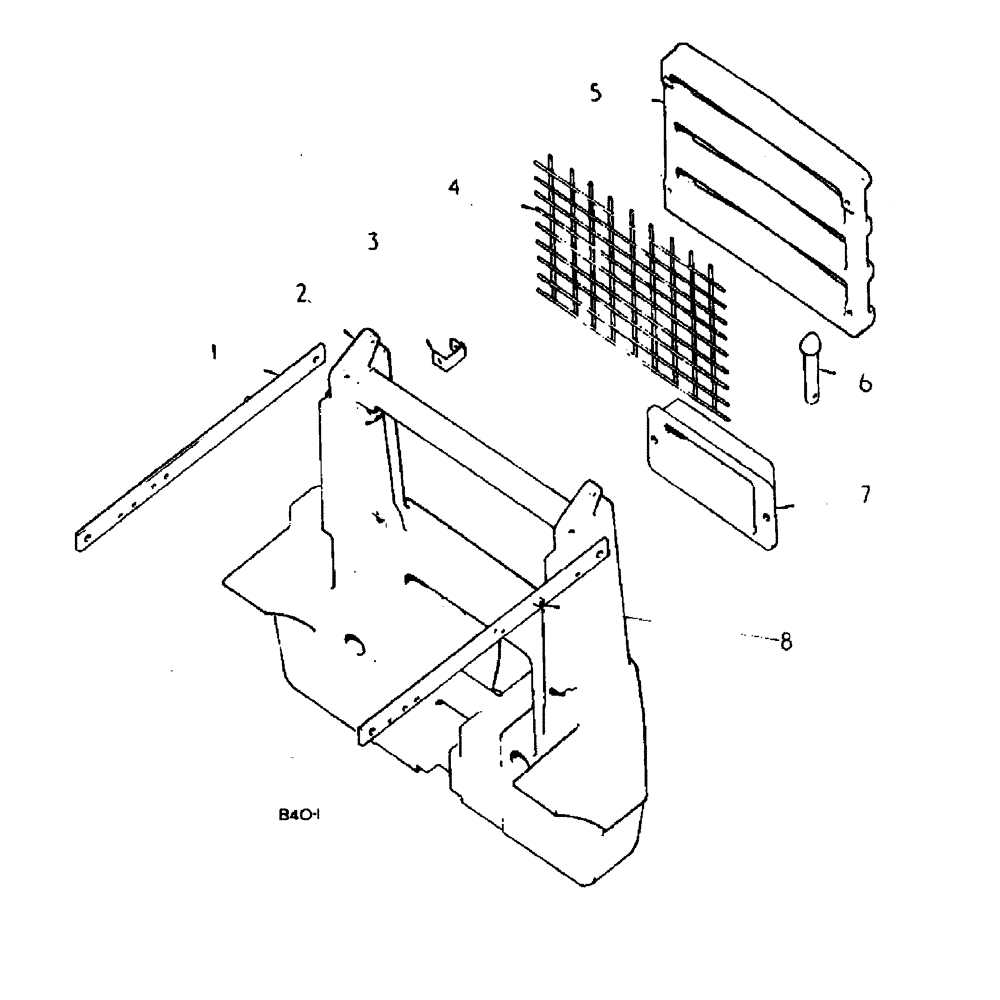

Запчасти Case 500 (06-002) - GRILLE AND TIE BARS No Description

1

3119783R1

BAR

CPTE. grille tie, R.H.

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

hex head, 5/8 UNF x 2-1/4, Fine Thread

1шт.

271582

BRACKET

hex head, 5/8 UNF x 1-3/8

1шт.

709615

NUT lock, nyloc, 5/8 UNF

1шт.

2

3114386R1

FRAME

GRILLE CPTE.

1шт.

22391R1

BOLT

hex head, 3/4 UNF x 20-1/2

2шт.

3069368R1

NUT

hex lock, 3/4 UNF

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 gallon

2шт.

3

3114396R1

RETAINER

CPTE. grille insert

4шт.

4

3114404

SCREEN grille insert

1шт.

5

3114395R1

GRILLE

insert

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

hex head, 3/8 x 3-1/2

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

120394

WASHER,3/8", SAE

flat, 13/32 x 13/16 x .051

4шт.

6

3041118R1

PIN

drawbar, clevis

1шт.

517843R1

COTTER PIN

1шт.

7

3060058R2

PANEL

pump acess

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

hex head, 1/2 x 1-1/8

2шт.

103323

LOCK WASHER,1/2"

2шт.

8

3114399R2

BAR

CPTE. grille tie, L.H.

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

hex head, 5/8 UNF x 2-1/4, Fine Thread

1шт.

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

hex head, 5/8 UNF x 1-3/8

1шт.

709615R1

NUT

lock, nyloc, 5/8 UNF

1шт.
