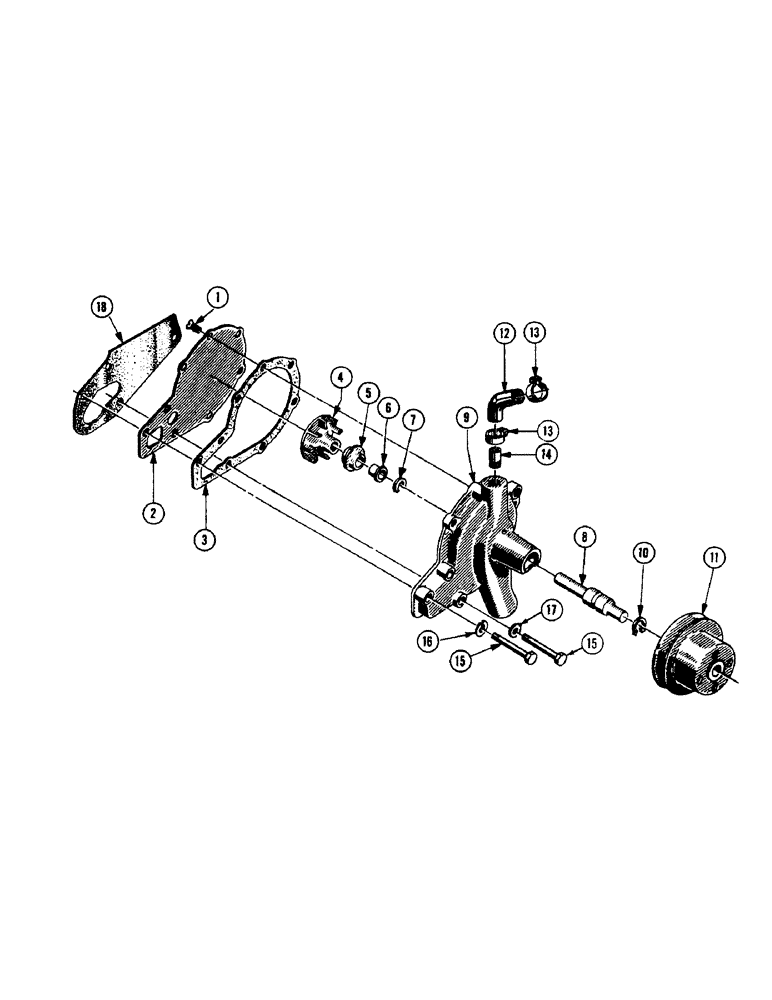

Запчасти Case 500 (018) - WATER PUMP, FAN, FAN BELT, AND PULLEY - GAS, (USED UP TO S/N 3-1-56) (01) - ENGINE

30518

BUSHING

PUMP - water, complete

1шт.

1

10506

SCREW - water pump, Serial Range: cover-body

4шт.

2

10507

GASKET

COVER - water pump

1шт.

3

10508

GASKET - water pump, Serial Range: cover-body

1шт.

4

R3705

KIT

IMPELLER - water pump

1шт.

5

10503

SEAL ASSY.

SEAL - water pump

1шт.

6

10505

SWITCH

SHEDDER - water pump

1шт.

7

R13473

RING, SNAP

RING - bearing seat

1шт.

8

10501

FLANGE

SHAFT - water pump

1шт.

9

10514

BODY - water pump

1шт.

10

10504

GASKET

RETAINER - water pump bearing

1шт.

11

10592

FITTING

HUB - fan

1шт.

12

10589

OLIVE

HOSE - water pump to water outlet elbow

1шт.

13

10615

OLIVE

CLAMP - hose

2шт.

14

10628

NUT

NIPPLE - pipe (3/8 NPT)

2шт.

15

10069

BEARING

SCREW - water pump to engine block

4шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

10298

COPPER WASHER

- copper (3/8)

1шт.

18

10523

BUSHING

GASKET - water pump to engine block

1шт.

30460

"V" BELT - drive (Fan, generator, and water pump) Used on all 400 gas models (Used on all 500 gas models up to 1956) Not shown

1шт.

70890

V-BELT, 0.75" W, Drive, Fan, Generator, and Water Pump, Used on all 500 Gas Models, 1956 Models up to Serial #3000015, Not Shown 0.75" W

1шт.

11585

COIL

"V" BELT - drive (Fan, generator, and water pump) Used on all 500 gas models, serial #3000015 and later (Not shown)

1шт.

30474

SPACER - fan (Not shown)

1шт.

A173040

FAN

- suction (Not shown)

1шт.

A173358

FAN

- pusher (Not shown)

1шт.

10314

LINING

SCREW AND LOCKWASHER - fan to hub (Not shown)

4шт.

R3302

KIT - repair, water pump

1шт.

31175

PUMP - water, complete

1шт.
