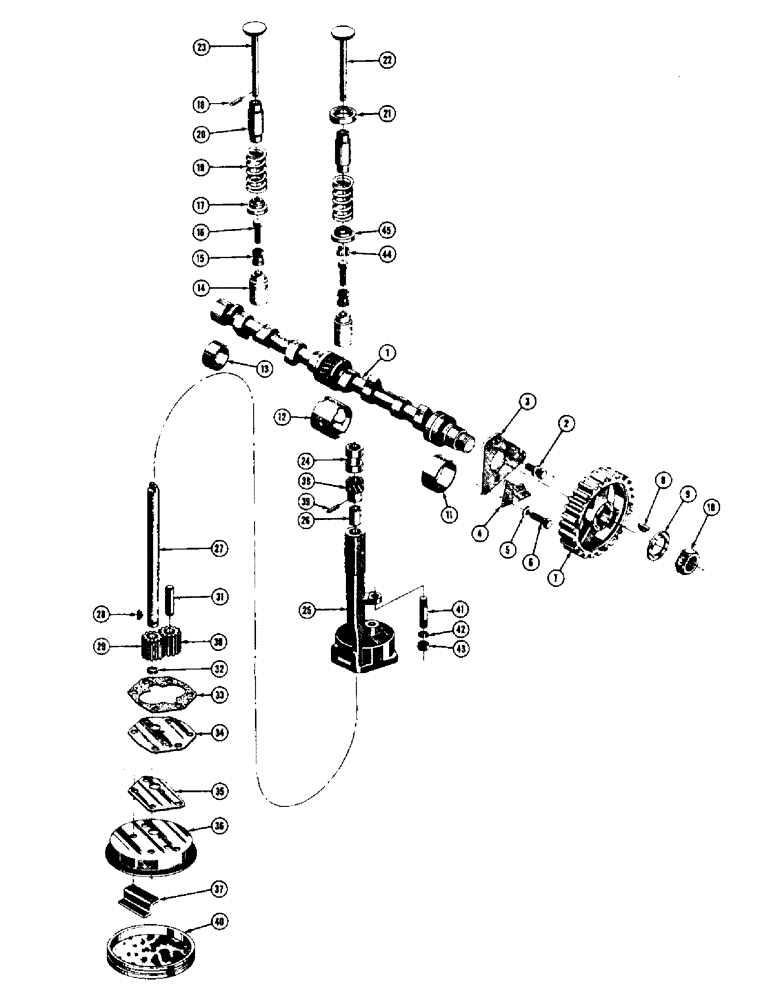

Запчасти Case 500 (016) - CAMSHAFT, VALVES, PUSH RODS, AND GUIDES - GAS (01) - ENGINE

1

10261

CAMSHAFT - (Used on all gas models without a torque converter)

1шт.

10021

SPRING

CAMSHAFT - (Used on all gas models with a torque converter)

1шт.

2

G102128

BOLT

- 3/8 - 16 NC x 1-3/8 (Used with 10261 camshaft)

1шт.

10264

SCREW AND LOCKWASHER - 3/8 - 16 NC x 7/8 (Used with 10021 camshaft)

2шт.

3

10262

PLATE - camshaft thrust

1шт.

4

A10283

HOSE

PLATE - oiler, camshaft timing

1шт.

5

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

6

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

HHCS - 7/16 - 14 NC x 1-1/2

1шт.

7

10281

HOSE

GEAR - camshaft timing

1шт.

8

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

9

10285

BUSHING

LOCK - camshaft nut

1шт.

10

10284

NUT - hex., Serial Range: gear-camshaft

1шт.

5973

KIT - camshaft bushing

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - camshaft front

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - camshaft center

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - camshaft rear

1шт.

R22793

TAPPET

ASS'Y - valve, complete

8шт.

14

10342

TAPPET - valve

1шт.

15

10345

NUT - lock, adjusting screw

1шт.

16

10344

SCREW - adjusting, valve tappet

1шт.

NLS

NO LONGER SERVICED

KIT - seat and lock

4шт.

17

10336

RETAINER - valve spring

4шт.

18

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainer

8шт.

R3298

KIT - valve spring

1шт.

19

5986

SPRING KIT

SPRING - valve, intake and exhaust

8шт.

5992

BEARING

KIT - valve guide

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - valve

8шт.

R3301

KIT - valve insert

1шт.

21

G11930

KNOB

INSERT - exhaust valve seat

4шт.

5984

KIT

- intake valve

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake

4шт.

5982

SNAP RING

KIT - exhaust valve

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE - exhaust

4шт.

24

10065

O-RING

BUSHING - oil pump drive shaft

1шт.

NLS

NO LONGER SERVICED

PUMP ASS'Y - oil, complete (Used on all models with a torque converter)

1шт.

10381

PUMP ASS'Y - oil, complete (Used on all models without a torque converter)

1шт.

25

10382

SEALING RING

BODY ASS'Y - oil pump

1шт.

26

NLS

NO LONGER SERVICED

BUSHING - oil pump body

1шт.

27

BER10385

SEALING RING COLLAR

SHAFT - drive, oil pump

1шт.

28

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

29

NLS

NO LONGER SERVICED

GEAR - driver, oil pump

1шт.

30

10391

GEAR - idler, oil pump

1шт.

31

10392

STUD - oil pump idler gear

1шт.

32

NLS

NO LONGER SERVICED

SNAP RING - oil pump drive gear

1шт.

33

10395

GASKET - oil pump, Serial Range: cover-body

1шт.

34

10394

COVER - oil pump

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Oil pump cover to body (Not shown) Hex, 1/4"-20 x 5/8", G5, Full Thd

6шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

35

10397

BUSHING

GASKET - oil pump cover to strainer

1шт.

36

10396

STOP

FRAME - oil pump strainer

1шт.

37

10398

SPACER - oil pump strainer

1шт.

38

10388

TUBE ASSY.

GEAR - oil pump drive (10381 oil pump)

1шт.

38

10043

GEAR - oil pump drive (34839 oil pump)

1шт.

39

NLS

NO LONGER SERVICED

PIN - 3/16" dia. x 15/16"

1шт.

40

10399

SCREEN ASS'Y - oil pump strainer

1шт.

41

10083

STUD - 3/8 - 16 NC x 1-5/8

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

47862

CLIP

NUT - hex. (3/8 - 16 NC)

1шт.

10403

TUBE - suction, oil pump (Not shown)

1шт.
