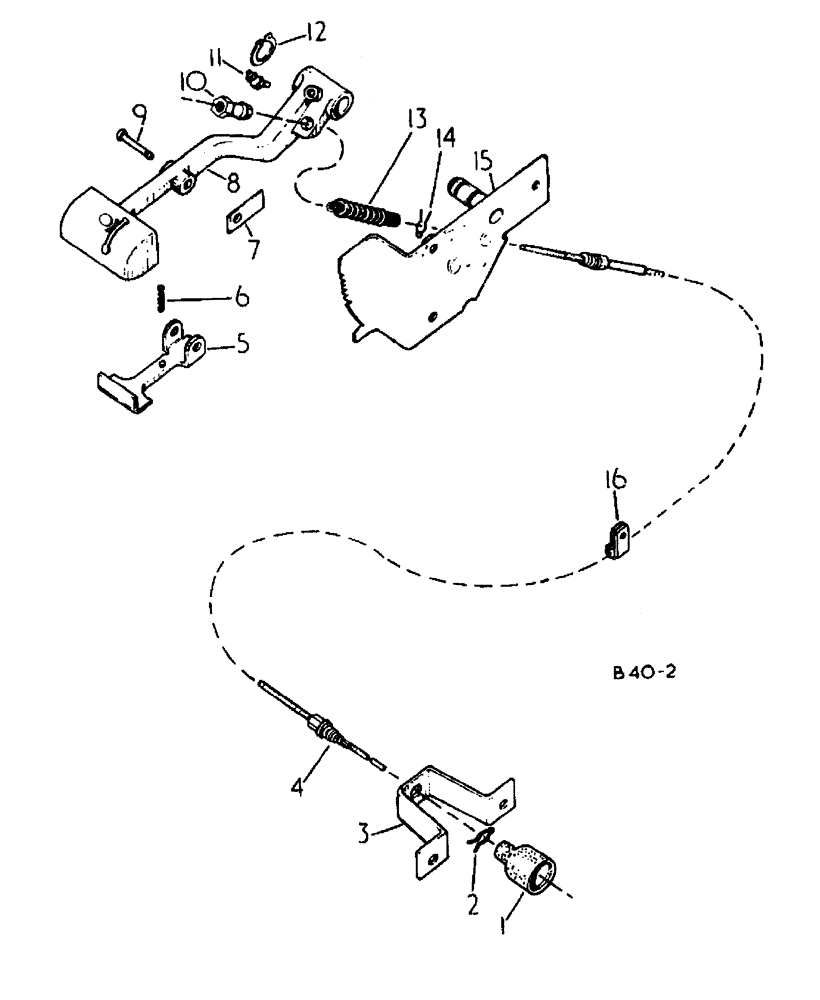

Запчасти Case 500 (04-004) - PARKING BRAKE No Description

1

3114291R1

BOOT

cable, protection

1шт.

2

148150

HAIR PIN COTTER,3/8" Retainer

RETAINER spring

1шт.

3

3114292R1

SPARE PART cable protection

1шт.

4

3114289R92

CABLE

ASSY.

1шт.

5

404493R2

HANDLE

pawl

1шт.

6

402731R1

SPRING

pawl handle

1шт.

7

534318R1

NO LONGER SERVICED

BAR

1шт.

8

402005R3

LEVER

hand, parking brake

1шт.

9

Q1329

HEADED PIN,1/4" x 1 3/4"

slotted head, 1/4 x 1-3/4

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

10

402013R1

NUT

adjustable, pivot

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

11

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

1шт.

12

269181R1

SNAP RING,#75, Ext

#75, Ext

1шт.

13

NSS

NOT SOLD SEPARAT

not applicable

1шт.

14

149150

RETAINER spring

1шт.

15

402001R2

BRACKET

ASSY. parking brake, ratchet

1шт.

3067715R1

SCREW,Hex Soc Flat Hd, 3/8"-16 x 5/8"

head set c/sunk

3шт.

16

140580

NO LONGER SERVICED

CLAMP

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

102635

NUT,3/8"-16, G5

1шт.
