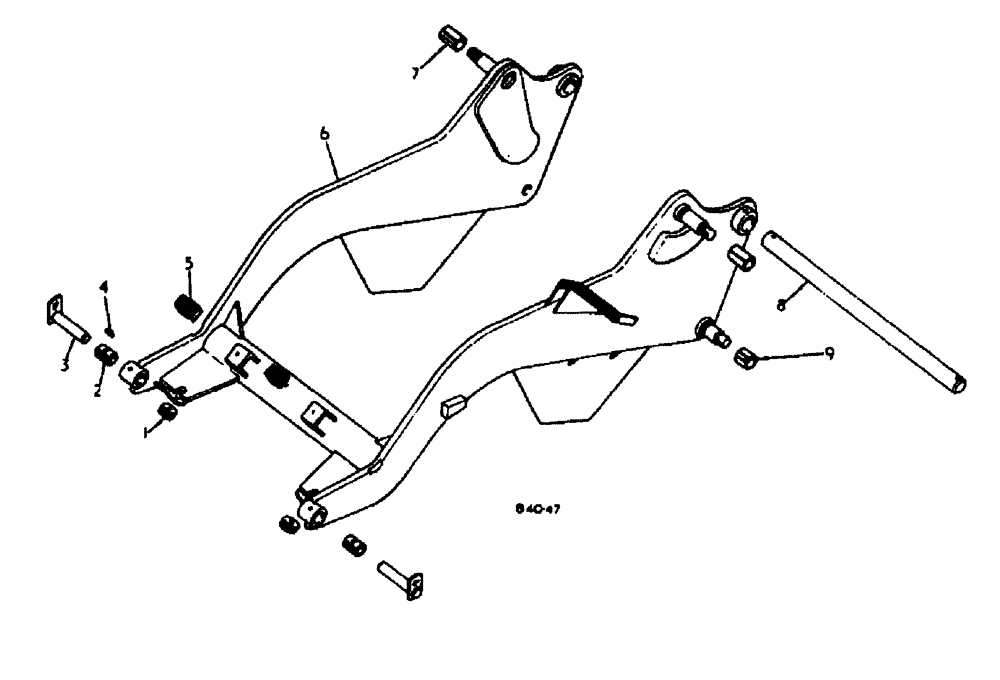

Запчасти Case 500 (17-004) - STANDARD BOOM No Description

1

878363C1

BUMPER

bucket dump

2шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

3063971R1

WASHER

plain, 13/32 x 7/8 x 1/8

2шт.

3063560R1

LOCK NUT

lock, 3/8

2шт.

2

124233H1

BUSHING

SPARE PART

2шт.

3

3049940R1

PIN lock CPTE., w/144059H1, optional

2шт.

3

144059H1

PIN

lock CPTE., w/3049940R1, optional

2шт.

181426

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

SPARE PART hex head, 1/2 UNF x 7/8

2шт.

103323

LOCK WASHER,1/2"

2шт.

106265

WASHER,1/2"

flat, 1-3/8 x 9/16 x .109

2шт.

4

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8 PTF x 90 deg. lub w/109462, optional

2шт.

4

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8 PTF x 90 deg.

2шт.

5

152578H1

BUMPER

ROLL BACK

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065 )

2шт.

6

3114579R91

SPARE PART

BOOM ASSY. CPTE. STD

1шт.

NSS

NOT SOLD SEPARAT

BOOM

1шт.

124233H1

BUSHING

SPARE PART

2шт.

895130H1

BUSHING

SLEEVE

2шт.

895129H1

SLEEVE

SLEEVE

2шт.

7

895129H1

SLEEVE

2шт.

8

144064H1

SHAFT

cross

1шт.

NLS

NO LONGER SERVICED

1/2 UNF x 4 socket head CAP

2шт.

25-118

NUT,1/2"-20, G5

hex, 1/2 UNF

2шт.

103323

LOCK WASHER,1/2"

2шт.

3049941R1

SPARE PART as required

1шт.

9

895130H1

BUSHING

SLEEVE

2шт.
