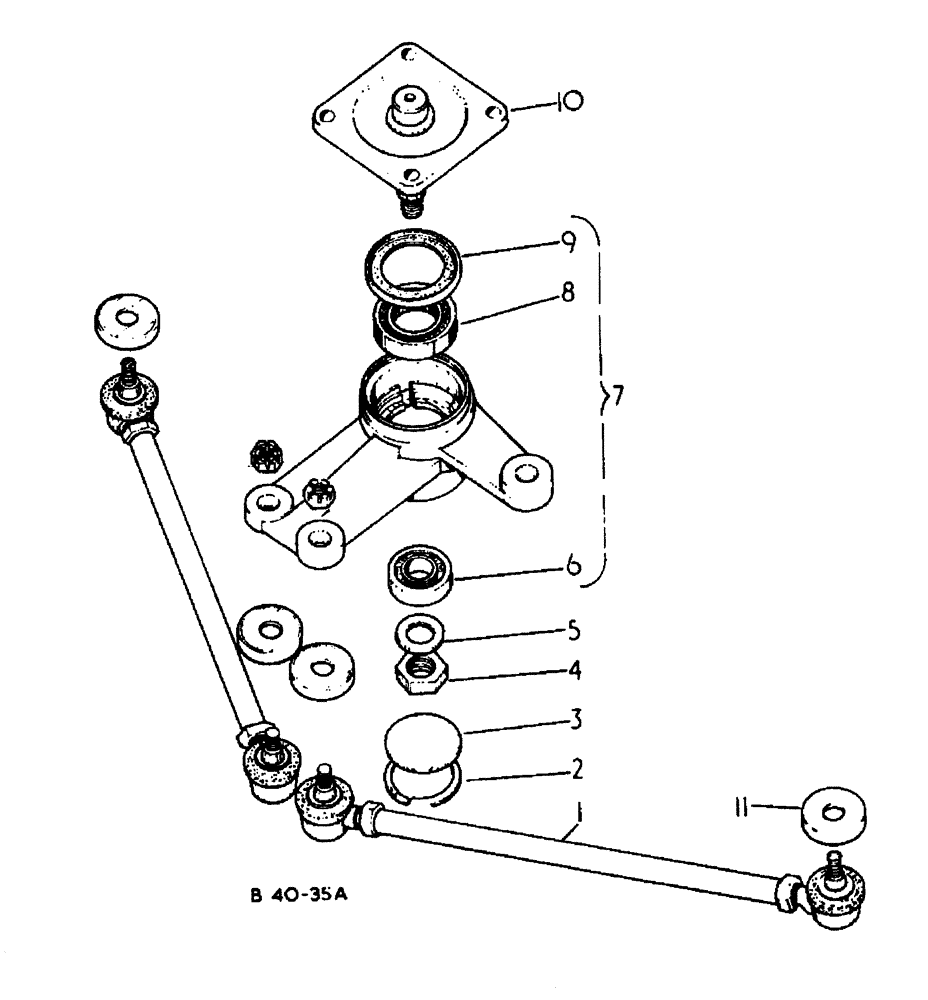

Запчасти Case 500 (14-006) - STEERING LINKAGE No Description

1

3060081R91

ROD

tie CPTE., for components, see list of parts under details tie rod

2шт.

103375

COTTER PIN,3/32" x 1 1/4"

4шт.

2

304834R1

SPARE PART retaining

1шт.

3

144115H1

COVER

dust

1шт.

4

3060134R1

NUT

lock, 7/8 UNF

1шт.

5

103347

WASHER

plain, 15/16 x 1-3/4 x .134

1шт.

6

392674R91

BEARING ASSY,1.125" ID x 2.25" OD x 0.7813, 0.6250"

outer CPTE.

1шт.

7

3114926R91

LEVER

STEERING ASSY., as required

1шт.

8

3049841R91

BEARING

inner CPTE., as required

1шт.

9

3049846R91

OIL RESERVOIR

SEAL

1шт.

9

3110939R91

OIL SEAL

optional

1шт.

10

3060130R1

PIN

swivel, steering bellcrank

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

hex head, 1/2 x 1-3/8

4шт.

103323

LOCK WASHER,1/2"

4шт.

11

3065195R1

CAP

SPARE PART protection tie rod rubber boot

4шт.

11002VA

WASHER

17/32 x 7/8 x .065, as required

1шт.
