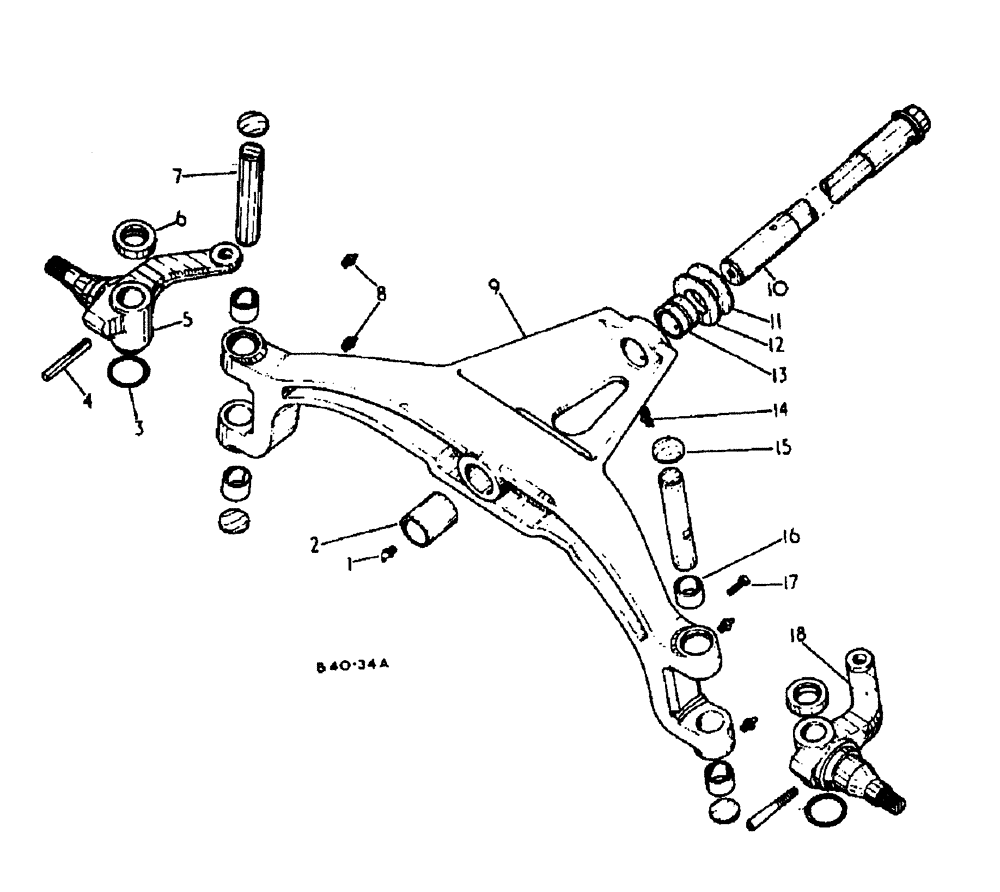

Запчасти Case 500 (14-004) - STEERING AXLE No Description

1

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8 NPTF 90 deg., extra short

2шт.

1

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8 NPTF 90 deg. extra short, optional

2шт.

2

3114515R1

SPARE PART

BUSHING front

1шт.

3

259771R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

1-3/4 x 2-1/8 x 3/16

2шт.

4

102416H1

HOLDER

PIN taper

2шт.

25-118

NUT,1/2"-20, G5

hex, 1/2 UNF

2шт.

103323

LOCK WASHER,1/2"

2шт.

5

3049820R91

AXLE

SPARE PART STUD w/steering arm, R.H. CPTE.

1шт.

6

50738V

THRUST BEARING

thrust

2шт.

7

144042H1

PIN

king

2шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

4шт.

9

3114512R91

ARM

AXLE steering CPTE.

1шт.

10

3124477R1

SPARE PART

PIN pivot axle

1шт.

22435R1

BOLT,Hex, 3/8"-16 x 3", G8

hex head, 3/8 x 3

1шт.

231-1446

NUT,3/8" - 16, Gr 5

1шт.

11

134639H1

SPACER

as required

1шт.

12

894573H1

SPACER

as required

1шт.

13

3114514R1

SPARE PART

BUSHING rear

1шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NPTF

4шт.

14

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

Optional

4шт.

15

172576

PLUG,Exp, 1 5/8"

expansion, 1-5/8 dia.

4шт.

16

3114516R1

SPARE PART

BUSHING king pin

4шт.

17

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

hex head, 3/8-16 x .75

1шт.

28035R1

WASHER, 13/32 x I x .22, as required

1шт.

18

3049819R91

AXLE

STUD w/steering arm, L.H. CPTE.

1шт.

104940

PLUG

cork no. 4, not illustrated

2шт.
