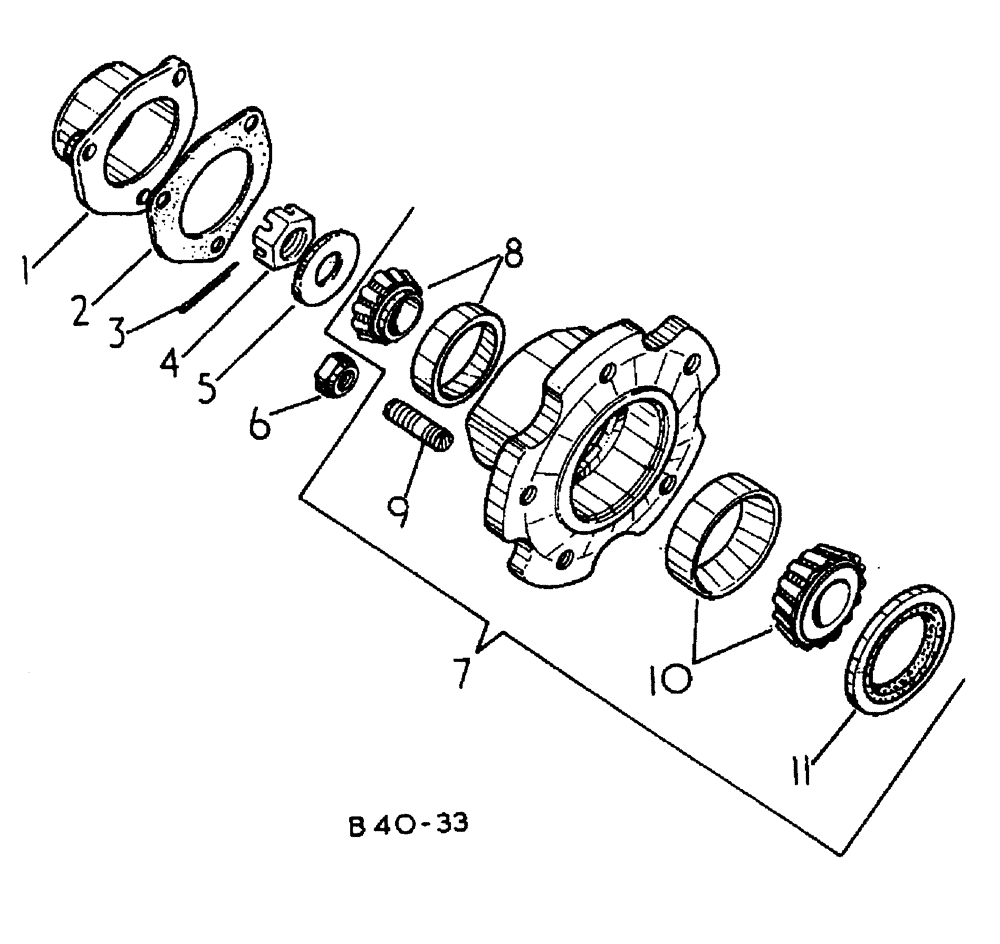

Запчасти Case 500 (14-002) - STEERING AXLE -HUB AND CAP No Description

1

704021R1

CAP

hub

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

2

703921R1

GASKET

hub cap

2шт.

3

103398

COTTER PIN,5/32" x 1 1/2"

2шт.

4

427645

SLOTTED NUT,7/8"-14, G5

hex slotted, 7/8 UNF

2шт.

5

103347

WASHER

plain,15/16 x 1/3/4 x .134

2шт.

6

483879R1

NUT

hex special

10шт.

7

3114521R91

HUB

SPARE PART SERVICE ASSY. w/oil seal 3049846R91, as required

1шт.

8

392674R91

BEARING ASSY,1.125" ID x 2.25" OD x 0.7813, 0.6250"

outer CPTE., as required

1шт.

9

3114520R1

STUD

10шт.

10

3049841R91

BEARING

inner CPTE., as required

1шт.

11

3049846R91

OIL RESERVOIR

SEAL

2шт.

11

3110939R91

OIL SEAL

optional

2шт.
