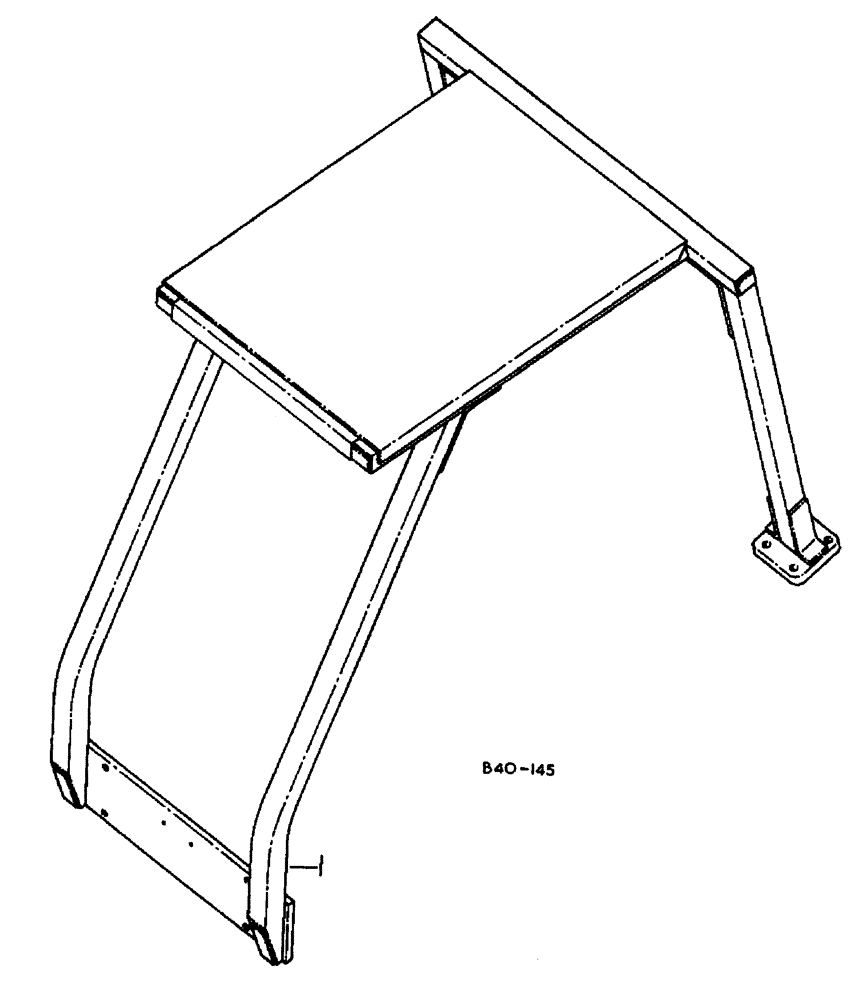

Запчасти Case 500 (13-016) - FRAME - FOUR POST R.O.P.S.- No Description

1

3124450R1

FRAME

ASSY., four post R.O.P.

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

4шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

hardened, 5/8

4шт.

25528R1

NUT,5/8"-11, G8

hex, 5/8, front plate mounting

4шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

2шт.

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

2шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

4шт.

25528R1

NUT,5/8"-11, G8

hex, 5/8, rear post mounting

4шт.
