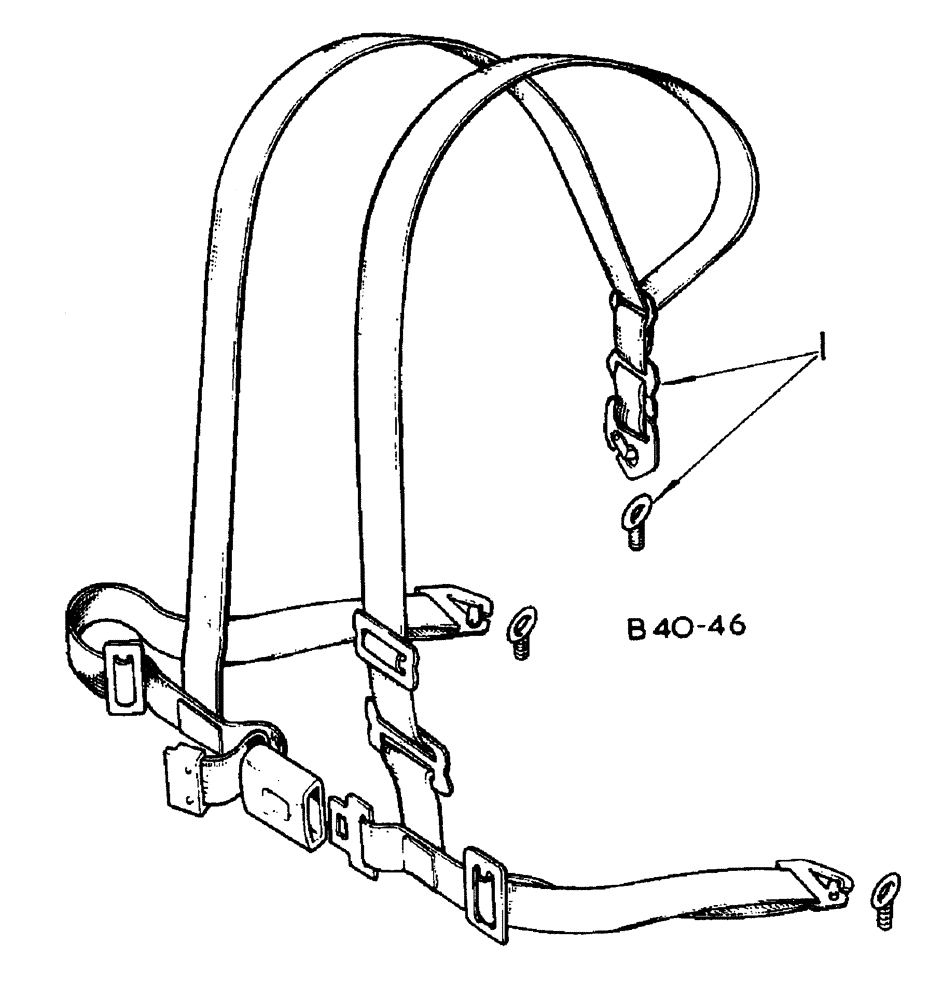

Запчасти Case 500 (13-012) - SEAT HARNESS, ROLL OVER PROTECTION SYSTEM No Description

1

3114587R1

HARNESS

seat

1шт.

271505

BODY

hex, 7/16 UNF

3шт.

103322

LOCK WASHER,7/16"

Two post mounting

3шт.

LEC271506

SHIM

hex, 7/16 UNF

3шт.

120303

WASHER lock, 7/16 four post mounting

3шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex head, 3/8 x 1-1/4

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

Fuel pipe clip mounting four post

1шт.

1213546C1

SPARE PART graphic, seat belt and R.O.P.S., two post

1шт.

1213576C1

PRODUCT-GRAPHIC, seat belt and R.O. P.S., four post

1шт.

1135007R1

PRODUCT GRAPHIC

caution explosive

1шт.

NSS

NOT SOLD SEPARAT

ATMOSPHERE INSTRUCTIONS four post R.O.P.S. standard U.S.A.

1шт.

68554C1

PRODUCT GRAPHIC

PLATE R.O.P.S. model

1шт.

113231

SCREWDRIVER,Drive, #6 x 1/4"

RD head drive four post R.O.P.S.

2шт.
