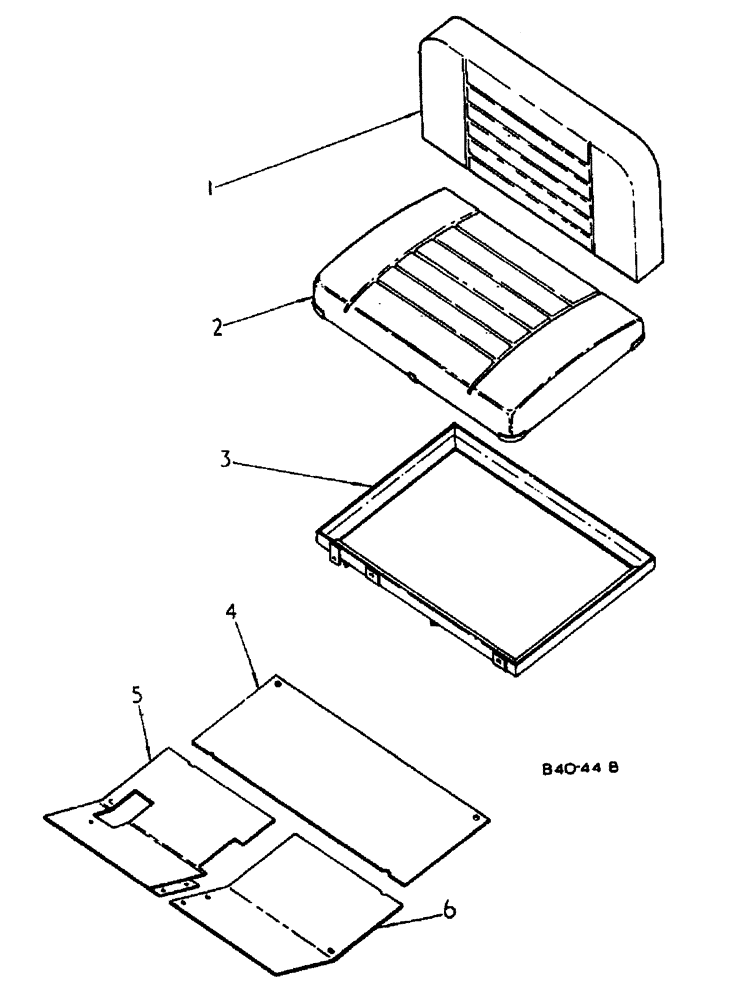

Запчасти Case 500 (13-010) - SEAT AND FOOT PLATES No Description

1

3114363R1

SPARE PART

CUSHION seat back

1шт.

1

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

2

3114362R1

CUSHION

SPARE PART CUSHION seat bottom

1шт.

3

3114360R1

FRAME

seat CPTE. diesel

1шт.

3

895499H1

FRAME seat CPTE. petrol

1шт.

3

3060068R91

FRAME

seat CPTE. LPG

1шт.

3

3117519R1

FRAME

seat CPTE., german and french machines noise reduction package

1шт.

25-114

NUT,1/4"-28, G5

hex, 1/4 UNF

4шт.

103319

LOCK WASHER,1/4"

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

4шт.

188739

SPARE PART 1/4 UNF x 1 flat head slotted

1шт.

NSS

NOT SOLD SEPARAT

MACH

4шт.

4

3114364R1

PLATFORM

rear

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .065

2шт.

5

3114366R2

PLATFORM CPTE. front, R.H., Serial Range: up-500/1282

1шт.

5

3120255R1

SPARE PART CPTE. front, R.H., 500/1283 up

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .065

1шт.

6

3114365R1

PLATFORM

front, L.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

3шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .065 cad or zinc

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Not Illustrated

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

Not Illustrated

3шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .065, used for securing all platforms together, not illustrated

3шт.
