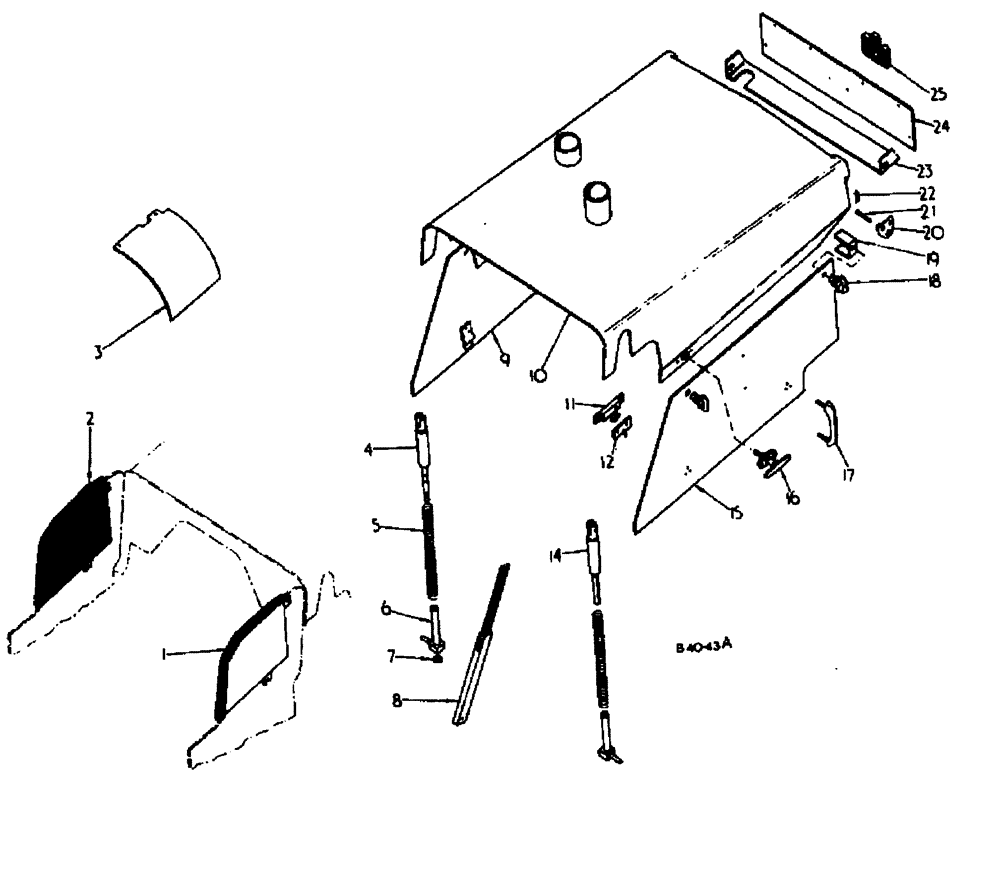

Запчасти Case 500 (13-002) - HOOD SHEET AND FASTENINGS No Description

1

3115583R1

PROTECTOR

arm, L.H.

1шт.

2

3115584R1

PROTECTOR

arm, R.H.

1шт.

3

3110838R2

SPARE PART

COVER starter motor, diesel

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

hex head, 1/4 x 3/4

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .036

2шт.

4

3114485R1

GUIDE

CPTE., hood actuating spring rod R.H.

1шт.

16807R1

PIN

3/8 dia. x 1-11/32, rod end

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

5

3114480R1

SPRING

hood actuating

2шт.

6

3114477R1

SPARE PART

GUIDE CPTE., hood actuating spring

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

4шт.

107762

WASHER,3/32" x 5/8"

2шт.

7

3063560R1

LOCK NUT

lock, 3/8

1шт.

8

3114475R1

SPARE PART

ROD stay

1шт.

3114476R1

PIN

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .051

2шт.

9

3115566R91

SHEET

CPTE., rear side R.H., petrol and L.P.G.

1шт.

9

3114490R91

SHEET

CPTE., rear side R.H., diesel

1шт.

9

3127791R91

SHEET

CPTE., rear side R.H., cooling package attachment

1шт.

10

3114446R92

SHEET

HOOD WELDED ASSY., diesel and petrol

1шт.

10

3114461R91

SPARE PART

SHEET HOOD WELDED ASSY., L.P.G.

1шт.

3114434R

NUT U type, captive

6шт.

3114459R1

NUT

no.10

4шт.

3114460R1

NUT

5/16

4шт.

11

3114471R1

LOCK

hood sheet hold down

2шт.

23677R1

SCREW

5/16 x 1/2 pan head slotted

1шт.

NSS

NOT SOLD SEPARAT

M/C

4шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

4шт.

12

3114472R1

PLATE

CPTE. hood, hold down, catch

2шт.

3063560R1

LOCK NUT

lock, 3/8

4шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

20285H

WASHER

flat, 13/32 x 3/4 x 11 gallon

6шт.

13

NSS

NOT SOLD SEPARAT

not used

1шт.

14

3114481R1

GUIDE

CPTE., hood actuating spring rod

1шт.

NSS

NOT SOLD SEPARAT

R.H.

1шт.

16807R1

PIN

PIN, 3/8 x 1-11/32 rod end

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

15

3114489R91

SHEET

CPTE., rear side, L.H.

1шт.

15

3127790R91

SHEET

CPTE., rear side, L.H., cooling package attachment

1шт.

16

3114470R2

HANDLE

tee hood sheet

2шт.

147840

SCREW,Cross Rec Oval Hd, #10 - 24 x 3/4"

no. 10-24 x 3/4 oval head CR REC

1шт.

NSS

NOT SOLD SEPARAT

M/C

4шт.

17

3115971R1

HANDLE

side sheet

2шт.

436699

SCREW,Slotted Pan Hd, #8-32 x 1"

no. 8-32 PAN head slotted M/C

4шт.

138530

LOCK WASHER,Int Tooth, #8

4шт.

121841

LOCK WASHER,#8

4шт.

120622

NUT,#8-32

4шт.

18

3114492R1

STUD

4шт.

3114493R1

DISC

retaining

4шт.

19

3114496R1

WASHER

RETAINER CPTE., side sheet, L.H.

1шт.

19

3114497R1

RETAINER

CPTE., side sheet, R.H.

1шт.

20

3114463R91

BRACKET

hood sheet pivot CPTE.

2шт.

3114398R1

NUT

3/8

4шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

4шт.

21

3114468R1

PIN

hood sheet pivot

2шт.

22

3114469R1

SPLIT PIN/SAFETY PIN

CLIP spring retaining

2шт.

23

3114503R1

BAFFLE

radiator

1шт.

24

3114488R1

PANEL

rear hood

1шт.

3114444R1

SCREW

no. 10 spire x 1/2 long

6шт.

446162

WIRE CONNECTOR

13/64 x 15/32 x .036

6шт.

25

2751848R1

PRODUCT GRAPHIC

I.H.

1шт.

260-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

no. 10 spire x 1/2 long used w/2751848R1

4шт.

25

2751845R1

DECAL

I.H.

1шт.

436729

SCREW,Slotted Pan Hd, #10-24 x 5/16"

no. 10-24 x 5/16, used w/ 2751845R1

4шт.
