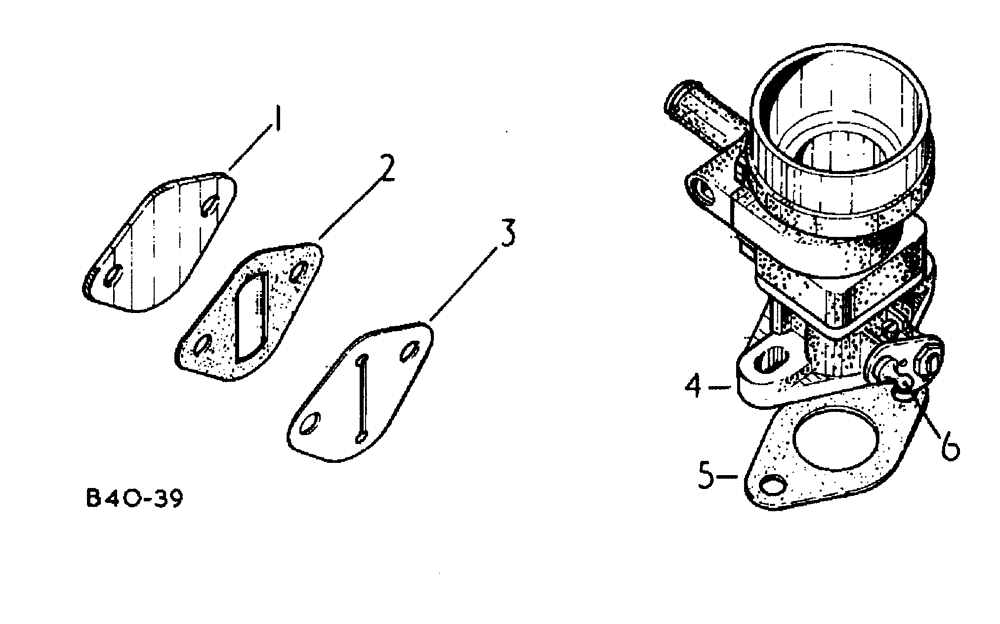

Запчасти Case 500 (12-150) - CARBURETOR AND FUEL FEED PUMP L.P.G. No Description

1

3043077R1

COVER

feed pump opening

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

2

3061658R1

GASKET

fuel pump

1шт.

3

3043370R1

GASKET

fuel pump

1шт.

4

3114626R91

CARBURETOR

CPTE.

1шт.

425-115

NUT,5/16"-24, G5

2шт.

103320

LOCK WASHER,5/16"

2шт.

5

3047295R91

GASKET

carburettor

1шт.

6

706204R1

SPARE PART ball

1шт.

3109957R1

BODY

Venturi, not illustrated

1шт.

3109960R1

FEEDER

FITTING gas, not illustrated

1шт.

3109961R1

JET

main, not illustrated

1шт.

3109958R1

TUBE throttle CPTE.

1шт.

3109959R1

VENTURI

1шт.
