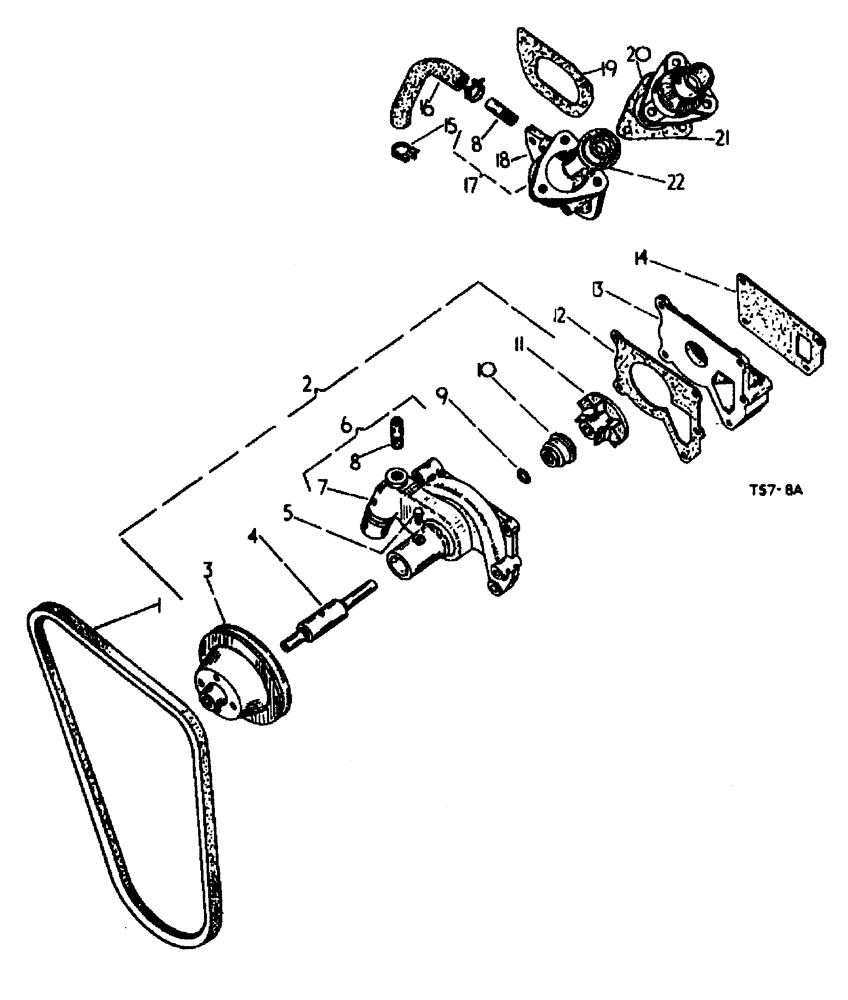

Запчасти Case 500 (12-146) - WATER PUMP AND THERMOSTAT PETROL ENGINE No Description

1

3114625R1

BELT,0.50" W

Fan and generator

1шт.

2

3047280R92

SPARE PART

PUMP CPTE., water

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

3шт.

3

3047282R1

PULLEY

fan and generator drive

1шт.

4

704217R91

NO LONGER SERVICED

BEARING water pump spindle

1шт.

4

3042304R91

BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"

water pump spindle

1шт.

4

3042676R91

CRANKSHAFT BEARING

water pump spindle

1шт.

5

704218R1

BOLT,1/4" - 20 x 1/2"

water pump bearing retainer

1шт.

103319

LOCK WASHER,1/4"

1шт.

6

3047281R11

BODY w/body 3047281R1, and TUBE 3065123R1 ASSY., water pump

1шт.

7

3047281R1

SPARE PART

BODY water pump

1шт.

8

3065123R1

TUBE

thermostat by-pass connecting

2шт.

9

704219R2

WASHER

SLINGER water pump spindle leak

1шт.

NSS

NOT SOLD SEPARAT

WATER

1шт.

10

703822R91

SEAL

water pump

1шт.

11

NSS

NOT SOLD SEPARAT

7999R2 impeller, water pump

1шт.

12

3047283R1

GASKET

water pump body

1шт.

13

3047284R1

COUPLING, BREAK AWAY

water pump

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex head, 3/8 x 3-308

1шт.

103321

LOCK WASHER,3/8"

4шт.

703832R1

STUD

water pump

4шт.

14

3047285R1

GASKET

coupling to crankcase water

1шт.

NSS

NOT SOLD SEPARAT

PUMP

1шт.

15

3074617R1

CLAMP

thermostat by-pass hose

2шт.

16

3065131R1

HOSE

thermostat by-pass

1шт.

17

3065124R11

HOUSING

w/tube 3065123R,1 and housing 3065124R1 CPTE.

1шт.

NSS

NOT SOLD SEPARAT

THERMOSTAT

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

3шт.

18

3065124R1

HOUSING

thermostat

1шт.

19

703815R1

GASKET

thermostat housing

1шт.

20

3065126R1

COVER

thermostat housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

3шт.

21

3065125R1

GASKET

thermostat housing cover

1шт.

22

3042303R91

THERMOSTAT

THERMOSTAT 170 deg.- 199 deg.

1шт.
