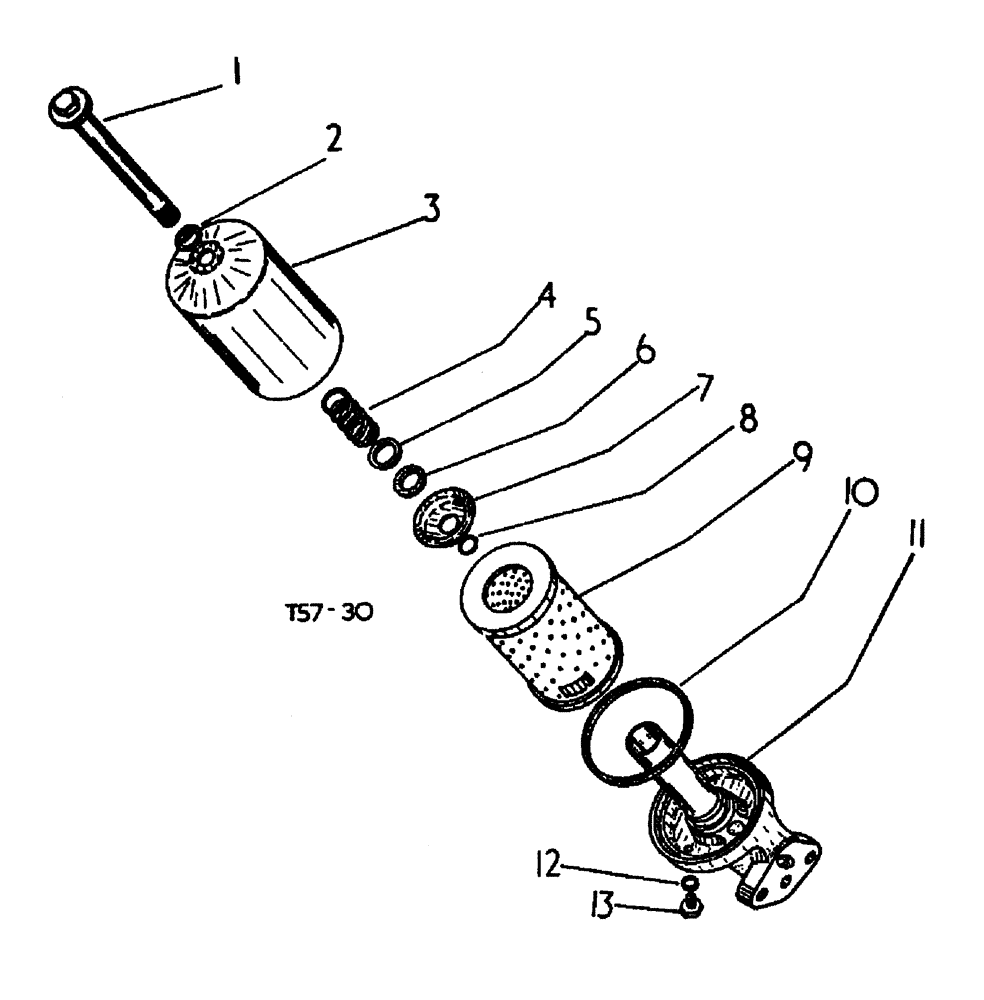

Запчасти Case 500 (12-144) - LUBRICATING OIL FILTER PETROL ENGINE UP TO 500/567 No Description

3066823R91

FILTER

ASSY., lubricating oil

1шт.

1

3068650R91

BOLT ASSY. C

1шт.

2

3068646R1

RING

sealing

1шт.

3

3068651R91

SUMP ASSY.

1шт.

4

3068647R1

SPRING

1шт.

5

3068649R1

WASHER

1шт.

6

3066648R1

SEAL

1шт.

7

703782R1

GUIDE

element

1шт.

8

3068645R1

RING

snap

1шт.

9

3110452R91

ENGINE OIL FILTER

ELEMENT, FILTER ASSY. w/seal 707859R1

1шт.

NSS

NOT SOLD SEPARAT

SEAL, 3067728R91

1шт.

9

3066852R91

FILTER, ELEMENT

ELEMENT, FILTER PACKAGE element w/3 seal 3067728R91, and 707859R1, as required

1шт.

10

3067728R91

GASKET

SEAL head

1шт.

11

3068652R91

BASE and TUBE ASSY.

1шт.

12

3068654R1

GASKET

1шт.

13

3068653R1

PLUG drain

1шт.

707859R1

SEALING RING

not illustrated

1шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

hex head, 3/8 x 4-1/4, not illustrated

2шт.

103321

LOCK WASHER,3/8"

Oil filter fixing, Not illustrated

2шт.

706592R2

GASKET

lubricating oil filter base, not illustrated

1шт.
