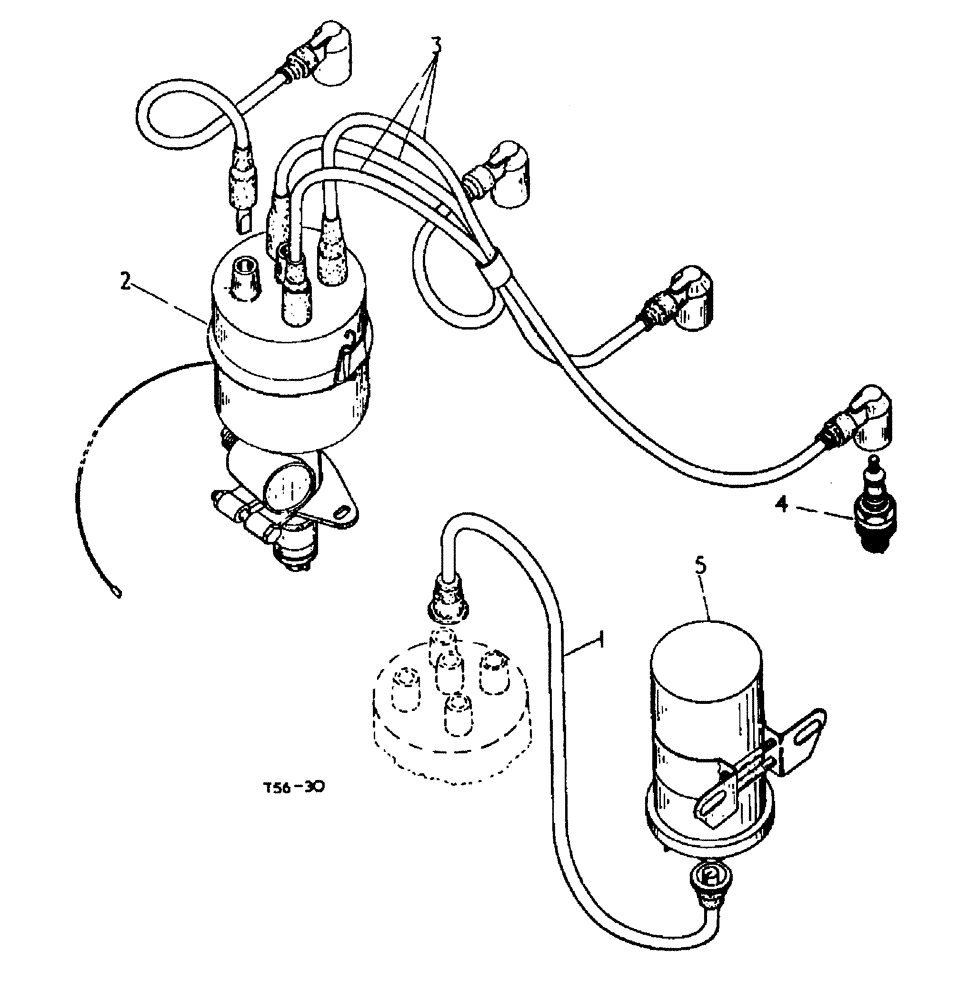

Запчасти Case 500 (12-136) - IGNITION SYSTEM PETROL ENGINE No Description

1

3068975R91

CABLE

CPTE., high tension ignition

1шт.

NSS

NOT SOLD SEPARAT

COILTO DISTRIBUTOR

1шт.

2

NSS

NOT SOLD SEPARAT

DISTRIBUTOR w/tacho drive CPTE., for components, see list of parts under details distributor w/tacho drive

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex head, 1/4 x 3/4

2шт.

103319

LOCK WASHER,1/4"

2шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 gallon

2шт.

3

3068978R91

CABLE

ASSY. 1, 2, 3, and 4, spark plug, as required

1шт.

4

3044229R91

SPARK PLUG

14 mm third 1/2 reach

1шт.

NSS

NOT SOLD SEPARAT

SPARK

4шт.

5

3068974R91

COIL

SPARE PART CPTE., ignition

1шт.

3065310R1

SPARE PART TERMINAL faston

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

895802H1

BRACKET coil support, not illustrated

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Not Illustrated

2шт.

103321

LOCK WASHER,3/8"

Not Illustrated

2шт.
