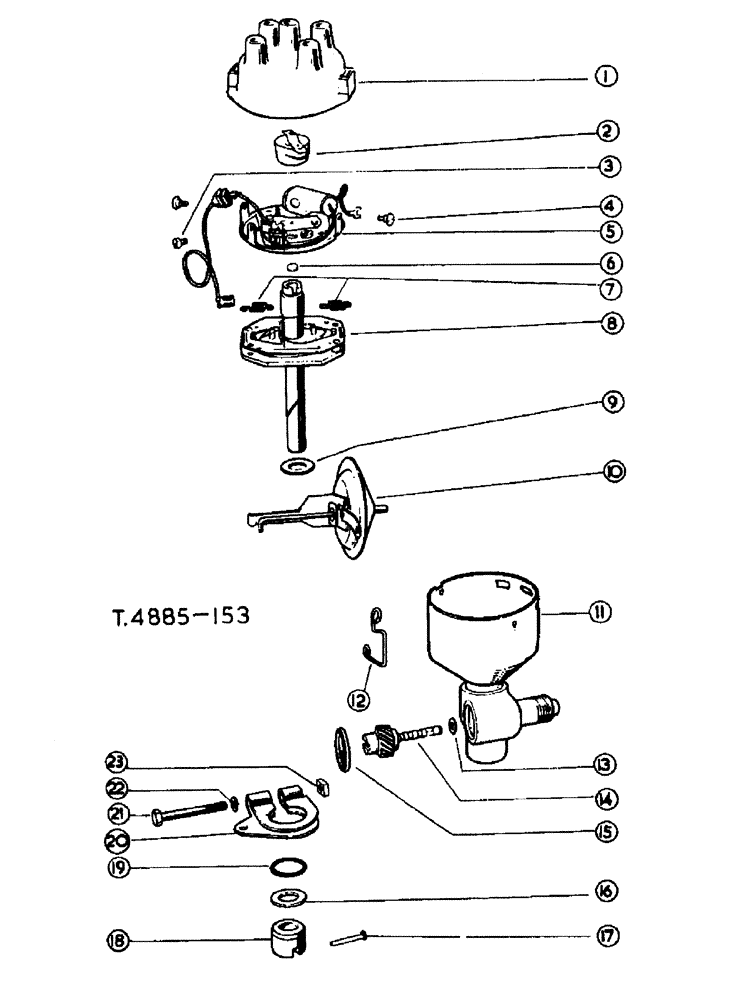

Запчасти Case 500 (12-132) - DISTRIBUTOR W/TACHO DRIVE PETROL ENGINE No Description

1

3069777R1

CAP

distributor

1шт.

2

3069778R1

ROTOR

1шт.

3

3073004R1

SCREW

breaker plate mtg.

1шт.

4

3069786R1

SCREW

cap clip

2шт.

5

3072997R91

BREAKER

CIRCUIT ASSY., for components, see list of parts under detail circuit breaker

1шт.

6

3069781R1

SPARE PART felt oil

1шт.

7

3069783R91

SPRING

advance weight set

1шт.

8

3073007R91

SHAFT

SPARE PART and CAM ASSY.

1шт.

9

3069784R1

SPARE PART

1шт.

10

NSS

NOT SOLD SEPARAT

not used

1шт.

11

3074039R91

SPARE PART ASSY.

1шт.

12

3069785R1

CLIP

cap

2шт.

13

3069788R1

WASHER

drive gear thrust

1шт.

14

3069789R1

GEAR

SPARE PART drive

1шт.

15

3069790R1

PLUG

1шт.

16

3069793R1

WASHER

shaft lower

1шт.

17

3069795R1

SPARE PART coupling

1шт.

18

3069794R1

COUPLING, BREAK AWAY

SPARE PART

1шт.

19

3069792R1

SEALING RING

RING oil

1шт.

20

3069791R91

SPARE PART HOUSING ASSY. w/bolt 3069796R1, nut 3069797R1, and washer 121637

1шт.

21

3069796R1

SPARE PART clamp

1шт.

22

121637

LOCK WASHER

1/4

1шт.

23

3069797R1

NUT

clamp bolt

1шт.
