(12-124) - CARBURETOR PETROL ENGINE

Запчасти Case 500 (12-124) - CARBURETOR PETROL ENGINE No Description

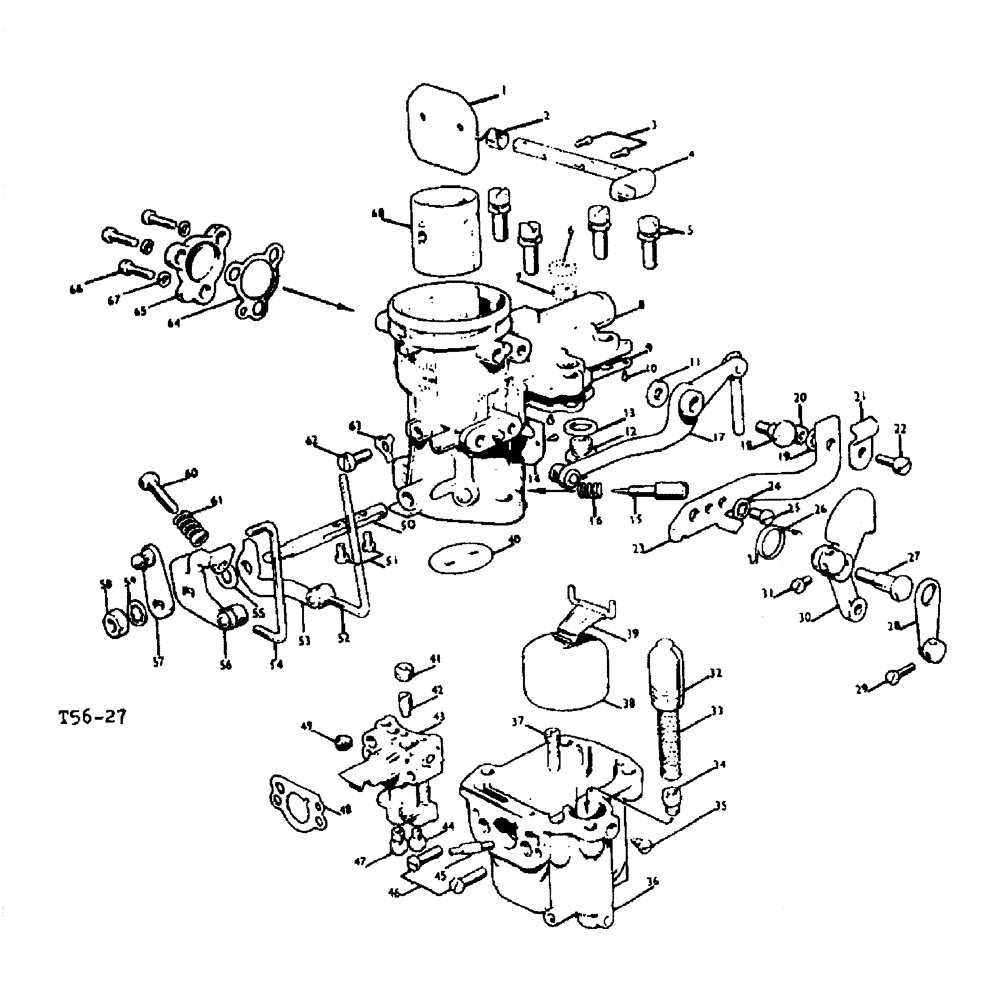

Схема запчастей Case 500 - (12-124) - CARBURETOR PETROL ENGINE No Description
36
29
51
64
10
47
48
6
62
31
18
2
68
39
61
45
37
7
11
33
32
60
46
20
41
16
43
65
27
40
67
23
44
24
56
35
58
25
22
34
49
53
57
9
66
17
3
8
1
14
4
15
5
19
52
50
30
28
42
13
38
54
55
63
59
12
26
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3063945R91

CARBURETOR

1шт.

1

3047486R1

SPARE PART strangler

1шт.

2

3047485R1

SPRING

automaticity

1шт.

3

700659R1

SCREW

strangler flap

2шт.

4

3047483R91

LEVER

SPINDLE and LEVER ASSY., strangler

1шт.

3047484R1

WASHER

1шт.

5

3047465R91

SCREW

and SPRING WASHER, fixing, Serial Range: bowl-barrel

4шт.

6

3065056R1

SPARE PART

1шт.

7

3065055R1

WASHER

felt

1шт.

8

3065060R91

SPARE PART BODY ASSY., carburettor

1шт.

9

3065054R1

GASKET

float chamber cover

1шт.

10

3047467R1

SPARE PART parker

4шт.

11

3065062R1

SPARE PART pump pivot screw

1шт.

12

3047508R91

SEAT

needle

1шт.

13

3047462R1

WASHER

needle seating

1шт.

14

3047468R1

GASKET

vertical bowl face

1шт.

15

3047499R1

SCREW

volumn control

1шт.

16

3047500R1

SPRING

1шт.

17

3065059R91

SPARE PART and ROD ASSY., pump

1шт.

3062698R1

SHROUD

SEAL bellows

1шт.

18

3065061R1

SCREW

pump pivot

1шт.

19

3047490R1

SPARE PART shakeproof

1шт.

20

3047489R1

SPARE PART

1шт.

21

3047487R1

SPARE PART

1шт.

22

3047488R1

SPARE PART

1шт.

23

3047491R91

SPARE PART CPTE. ASSY., strangler

1шт.

24

3047490R1

SPARE PART shakeproof

1шт.

25

3047492R1

SPARE PART

1шт.

26

3047494R1

SPRING

SPRING

1шт.

27

3047495R1

SCREW

journal

1шт.

28

3047498R91

SPARE PART strangler control

1шт.

29

3047497R1

SPARE PART swivel

1шт.

30

3047493R91

LEVER

strangler control

1шт.

31

3047496R1

SPARE PART interconnection swivel

1шт.

32

3065050R1

PISTON

pump

1шт.

33

3065051R1

SPRING

pump piston

1шт.

34

3065049R1

VALVE

pump check

1шт.

35

3065052R1

SPARE PART piston retaining

1шт.

36

3065048R1

SPARE PART carburettor

1шт.

37

3065053R1

VALVE

pump discharge

1шт.

38

3047463R91

FLOAT

1шт.

39

3047464R91

ARM

and PIVOT, float

1шт.

40

3047478R1

THROTTLE

VALVE

1шт.

41

3047507R1

PLUG

overflow running jet

1шт.

42

3047506R1

JET

slow running

1шт.

43

3047459R1

SPARE PART emulsion

1шт.

44

3048469R1

JET

compensating

1шт.

45

3065067R1

JET

pump

1шт.

46

3047461R1

SPARE PART emulsion block

2шт.

47

708396R1

JET

main

1шт.

48

3047460R1

GASKET

emulsion block

1шт.

49

3047505R1

SCREW

SPARE PART ventilation

1шт.

50

3047470R1

SPINDLE

throttle

1шт.

51

3047479R1

SCREW

throttle

2шт.

52

3047476R1

SPARE PART interconnection

1шт.

53

3047475R91

SPARE PART floating

1шт.

54

3047058R1

BLADE

LINK pump

1шт.

55

3047477R1

SPARE PART for spindle

1шт.

56

3065057R1

STOP

throttle

1шт.

57

3047472R91

SPARE PART and BALL JOINT throttle

1шт.

58

3047473R1

SPARE PART throttle spindle

1шт.

59

3047474R1

SPARE PART shakeproof

1шт.

60

3047480R1

SPARE PART stop throttle

1шт.

61

700632R1

SPRING

stop throttle

1шт.

62

3047482R1

SPARE PART choke tube

1шт.

63

3047481R1

SPARE PART tab

1шт.

64

3065063R1

GASKET

1шт.

65

3065064R1

PLATE

blanking economy

1шт.

66

3065065R1

SPARE PART

3шт.

67

3065066R1

SPARE PART lock

3шт.

68

3048467R1

SPARE PART choke

1шт.

3106595R91

CARBURETOR

CPTE., not illustrated

1шт.

3063945R91

CARBURETOR

CPTE., not illustrated

1шт.

3062698R1

SHROUD

excess shaft, not illustrated

1шт.

3065055R1

WASHER

felt, not illustrated

1шт.

Выбрано товаров: 75
