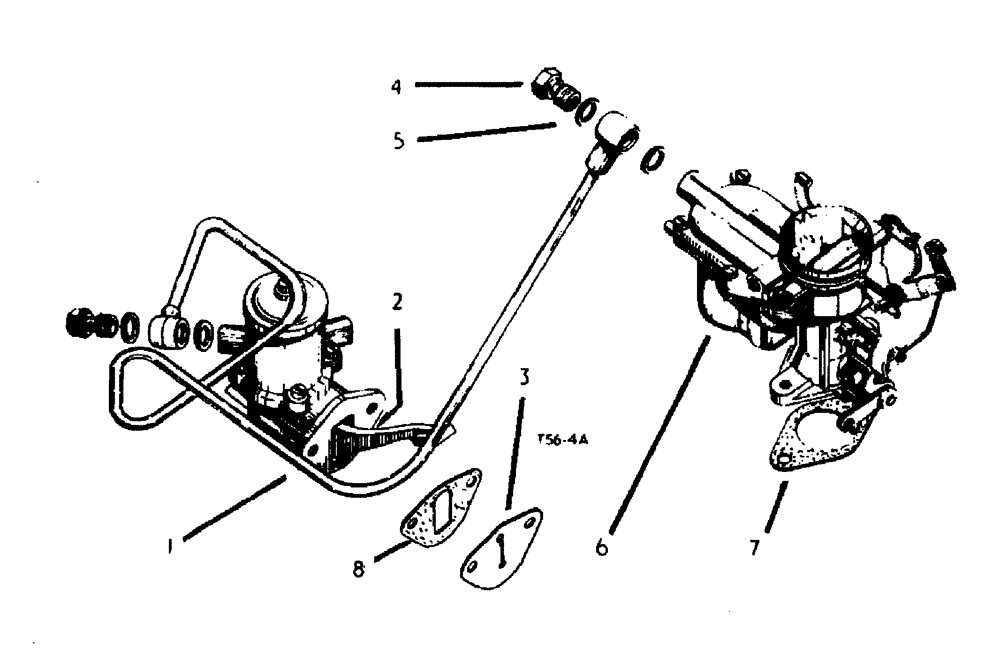

Запчасти Case 500 (12-122) - CARBURETOR, FUEL PUMP AND PETROL ENGINE No Description

1

NSS

NOT SOLD SEPARAT

PUMP ASSY. fuel for components, see list of parts under details fuel feed pump

1шт.

3063872R1

BOLT

head socket, 5/16 x 3/4 12 point

1шт.

NSS

NOT SOLD SEPARAT

RING

2шт.

2

3044198R94

PIPE

SPARE PART CPTE., fuel, Serial Range: pump-carburettor

1шт.

3

3043370R1

GASKET

fuel pump

1шт.

4

708296R1

CONNECTOR, ELEC

CONNECTOR BOLT banjo

2шт.

5

708297R1

GASKET

WASHER banjo inlet and outlet

4шт.

6

NSS

NOT SOLD SEPARAT

CARBURETOR CPTE. for components, see list of parts under details carburettor

1шт.

425-115

NUT,5/16"-24, G5

2шт.

103320

LOCK WASHER,5/16"

2шт.

7

3047295R91

GASKET

carburettor

1шт.

8

3061658R1

GASKET

fuel pump

1шт.
