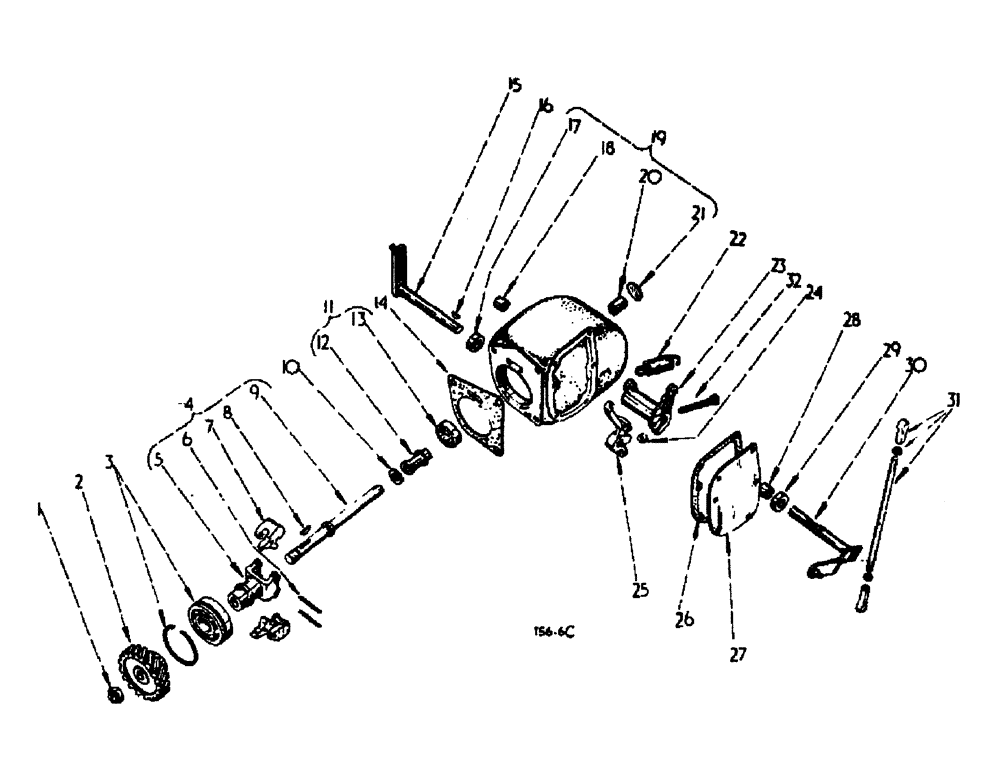

Запчасти Case 500 (12-118) - GOVERNOR UNIT PETROL ENGINE No Description

1

451074

SPARE PART hex jam, 9/16 UNF

1шт.

2

3043832R1

SPARE PART governor, 33T

1шт.

3

703612R91

NO LONGER SERVICED

BEARING governor shaft S.K.F.

1шт.

3

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

governor shaft I.H.C.

1шт.

3

45774D

BALL BEARING

governor shaft N. D.

1шт.

3

700540R91

BALL BEARING

governor shaft fischer

1шт.

3

3040120R91

NO LONGER SERVICED

BEARING governor shaft hoffman, optional

1шт.

4

3043838R91

WEIGHT

and CARRFIER ASSY. governor

1шт.

360535R1

SPARE PART

1шт.

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

45656DA

PIN,6.35mm OD x 38.1mm L

2шт.

3043836R1

SPARE PART

1шт.

3043837R1

SPARE PART

2шт.

5

360535R1

SPARE PART governor weight

1шт.

5

48256DA

CARRIER

CPTE. governor weight, optional

1шт.

6

45656DA

PIN,6.35mm OD x 38.1mm L

governor weight

2шт.

7

3043837R1

SPARE PART governor

2шт.

8

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

9

3043836R1

SPARE PART governor

1шт.

10

3043835R1

SPARE PART governor sleeve thrust

1шт.

11

351910R91

BEARING ASSY

SLEEVE w/bearing ST506, and sleeve 48250D ASSY., governor, and bearing thrust

1шт.

12

48250D

SLEEVE

governor

1шт.

13

ST506

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

governor thrust I.H.C.

1шт.

13

700310R91

SPARE PART governor thrust R and M

1шт.

13

3040121R91

SPARE PART governor thrust S.K.F.

1шт.

13

3040122R91

SPARE PART governor thrust hoffman, optional

1шт.

14

3044212R1

GASKET

governor housing

1шт.

15

3043840R91

SPARE PART w/pin 706204R1 CPTE., governor

1шт.

NSS

NOT SOLD SEPARAT

SPEED CHANGE

1шт.

706204R1

SPARE PART governor speed change lever ball

1шт.

16

106749

KEY

wooodruff, no. 3 1/8 x 1/2

1шт.

17

45667D

SEAL

governor housing

2шт.

17

357968R91

SEAL

governor housing

2шт.

18

392673R91

SPARE PART rockshaft, R.H.

1шт.

19

3043849R11

SPARE PART CPTE. governor

1шт.

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

1шт.

392673R91

SPARE PART

1шт.

48227D

BUSHING

1шт.

41-3014

PLUG,Exp, 7/8"

1шт.

45667D-

OIL SEAL

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

20

48227D

BUSHING

governor housing

1шт.

21

41-3014

PLUG,Exp, 7/8"

expansion, 7/8 dia.

1шт.

22

3045514R1

SPARE PART governor

1шт.

23

3043847R11

SPARE PART w/two pins 48254D CPTE., governor rockshaft

1шт.

3043842R1

SPARE PART head socket, 3/16 -24 x 7/8

1шт.

48254D

SPARE PART thrust governor rockshaft lever

2шт.

115546

WASHER,Int Tooth, #12

1шт.

24

3043843R1

SPARE PART governor rockshaft lever

1шт.

25

3043841R1

SPARE PART governor spring

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex head, 1/4 x 7/8

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

26

3044211R1

GASKET

governor housing cover

1шт.

27

3043833R1

SPARE PART governor housing

1шт.

10958D

SPARE PART governor housing cover

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex head, 5/8 x 3/4

4шт.

103320

LOCK WASHER,5/16"

6шт.

28

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

rockshaft, L.H.

1шт.

29

45667D

SEAL

governor housing

2шт.

29

357968R91

SEAL

governor housing, optional

2шт.

30

3043846R91

LEVER

SPARE PART w/pin 706204R1 CPTE., carburettor control

1шт.

706204R1

SPARE PART carburettor control lever ball

1шт.

31

3070914R91

ROD

CPTE., governor to carburettor control

1шт.

3068537R1

TRUNNION

END rod

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

3070915R1

ROD

carburettor control

1шт.

32

3048289R1

SPARE PART governor spring lever, long

1шт.

109084

NUT,1/4"-20, G5

1шт.
