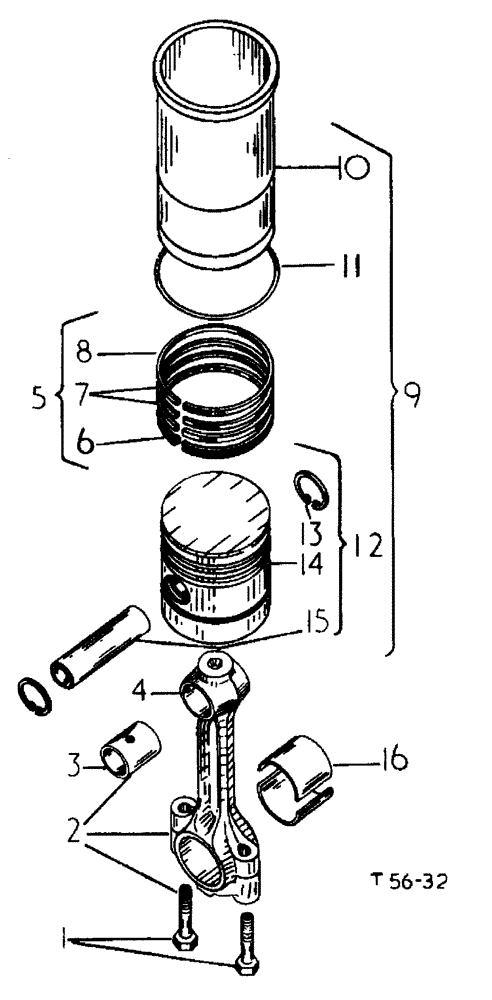

Запчасти Case 500 (12-114) - CONNECTING RODS AND PISTON PETROL ENGINE No Description

1

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

2

3061214R91

PITMAN ASSY.

ROD connecting

4шт.

3043216R1

BOLT,3/8" - 24 x 2"

2шт.

711054R1

BUSH CAP ROD

1шт.

3

711045R1

BUSHING

piston pin

4шт.

3

3043611R1

BUSHING

piston pin, optional

4шт.

4

3061216R91

CONNECTING ROD

CPTE. set of four

1шт.

3061214R91

PITMAN ASSY.

ROD

4шт.

5

3114777R91

RING, SET

piston

4шт.

6

NSS

NOT SOLD SEPARAT

RING oil control piston, not serviced

1шт.

7

NSS

NOT SOLD SEPARAT

RING piston compression, not serviced

4шт.

8

NSS

NOT SOLD SEPARAT

RING compression top, not serviced

1шт.

9

3044201R92

SLEEVE CYLINDER

w/four pistons 3044202R92

1шт.

9

3044202R92

PISTON

w/sleeve CPTE.

4шт.

3044203R93

PISTON

1шт.

704092R1

LINER, ENGINE CYLIND

1шт.

10

704092R1

LINER, ENGINE CYLIND

4шт.

11

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

cylinder sleeve packing

4шт.

12

3044203R93

PISTON

ASSY. pin and rings

4шт.

704094R1

LARGE PIN

SPARE PART PISTON

1шт.

3044207R3

PISTON

PIN

1шт.

3044204R1

PISTON RING

PIN

1шт.

704095R1

SNAP RING,M28, Int

2шт.

3044205R1

PISTON RING

2шт.

705993R1

RING

2шт.

13

704095R1

SNAP RING,M28, Int

piston pin

8шт.

14

3044207R3

PISTON

4шт.

15

704094R1

LARGE PIN

SPARE PART piston STD

4шт.

15

716411R1

HUB

PIN piston .005 undersize, as required

1шт.

16

3070536R11

BEARING

CPTE., connecting rod STD size two halves

4шт.

16

3070537R11

BEARING

CPTE., connecting rod, .030 undersize two halves, as required

1шт.

16

3070538R11

JOURNAL

BEARING CPTE. connecting rod, .015 undersize two halves, as required

1шт.

3070546R91

BEARING LINER

PACKAGE CPTE., connecting rod bearing STD size, as required, not illustrated

1шт.

3070536R100

BEARING, not illustrated

4шт.

3070547R91

CRANKSHAFT BEARING

PACKAGE CPTE., connecting rod bearing, .030 undersize, as required, not illustrated

1шт.

3070537R100

BEARING, not illustrated

4шт.

3070539R91

BEARING LINER

PACKAGE CPTE., connecting rod bearing, .015 undersize, as required, not illustrated

1шт.

3070538R11

JOURNAL

BEARING, not illustrated

4шт.
