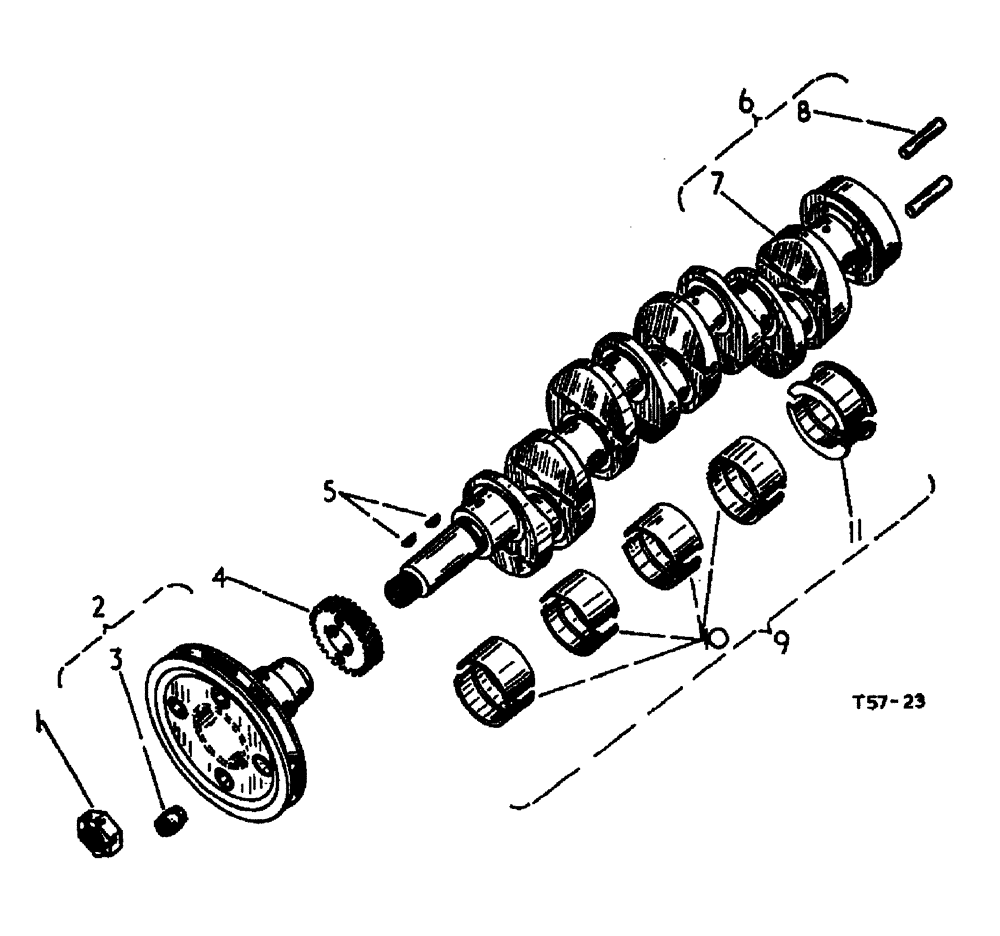

Запчасти Case 500 (12-112) - CRANKSHAFT PETROL ENGINE No Description

1

NLS

NO LONGER SERVICED

lock hex, 1 UNF

1шт.

193-17

LOCK WASHER,Ext Tooth, 1"

1шт.

2

895709H1

PULLEY

w/ four bush 3047545R1 CPTE., fan drive

1шт.

3

3047454R1

BUSHING

fan drive pulley

4шт.

4

703865R1

GEAR

crankshaft 33 teeth

1шт.

5

218211

DRIVING SPROCKET

crankshaft pinion

2шт.

6

3065298R91

SHAFT

CRANK, CPTE.

1шт.

7

3040379R3

CRANKSHAFT

1шт.

8

3065299R1

PIN

flywheel, dowel

2шт.

9

708912R91

CRANKSHAFT BEARING

STD w/ bearing 708910R91, and four 3064523R11, crankshaft main, as required

1шт.

9

708913R91

CRANKSHAFT BEARING

.030 undersize w/ bearing 708911R91, and four bearing 3064524R11, crankshaft main, as required

1шт.

9

708914R91

CRANKSHAFT BEARING

.015 undersize w/ bearing 708915R91, and four bearing 3064525R11, crankshaft main, as required

1шт.

10

3064523R11

CRANKSHAFT BEARING

STD CPTE., front and center, crankshaft main

4шт.

10

3064524R11

BEARING LINER

.030 undersize CPTE., front and center, crankshaft main

4шт.

10

3064525R11

BEARING LINER

.015 undersize CPTE., front and center, crankshaft main, each comprising of one upper and one lower half

1шт.

11

708910R91

BEARING ASSY

STD CPTE. rear, crankshaft main

1шт.

11

708911R91

BEARING ASSY

.030 undersize CPTE., rear

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT main

1шт.

11

708912R91

CRANKSHAFT BEARING

.015 undersize CPTE., rear, crankshaft main, each comprising two halves

1шт.
