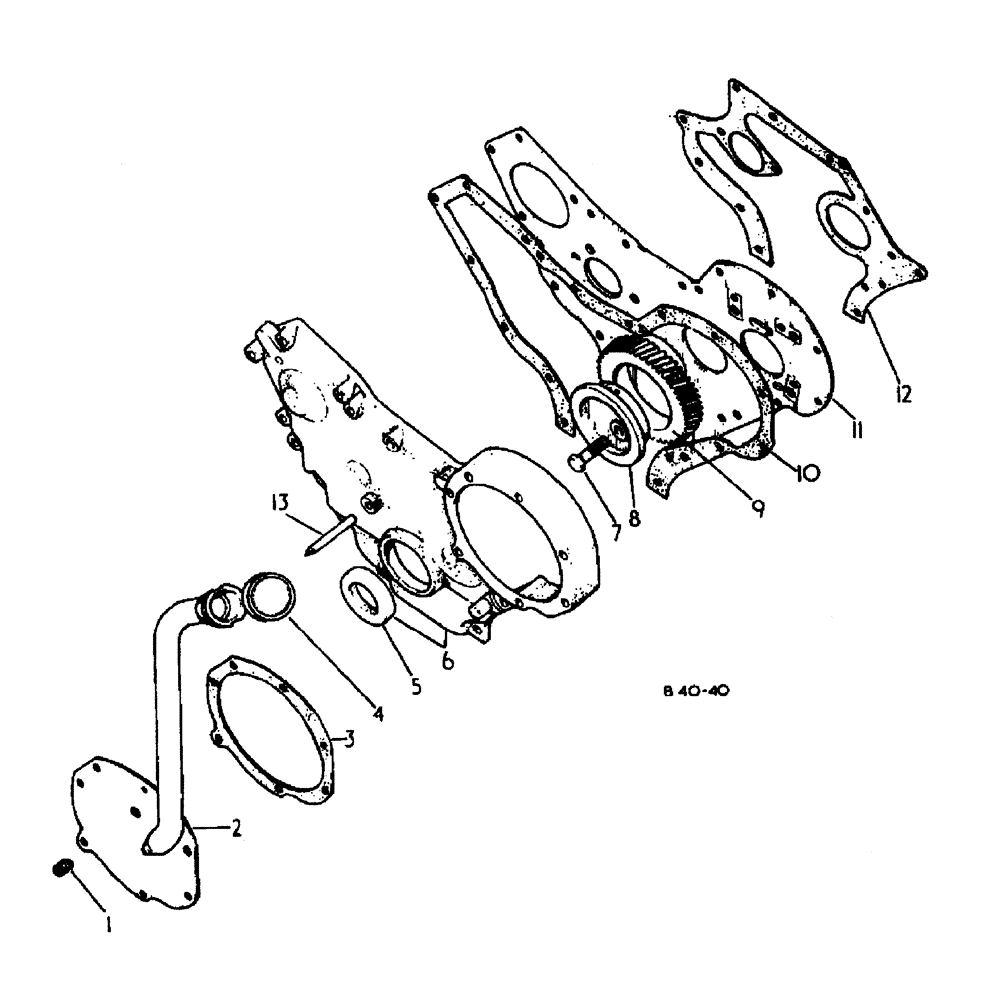

Запчасти Case 500 (12-110) - FRONT COVERS PETROL ENGINE No Description

1

444691

PLUG

cover blanking

1шт.

2

3114618R1

COVER ASSY

oil filter, CPTE.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

6шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

7шт.

3

703849R1

GASKET

INJ pump gear cover

1шт.

4

3049863R91

CAP

oil filter

1шт.

3070882R1

WASHER

paroid

1шт.

5

3108650R91

SEAL

crankshaft, front oil

1шт.

6

895502H1

SPARE PART

COVER front, crankcase CPTE. w/oil seal 3108650R91, and pointer 3067393R1

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

8шт.

7

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

hex head, 1/2 UNF x 1-7/8

1шт.

8

3044191R1

SPARE PART idler gear

1шт.

9

3044190R1

X

GEAR idler

1шт.

10

708285R2

GASKET

crankcase, front cover

1шт.

11

3044164R91

SPARE PART crankcase front CPTE.

1шт.

3047230R1

SCREW

crankcase, front plate

2шт.

12

709903R2

GASKET

crankcase, front plate

1шт.

13

3067393R1

INDICATOR

timing

1шт.
