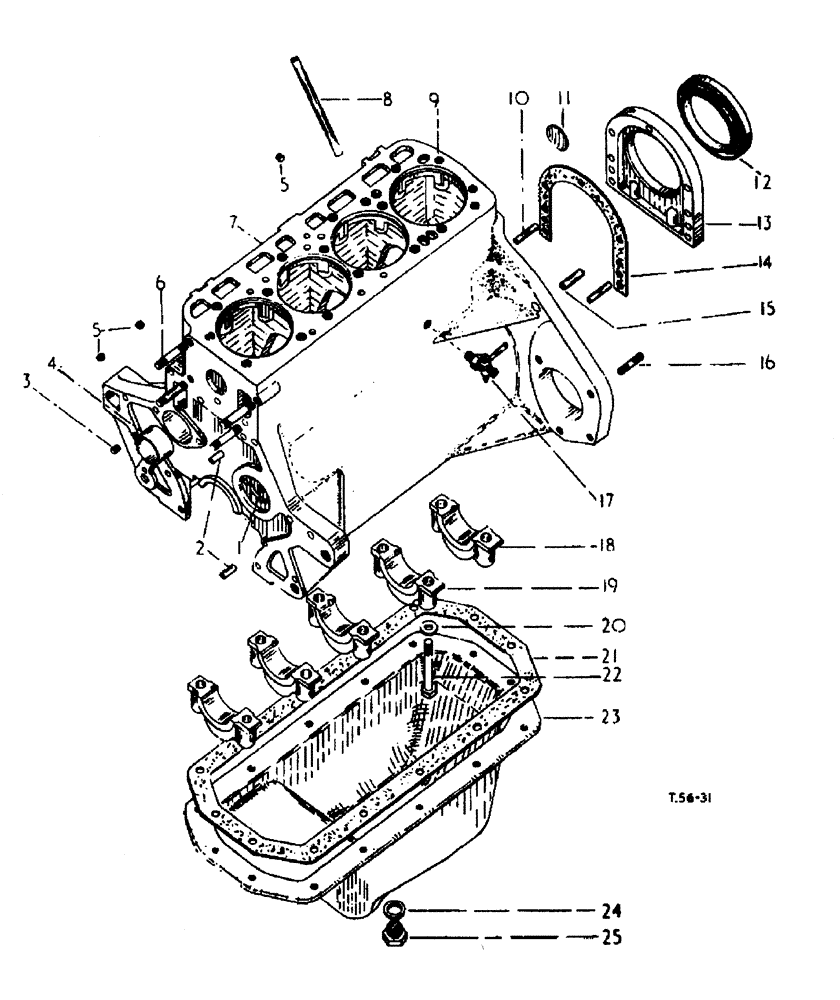

Запчасти Case 500 (12-108) - CRANKCASE AND OIL PAN PETROL ENGINE No Description

1

751610R1

INSERT

idler gear bolt screw lock, 1/2 UNF x 1/2

1шт.

2

37-1616

DOWEL,3/8" x 1"

dowel crankshaft, front

2шт.

3

444691

PLUG

1/4 slotted handles pipe

2шт.

4

703827R1

CAMSHAFT BEARING

camshaft, front

1шт.

4

703828R1

CAMSHAFT BEARING

camshaft, center

1шт.

4

703829R1

CAMSHAFT BEARING

camshaft, rear

1шт.

5

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

3шт.

6

NSS

NOT SOLD SEPARAT

STUD, see water pump

4шт.

7

895707H1

CRANKCASE CPTE.

1шт.

3061211R1

BOLT,1/2" - 13 x 2.875"

10шт.

703827R1

CAMSHAFT BEARING

1шт.

703829R1

CAMSHAFT BEARING

1шт.

703829R1

CAMSHAFT BEARING

1шт.

706491R2

CAP

1шт.

708902R2

BEARING CAP,2.273" ID x 1.1013"

1шт.

751610R1

INSERT

1шт.

751834R1

INSERT

14шт.

141287

DOWEL,1/2" x 1 1/2"

2шт.

37-1616

DOWEL,3/8" x 1"

2шт.

141223

DOWEL,5/16" x 1"

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

3шт.

444691

PLUG

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

703832R1

STUD

4шт.

106794

VALVE

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

3061325R1

WASHER

10шт.

8

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick

1шт.

9

751834R1

INSERT

7/16 - 14, helicoil thread

14шт.

10

141223

DOWEL,5/16" x 1"

dowel crankshaft rear oil seal retainer

2шт.

11

172578

PLUG,Exp, 1 3/4"

1-3/4 dia. type 1 expansion

1шт.

12

3072092R91

OIL SEAL

crankshaft rear

1шт.

13

708904R1

RETAINER

crankshaft rear oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

crankshaft rear oil seal retainer

7шт.

103320

LOCK WASHER,5/16"

7шт.

14

708907R2

OIL SEAL

crankshaft rear oil seal retainer

1шт.

15

141287

DOWEL,1/2" x 1 1/2"

dowel

2шт.

16

703877R1

STUD

starter motor

1шт.

17

444734

PLUG,Sq Hd, 1/4"-18 NPTF

water drain

1шт.

18

708902R2

BEARING CAP,2.273" ID x 1.1013"

crankshaft bearing rear, as required

1шт.

19

706491R2

CAP

crankshaft bearing, as required

1шт.

20

3061325R1

WASHER

crankshaft bearing, cap bolt

10шт.

21

703840R1

GASKET

crankcase PAN

1шт.

22

3061211R1

BOLT,1/2" - 13 x 2.875"

crankshaft bearing, CAP

10шт.

23

3064063R11

SUMP

PAN CPTE. crankcase oil

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

14шт.

24

3405H

GASKET

crankcase PAN drain plug

1шт.

24

3043644R1

WASHER

GASKET crankcase pan drain plug , optional

1шт.

25

445096

PLUG

crankcase pan drain

1шт.
