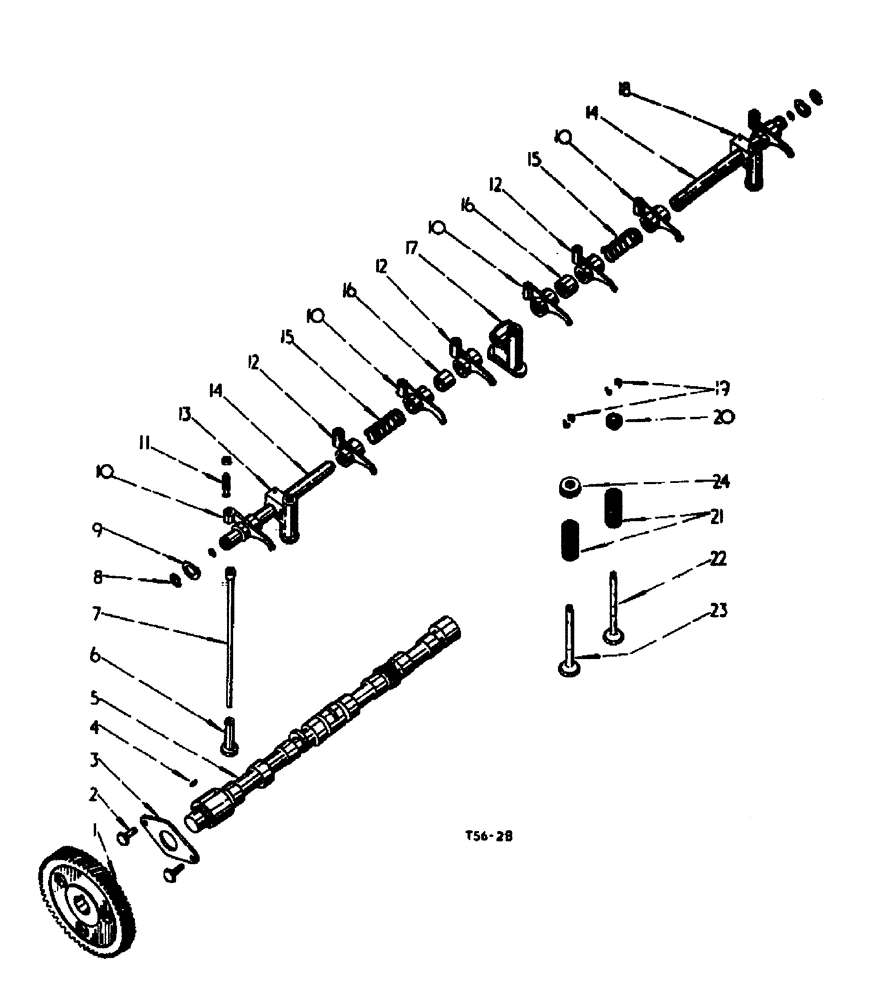

Запчасти Case 500 (12-104) - CAMSHAFT AND VALVE MECHANISM PETROL ENGINE No Description

1

3064085R1

PINION

camshaft /66T

1шт.

2

26058D

SCREW

camshaft thrust plate

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

Type A

2шт.

3

43249D

PLATE

camshaft thrust

1шт.

4

218217

KEY

camshaft gear woodruff

1шт.

5

3064086R91

GEAR

CAMSHAFT ASSY.

1шт.

5

3063934R1

CAMSHAFT

1шт.

6

704782R1

TAPPET

valve

8шт.

7

3044192R1

ROD

valve push

8шт.

8

43375D

RING

valve lever shaft snap

2шт.

9

43374D

SPRING WASHER

valve lever shaft spring

2шт.

10

3073952R1

LEVER

intake and exhaust valve

4шт.

10

3045211R11

LEVER

w/bush 24564DA CPTE., intake and exhaust valve, optional

4шт.

11

3108732R1

ADJUSTMENT SCREW

valve lever adjusting

8шт.

113093R1

NUT valve lever adjusting screw

8шт.

12

3073951R1

LEVER

intake and exhaust valve

4шт.

12

3045210R11

LEVER

w/ bush 24564DA, intake and exhaust valve, optional

4шт.

13

703886R2

SUPPORT

BRACKET front valve lever shaft

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

3/16" x 1 1/4", Type B

1шт.

14

703884R21

CAMSHAFT

w/plug 172528 CPTE. valve lever

2шт.

172528

PLUG,Exp, 9/16"

valve lever shaft end

2шт.

15

45949D

SPRING

valve lever

2шт.

16

703893R2

SPACER

valve lever

2шт.

17

703885R1

SUPPORT

BRACKET center valve lever shaft

1шт.

18

703887R2

SUPPORT

BRACKET rear valve lever shaft

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

3/16" x 1 1/4", Type B

1шт.

19

3049609R1

LOCK

valve spring

16шт.

20

3049610R1

SPARE PART CUP intake spring retainer

8шт.

21

3049608R1

SPRING

valve

8шт.

22

3044174R1

VALVE

intake

4шт.

23

3044175R1

VALVE

exhaust

4шт.

24

356841R91

ROTATOR

ASSY. exhaust valve

4шт.

24564DA

BUSHING

valve lever, not illustrated

8шт.
