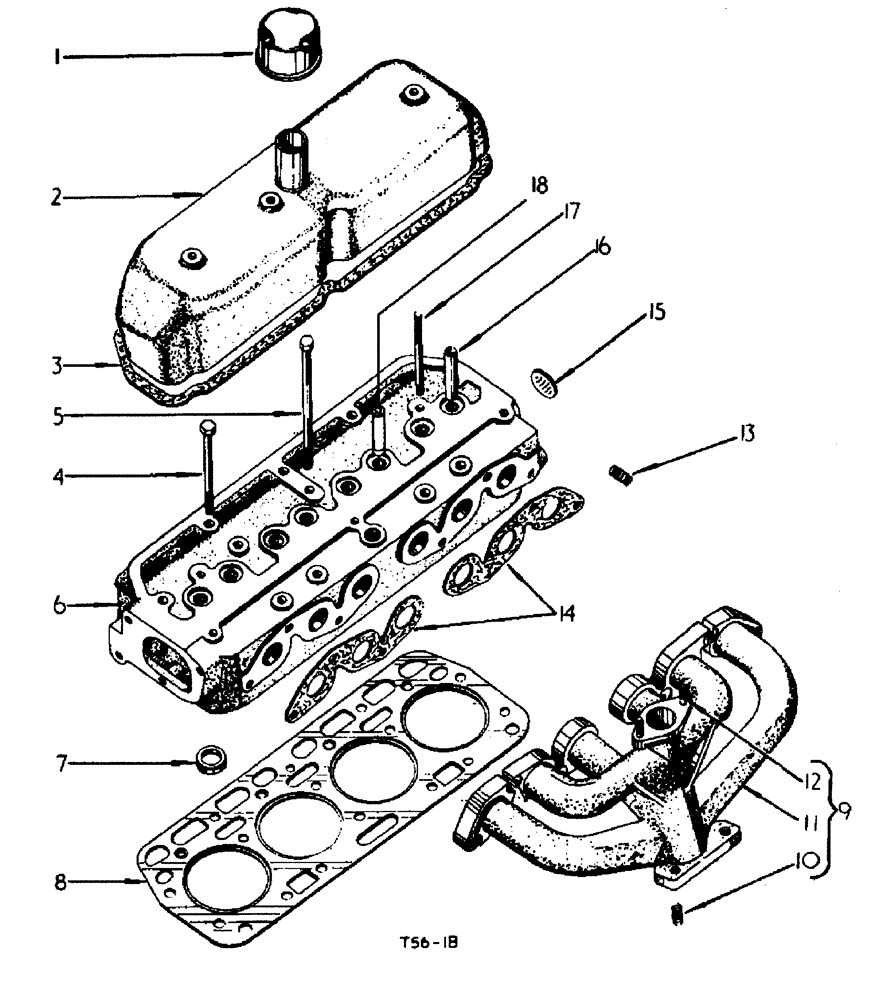

Запчасти Case 500 (12-100) - CYLINDER HEAD AND MANIFOLDS PETROL ENGINE No Description

1

NSS

NOT SOLD SEPARAT

BREATHER CPTE. for components, see list of parts under details air breather

1шт.

2

3064720R1

COVER CPTE., valve housing

1шт.

2

703894R21

COVER

COVER CPTE., valve housing, optional

1шт.

102635

NUT,3/8"-16, G5

2шт.

3

3069767R1

GASKET

valve cover

1шт.

4

708331R1

BOLT

BOLT cylinder head short

13шт.

63116D

WASHER

cylinder head bolt

13шт.

5

708332R1

BOLT,Cyl Hd

cylinder head long

1шт.

63116D

WASHER

cylinder head bolt

1шт.

6

3049604R2

HEAD W/VALVES ASSY. CYLINDER

1шт.

3049610R1

SPARE PART CUP

8шт.

3049605R92

SPARE PART

1шт.

3049609R1

LOCK

16шт.

356841R91

ROTATOR

4шт.

3049608R1

SPRING

8шт.

3044174R1

VALVE

4шт.

3044175R1

VALVE

4шт.

6

3049605R92

SPARE PART LESS VALVES ASSY. CYLINDER, as required

1шт.

3049607R1

GUIDE

4шт.

3044179R1

GUIDE

4шт.

3044181R1

INSERT

4шт.

3060306R1

SPARE PART

6шт.

103884

PLUG,Slotted, 1/4" NPT

3шт.

172574

PLUG,Exp, 1 1/2"

1шт.

703875R1

STUD

2шт.

7

3044181R1

INSERT

valve seat, exhaust

4шт.

8

3045854R1

GASKET

cylinder head

1шт.

9

3060305R11

MANIFOLD

w/three insert 3060306R1, and two STUD 3047734R1, CPTE., intake and exhaust

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex head, 3/8 x 1-3/8

6шт.

103321

LOCK WASHER,3/8"

4шт.

9

24523D

WASHER

intake and exhaust mainfold

2шт.

10

3060306R1

SPARE PART helicoil thread, 3/8

3шт.

11

NSS

NOT SOLD SEPARAT

MANIFOLD INTAKE and EXHAUST, not serviced

1шт.

12

3047734R1

SPARE PART carburettor

2шт.

13

3060306R1

SPARE PART helicoil thread, 3/8

6шт.

14

3044210R1

GASKET

intake and exhaust manifold

2шт.

15

172574

PLUG,Exp, 1 1/2"

expanion 1-1/2 O.D.

1шт.

16

3044179R1

GUIDE

exhaust valve

4шт.

17

703875R1

STUD

rocker shaft and bracket

2шт.

18

3049607R1

GUIDE

intake valve

4шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1/2 pipe square head, used when heat indicator not fitted, not illustrated

1шт.
