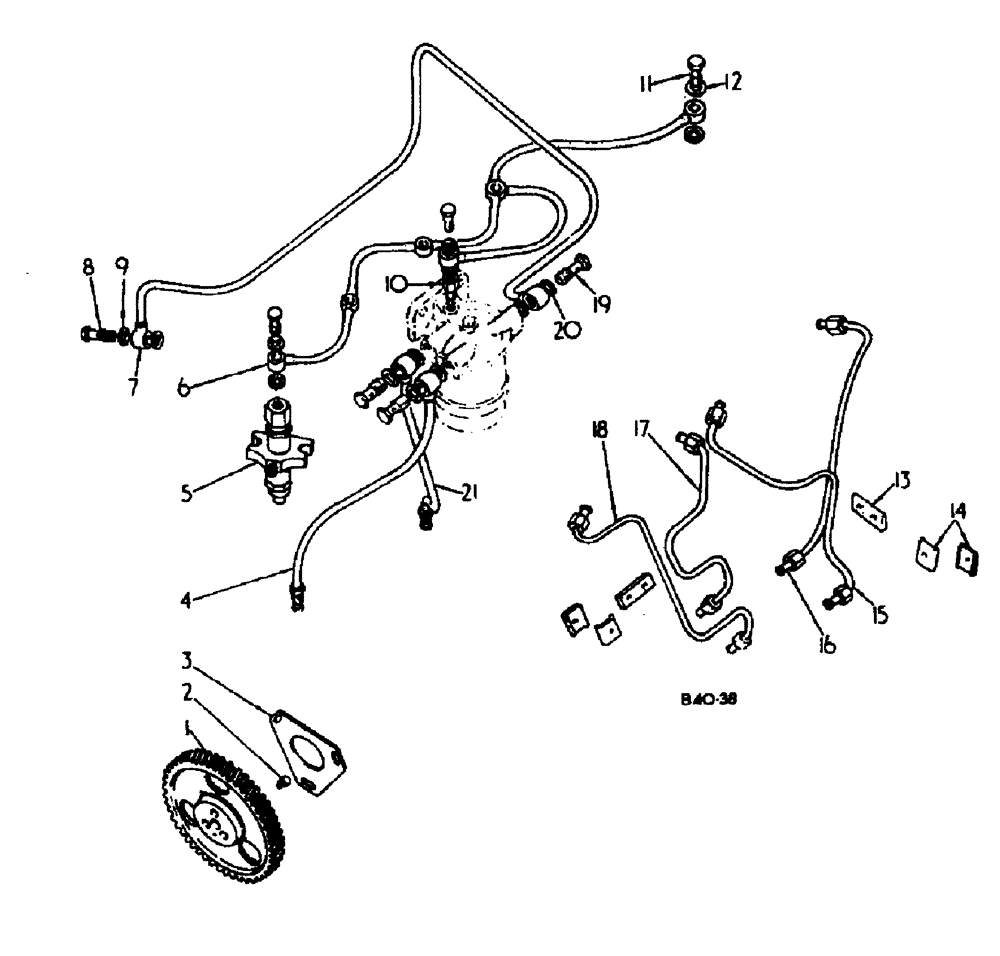

Запчасти Case 500 (12-098) - FUEL INJECTION SYSTEM DIESEL No Description

1

708290R11

GEAR

w/pin 708291R1 CPTE. injection pump

1шт.

425463

SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW

w/lock washer EXT. tooth, hex head, 5/16 UNF x 3/4

3шт.

2

708291R1

DOWEL

pin

1шт.

3

708289R2

GASKET

injection pump

1шт.

4

3043651R91

PIPE

injection pump, to filter excess fuel

1шт.

5

3040870R94

NOZZLE CAP

CPTE. holder for components, see list of parts under details injection nozzle

4шт.

6

3114621R91

SPARE PART

PIPE fuel spill

1шт.

7

3043649R94

PIPE

CPTE. fuel pump, to filter fuel

1шт.

8

708296R1

CONNECTOR, ELEC

CONNECTOR BOLT fuel feed pump banjo

2шт.

9

708297R1

GASKET

WASHER banjo bolt

4шт.

10

795864R91

VALVE

ASSY. ball check

1шт.

3049111R1

SEALING WASHER

w/R92 fuel filter, not required

1шт.

3138812R1

SCREW

connection

1шт.

701735R1

WASHER

2шт.

11

3070933R1

BOLT,5/16" - 18 x 0.88"

banjo

1шт.

12

751876R1

SEALING WASHER

WASHER

2шт.

13

841433R1

INSULATOR BLOCK

RUBBER BLOCK PAD injection pipe clip

2шт.

14

841432R1

CLAMP

CLIP

4шт.

3119161R1

NUT

M5, nyloc

2шт.

3119162R1

SCREW

M5 x 20 mm slotted head cheese

2шт.

15

708309R21

PIPE

CPTE. no. 3, injection

1шт.

16

708310R21

PIPE

CPTE. no. 4, injection

1шт.

17

708308R31

PIPE

CPTE. no. 2, injection

1шт.

18

708307R21

PIPE

CPTE. no. 1, injection

1шт.

19

708296R1

CONNECTOR, ELEC

CONNECTOR BOLT fuel filter banjo

3шт.

20

708297R1

GASKET

WASHER banjo bolt

6шт.

21

3043650R93

PIPE

CPTE. fuel filter to injection pump

1шт.

707321R91

ELECTRICAL WIRE

WIRE SEAL governor, not illustrated

2шт.

3064263R1

SLEEVE

max speed locking, not illustrated

1шт.
