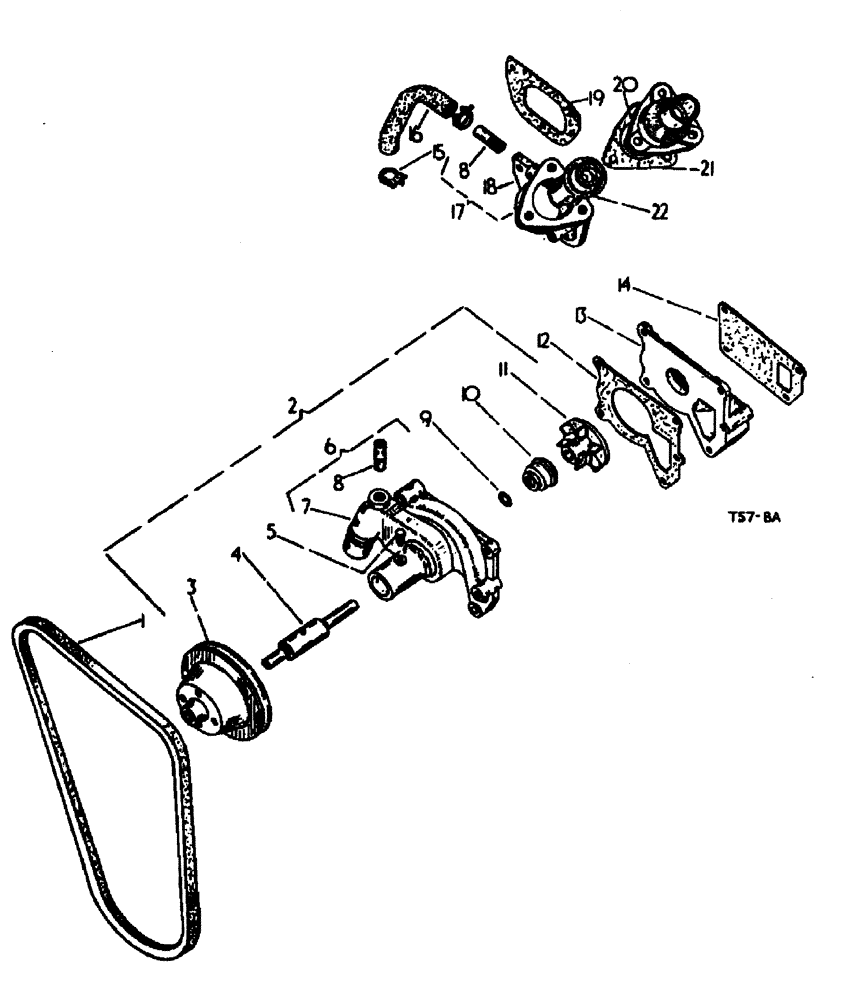

Запчасти Case 500 (12-094) - WATER PUMP AND THERMOSTAT DIESEL ENGINE No Description
№
Артикул
Название
Примечание
Количество
1
3114625R1
BELT,0.50" W
Fan and generator
1шт.
2
3047280R92
SPARE PART
PUMP water CPTE.
1шт.
179846
LEVER
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
1шт.
102635
NUT,3/8"-16, G5
3шт.
103321
LOCK WASHER,3/8"
3шт.
3
3047282R1
PULLEY
drive, fan and generator
1шт.
4
704217R91
NO LONGER SERVICED
BEARING water pump spindle
1шт.
4
3042304R91
BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"
water pump spindle
1шт.
4
3042676R91
CRANKSHAFT BEARING
water pump spindle, optional
1шт.
5
704218R1
BOLT,1/4" - 20 x 1/2"
retainer water pump bearing
1шт.
103319
LOCK WASHER,1/4"
1шт.
6
3047281R1
SPARE PART
BODY WATER PUMP ASSY. w/body 3047281R1, and tube 3065123R1
1шт.
7
3047281R1
SPARE PART
BODY water pump
1шт.
8
3065123R1
TUBE
connecting thermostat by-pass
2шт.
9
704219R2
WASHER
SLINGER water pump spindle leak water
1шт.
10
703822R91
SEAL
water pump
1шт.
11
709909R2
TURBINE
IMPELLER water pump
1шт.
12
3047283R1
GASKET
water pump body
1шт.
13
3047284R1
COUPLING, BREAK AWAY
water pump
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
179849
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
1шт.
16345R1
SPARE PART hex head, 3/8 x 3-3/8 PHC
1шт.
103321
LOCK WASHER,3/8"
4шт.
703832R1
STUD
water pump
4шт.
14
3047285R1
GASKET
water pump, Serial Range: coupling-crankcase
1шт.
15
3074617R1
CLAMP
thermostat by-pass hose
2шт.
16
3065131R1
HOSE
thermostat by-pass
1шт.
17
3065124R11
HOUSING
thermostat CPTE., w/tube 3065123R1, and housing 3065124R1
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
1шт.
18
3065124R1
HOUSING
thermostat
1шт.
19
703815R1
GASKET
thermostat housing
1шт.
20
3065126R1
COVER
thermostat housing
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
3шт.
21
3065125R1
GASKET
thermostat housing cover
1шт.
22
3042303R91
THERMOSTAT
170 deg.-199 deg. F
1шт.
Выбрано товаров: 40
