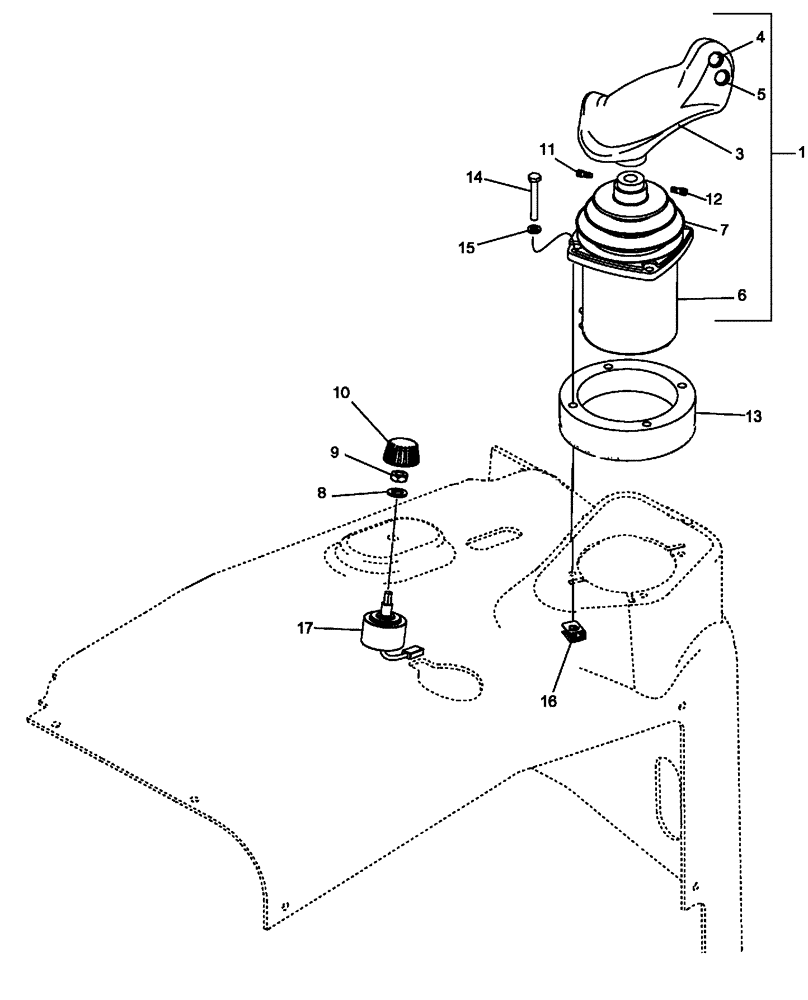

Запчасти Case 650L (29.212.08) - CONTROLS, FORWARD AND REVERSE (29) - HYDROSTATIC DRIVE

1

84231557

JOYSTICK

Incl. Ref 3 - 7, 11, 12; Replaces 87389565

1шт.

1

84231557R

REMAN-JOYSTICK

Reman for New PN 84231557

1шт.

1

84231557C

CORE-JOYSTICK

Return Number

1шт.

87389565

CONTROL

Drive Handle, Forward/Neutral/Reverse (FNR); Inc. 3 - 7, 11, 12

1шт.

84231557R

REMAN-JOYSTICK

Reman for New PN 87389565

1шт.

84231557C

CORE-JOYSTICK

Return Number

1шт.

3

87400253

HANDLE GRIP

Two Button Speed Selection; NSS; Order 84231557

1шт.

4

87416895

SWITCH

Push Button; Up

1шт.

5

87416896

SWITCH

Push Button; Down

1шт.

87389568

CONTROL UNIT

Attaches to Main Harness; Inc. 6,7

1шт.

87389568R

REMAN ELECT CONTROL

650L TIER 3 (2/09-)

1шт.

87389568C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

NSS

NOT SOLD SEPARAT

Base, Drive Control

1шт.

7

87408566

BOOT

Drive Control

1шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

10

187820A1

KNOB

Reverse Ratio Switch

1шт.

11

878-50610

SET SCREW,Hex Skt, M6 x 10mm, Dog Pt

1шт.

12

878-1066

SET SCREW,Hex Skt, M6 x 6mm, Cup Pt

1шт.

13

84215384

SPACER

Drive Control Adapter Plate, ABS Plastic

1шт.

14

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

4шт.

15

892-11006

LOCK WASHER,M6

4шт.

16

76047274

NUT,M6 x 1

4шт.

17

87352928

SWITCH

Reverse Ratio

1шт.
